Call for price

20 faders
Fully assignable layout – 120 fader strips
Harmony UI integrates screen and wrap-around controls
Single 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view

SKU: MX/UNP/A&H18 Category: Digital Mixers

Description
Specification
Brand
Reviews (0)

Firmly established at the leading edge of the new wave of digital consoles, dLive has rapidly earned its reputation for superior audio quality, next generation workflows, stunning FX and faithful processing emulations. dLive C Class presents dLive’s phenomenally powerful XCVI Core, DEEP processing suite and Harmony UI in a compact, portable format, making it the smart choice for corporate AV, multi-purpose venues, houses of worship, theatres and regional rental companies.

dLive C Class remains true to the core dLive design mission to create a digital mixing system that makes the most sophisticated mixing challenges feel elegantly simple. From seasoned audio professional to new recruits, dLive has been crafted to allow the operator to keep their focus on the live mixing experience, not on the mixer.

Now with a thriving ecosystem of apps, software, remote controllers and more, dLive C Class is fully equipped to become the centrepiece of your next project.

dLive Power in a Compact Portable Format

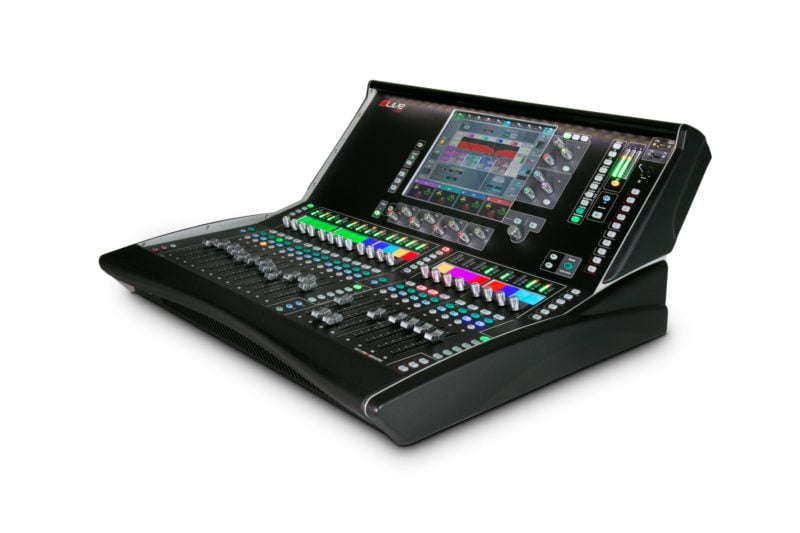

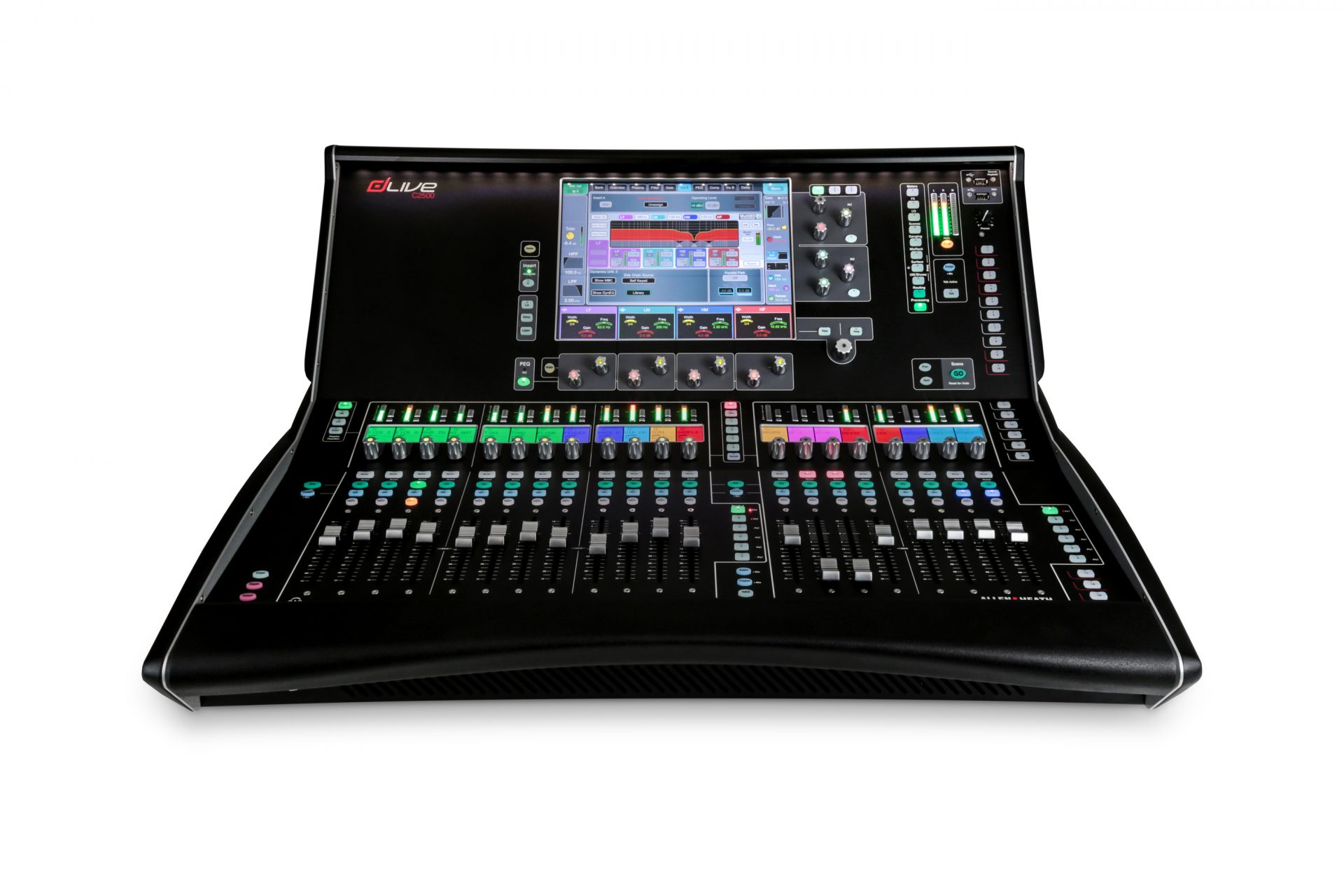

The Allen & Heath dLive C2500 Surface is the epitome of simple. Control your mix with intuitive pinch, swipe, and drag and drop gestures. A 12″ touchscreen, 20 faders, and six assignable one-knob/one-function rotary controls provide you with at-a-glance visual feedback and tactile control of your mix. Assignable inputs, virtual scribble strips, and customizable SoftKeys add to the C2500’s effortless operation. And everything is housed in a compact portable chassis. Harness the full potential of digital mixing with the Allen & Heath dLive C2500.

20 faders
Fully assignable layout – 120 fader strips
Harmony UI integrates screen and wrap-around controls
Single 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view
Configurable widget areas for Scenes, meters, FX and more
3 pages of 6 assignable rotaries
19 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback
6 XLR mic/line in, 6 XLR line out
1 digital st AES3 in, 1 digital st AES3 out

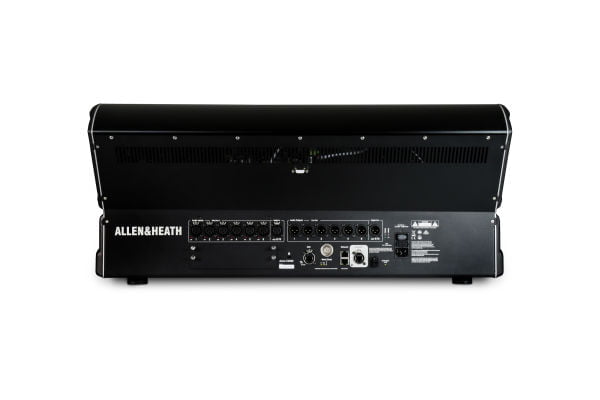

Connection hub
GigaACE gigabit link to MixRack
DX link for I/O expansion
I/O Port – 128 ch 96 kHz
2x Network ports
Wordclock BNC I/O
Video output

Harmony User Interface

Where many digital consoles are still trying to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. C2500’s 12” capacitive touchscreen feels instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect them to. Bespoke ‘widget’ areas can also be set up on the screen to keep track of scenes, meters, FX and other custom controls. The screen is complemented by a set of rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen.

Transparent Workflow

C2500’s layout is fully customisable, allowing the user to create a mixing interface that reflects their own mental map of the show, or for an installer to set up the surface to match the venue and the experience levels of the operators. Throughout the dLive journey our guiding aim has been to create fast and transparent workflows that allow the operator to focus on the mix, not the mixer. Every input or mix can be assigned to any and every bank and / or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and there are 19 assignable SoftKeys, plus 3 pages of 6 assignable rotaries.

Type:dLive Control Surface
Channels:20 channel faders with 6 layers
Inputs – Mic Preamps:6 x XLR (mic/line)
Phantom Power:6 channels
Outputs – Main:6 x XLR
Inputs – Digital:1 x XLR (AES3)
Outputs – Digital:1 x XLR (AES3)
Busses/Groups:64 bus internal architecture
Data I/O:RJ45 (DX5 link), RJ45 (GigaACE link), 2 x Network ports
USB:2 x Type A
Computer Connectivity:USB (2 x 2)
I/O Expansion Slots:1 x Expansion slot (iLive/GLD option cards)
Headphones:1 x 1/4″, 1 x 1/8″
Word Clock:1 x BNC In/Out
Faders:20 x motorized faders
EQ Bands:4-band parametric, graphic EQ
Effects:16 RackExtra FX
Features:Touch screen features pinch, swipe, drag’n drop gestures, 19 assignable soft keys, video out
Screen:12″ touchscreen
Height:12.8″
Depth:26.2″
Width:30.5″
Weight:54 lbs.
