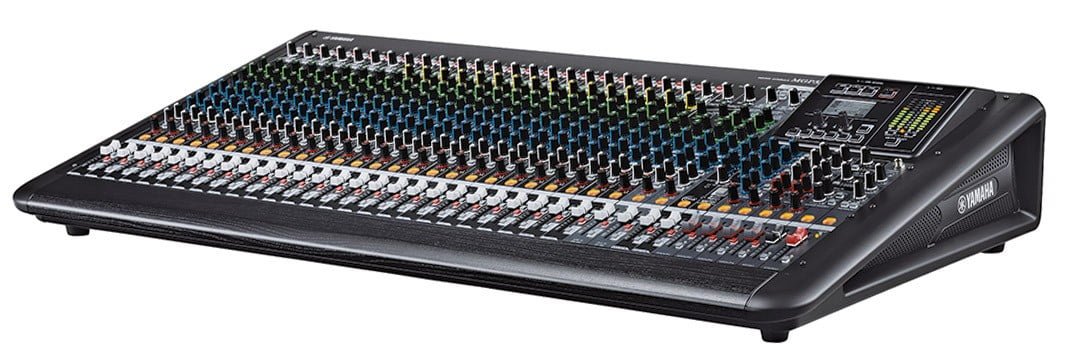

It has been 40 years since the release of Yamaha’s first professional analog mixing console in 1972, the PM200. This year also marks the 25th anniversary of the landmark release of our first ever digital mixer, the DMP7. It is no mere coincidence that, during this momentous occasion, we are introducing a ground-breaking new product that represents a new paradigm for compact professional mixing consoles: the MGP Series.
Drawing from our decades of experience crafting innovative, premium analog gear, we originally developed our new discrete Class-A microphone preamps for professional use in our high-end recording equipment. Utilizing an inverted Darlington circuit design, our newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha’s proprietary X-pressive EQ we’ve managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.
At the heart of the MGP’s compact configuration, we’ve taken an innovative new approach to the utilization of digital technology in an analog mixer; adding high-resolution effects, iPod/iPhone integration and the superb functionality of our new Stereo Hybrid Channel to the warmth and musicality of premium analog sound. The MGP Series represents the ultimate balance of the converging technologies that are the heart and soul of Yamaha’s extraordinary achievements in professional audio.
- 16 Mic Inputs with 48V Phantom Power and HPF per Channel
- 24 Line Inputs (16 mono and 4 stereo)
- 6 AUX Sends 2 FX Sends
- 4 GROUP Buses ST Bus
- 2 Matrix out
- 1 Mono out
When it comes to audio engineering and sound reinforcement, the verdict is in—nothing beats the warmth and musicality of analog sound. By incorporating state-of-the-ar t digital technologies into the development process of our premium professional analog equipment, the MGP is the next step in the evolution of compact professional mixers.
The preamp is where sound creation begins, and ultimately determines the character and quality of your overall mix. The importance of this critical first step inspired us to develop the most fat and warm sounding preamps possible—our newly refined D-PRE mic preamps. Initially intended for use with Yamaha’s high-end recording gear, these studio-grade, discrete Class-A mic preamps employ an inverted Darlington circuit design that features multiple circuitry elements in a multi-layered configuration in order to deliver more power with lower impedance. This means all the character, depth and feel of your original signal will be delivered with fat, natural sounding bass and smooth, soaring highs. Rediscover a favourite mic or trusted instrument by capturing the full range of your musical expression with sound that you don’t hear, so much as feel. With 48V phantom power for each channel and a sound that is incomparable in a compact mixer today, these studio-grade discrete Class-A mic preamps set the MGP apart, clearly defining a class all its own.
Everyone knows vintage EQ sounds great—but not everyone knows why. Throughout the development of the innovative VCM (Virtual Circuit Modeling) effects used in our high-end professional digital mixers, we became increasingly focused on reproducing the warmth and musicality of classic vintage EQs. It was through our precise modeling of the original circuitry of some of the most sought-after EQ modules from the past that we discovered a characteristic “X-shape” of the frequency curves that was unique to these units— and would ultimately prove essential to unlocking real vintage authenticity. More than just a means of tweaking your mix, the precise response and very steep shelving of the high and low frequencies make the X-pressive EQ a powerful sound-shaping tool that essentially redefines the role that EQ plays in sound reinforcement. Never before has an audio engineer’s contribution to the overall sound been so significant, with X-pressive EQ providing complete control of every aspect of your sonic palette.
Originally a Yamaha innovation, 1-knob compression is now a popular feature on an increasing number of compact mixing consoles with good reason. These intelligent compressors add optimally set compression to a wide variety of input sources with the touch of a single control—minus the hassle of setting up and configuring complex outboard gear. The MGP features our newly upgraded 1-knob compressors that feature LED indicators allowing you to visually monitor when the compression “kicks in” on each channel.

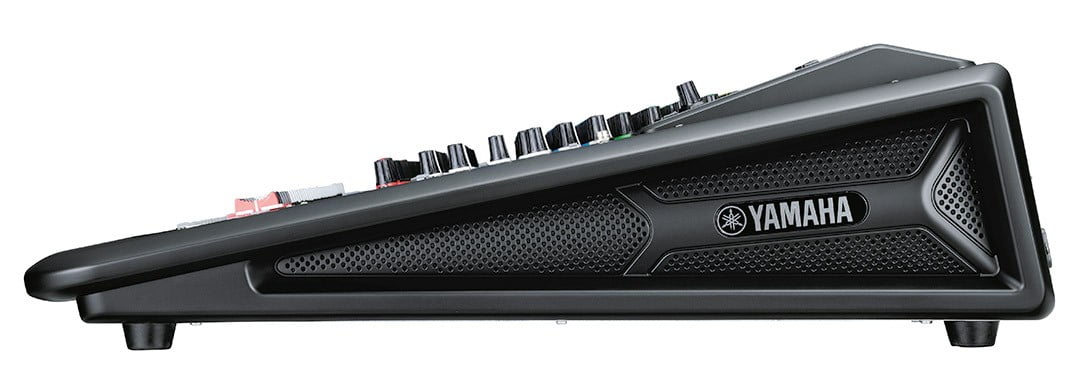

Durability is simply not an issue with the MGP. With a rugged, impact-resistant, powder-coated steel chassis, the MGP is more than ready for the rigours of road abuse. The sleek design of the chassis is contoured for optimal convection cooling, further extending the lifetime of the components inside, while the internal layout separates the power supply from the analog circuitry for superior noise reduction. What’s more, knob control placement above the surface of the chassis ensures that any impact or pressure on the knobs will be absorbed by the chassis and not the circuit board or potentiometers underneath.
Integrated Rack Ears
With integrated rack ears, the MGP easily meets the demands of both installed and portable applications providing safe, stable protection for your console. Extremely durable, their sleek, attractive design instantly gives you the option of a rack-mounted or desk-top configuration, with hassle-free setup saving you time and effort.
Internal Universal Power Supply
You can plug in with confidence in any region with 100V-240V power thanks to our highly-efficient internal universal power supply. With its multi-voltage design, the MGP ensures worry-free operation in potentially damaging environments with fluctuating power levels. An Internal power supply also simplifies rack mounting of the console at installed applications, with no use for a bulky adapter or additional connections.
A Revolution in Digital
The MGP is the realization of a new approach towards the utilization of digital technologies in a mixer, offering simple, analog-style control of sophisticated DSP functions. One of the most compelling features of analog gear is the direct, hands-on, intuitive operation that unites the operator with the console. The MGP sought to keep this feel consistent throughout the design to offer a wealth of functionality, yet with a simple, familiar touch.
40 years of experience working with professional mixers has led Yamaha to offer a new way of approaching sound reinforcement in the digital age: the Stereo Hybrid Channel. Beneath the analog-style knobs and encoders of MGP Series mixing consoles lies a sophisticated digital control system—a fusion that combines traditional analog feel with the functionality that only digital technology can offer. The MGP Series utilizes a powerful, proprietary DSP to provide three essential features that are staples of both installed and live sound applications. In keeping with the theme of analog simplicity found throughout the MGP Series design, each of these functions is readily accessible and available at the touch of a button. Featuring a mid-sweep, three-band EQ for nuanced sound control and high-performance onboard A/D and D/A converters, the Stereo Hybrid Channel offers unique functionality with superior sound.
– Priority Ducker
An invaluable feature for applications that require both public-speaking and background music, Priority Ducker allows a microphone to take priority over another sound source automatically, just by speaking into the mic. Stop talking and the other sound source is brought back to its original level, therefore no console operator is required for this simple yet valuable function. You can even adjust the ducker attenuation of sound source depending on your preferences.
This intelligent compressor “auto levels” different tracks from a sound source that vary in volume, providing a more pleasurable listening experience. Ideal for small events with un-manned operation of your console, Yamaha’s proprietary DSP algorithm allows for extended play time without the worry of fluctuating volume levels distracting your listeners.
– The Stereo Image
The Stereo Image function seamlessly narrows the pan balance of the stereo sound source so that audiences spread over a wide area can enjoy a comfortably blended mix. This is particularly helpful for installed sound applications that requires background music. Using either of the two optimized settings—MONO and BLEND— Stereo Image ensures that everyone is in the “sweet spot” by providing a more optimally mixed sound to the entire space.
Dual Digital Effects
MGP Series mixing consoles offer two separate studio-grade effects processors for ultimate enhancement of your sound, with simple intuitive control. Yamaha’s high-end REV-X reverb offers three very musical and natural high-resolution reverb effects: Hall, Room and Plate—a first for any Yamaha analog mixer. For more sound-shaping possibilities, Yamaha’s renowned SPX digital multi-effect processor provides a useful selection of 16 advanced digital effects with editable parameters. Both processors can be used simultaneously, giving you a vast array of tools to colour your sound.

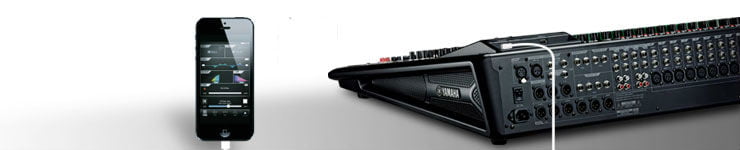

Digital Connectivity for iPod/iPhone
– Integrate Your Apple Devices into Your MGP Sound Experience –
In response to the growing demand for compatibility with iDevices, iPod/iPhone integration with the MGP offers much more than simple playback. With a single connection your Apple device is transformed into a flexible controller, giving you more detailed control of your MGP console.
– MGP Editor
MGP Editor is a free software application that gives you additional control of your console’s DSP settings via your iPod/iPhone. With a simple and intuitive graphic display, MGP Editor gives you additional, detailed control of your REV-X and SPX effects parameters—as well as Hybrid Channel’s Priority Ducker, Leveler and iPod/iPhone’s playback settings.
– High-Quality Digital Playback
The MGP Series mixers feature a built-in USB port to connect and charge your iPod or iPhone for seamless playback with a single connection. A direct digital connection offers a much higher level of quality with more detail and clarity than typical analog inputs can provide.
* MGP Editor can be downloaded from Apple’s App Store at no charge.

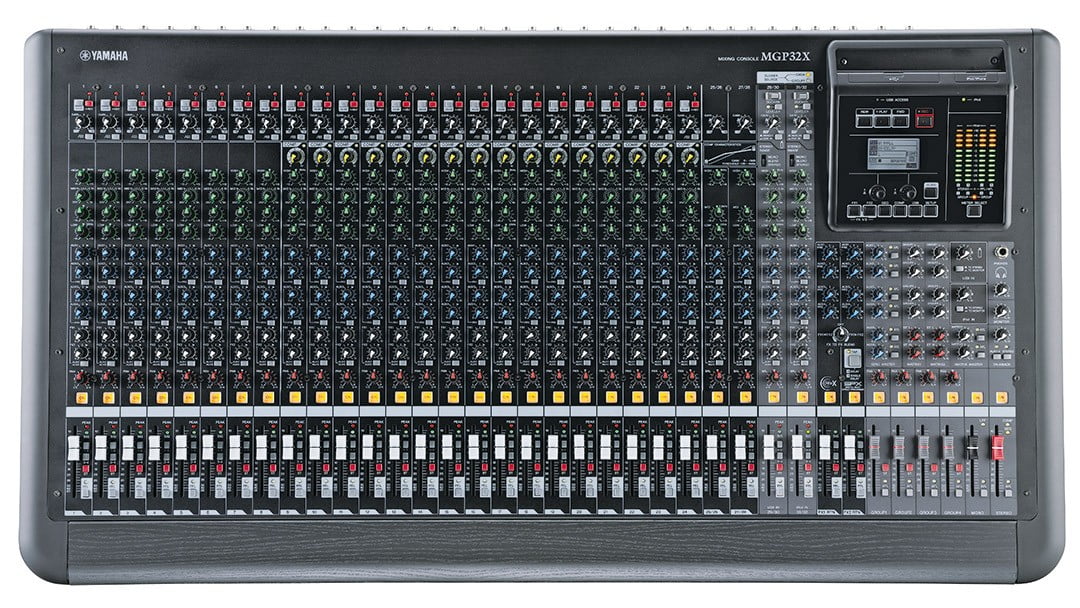

|Mixing capability||Mixing channels||32 Line Inputs (24 mono and 4 stereo)|
|GROUP||4 GROUP Buses ST Bus|
|AUX||6 AUX Sends 2 FX Sends|
|MATRIX||1 Matrix out|
|On-board processors||FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)|
|I/O||Mic inputs||MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)|
|Phantom power||48V phantom power per channel|
|Line inputs||LINE: 24 mono 4 stereo, CH INSERT: 24 RETURN: 1 stereo|
|Digital I/O||USB Device, iPod / iPhone|
|Total harmonic distortion||0.02% (20Hz-20kHz@ 14dBu)|
|Frequency response||0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz|
|Hum & noise level||Equivalent input noise||-128 dBu Equivalent Input Noise|
|Residual output noise||-94 dBu Residual Output Noise|
|Crosstalk||-74dB @ 1kHz|
|Power requirements||100-240V 50Hz/60Hz|
|Power consumption||86W max|
|Net weight||19kg (41.9lb)|
