Large Venue Presentation Solution for Demanding Multimedia Applications

  • Dual-lamp switching technology
  • Interchangeable lenses and color wheels
  • DLP® and BrilliantColor™ technologies for detailed and durable image quality
  • Advanced color and display adjustments
  • 6000 ANSI Lumens of brightness with a 3000:1 contrast ratio
  • Native WXGA (1280×800) and HDTV ready
  • Network-ready for integration and system administration via RJ45
  • Built-in 12V trigger for screen or blinds control
  • 3D ready via DLP Link Technology

Please note,  This product is for body only. Lens is not included. Please call for options.

Tag: Categories: , SKU: PR/DLP/VIV035

Heavy duty dual lamp projector
The Vivitek DW6035 is designed for conference centres and large venue applications. Featuring dual-lamp technology, interchangeable lenses and advanced display technologies. The DW6035 delivers bright, superb digital images with full color saturation.

Intended for the high-end installation and heavy duty applications it can operate 24/7, delivering high brightness of 6000 ANSI Lumens. This WXGA projector delivers vibrant images from a variety of distances. The model features a high contrast ratio of 3000:1 for deep blacks and rich colours. The DW6035 is unmatched in performance and functionalities.

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from.


BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

Dual Lamp

A dual lamp projector is able to display larger/brighter images beyond what a single lamp can produce. Dual lamp technology automatically switches the projector to single lamp mode when one of the lamps goes out, ensuring usage without any interruptions.


High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.

Native Resolution WXGA (1280 x 800)
Brightness 6000 ANSI Lumens
Contrast Ratio 3,000:1
Max. Supported Resolution UXGA (1600 x 1200) @60Hz
Native Aspect Ratio 16:10
Lamp Life and Type 2,000/2,500 Hours (Normal / Eco. Mode), 280W x2
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.65” DMD
Throw Ratio 1.81- 2.38:1 (Std lens)
Image Size (Diagonal) 40″ – 500″ (Std lens)
Projection Distance 1.53 – 26.11 m
Projection Lens F = 1.7 – 1.9 f = 26- 34mm
Zoom Ratio 1.3x (Std lens)
Lens Shift ( Based on Full Image Height) Vertical: 0~50%, Horizontal: /- 10%
Offset ( Based on Full Image Height) Motorized Lens Shift
Keystone Correction Vertical /- 30°
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

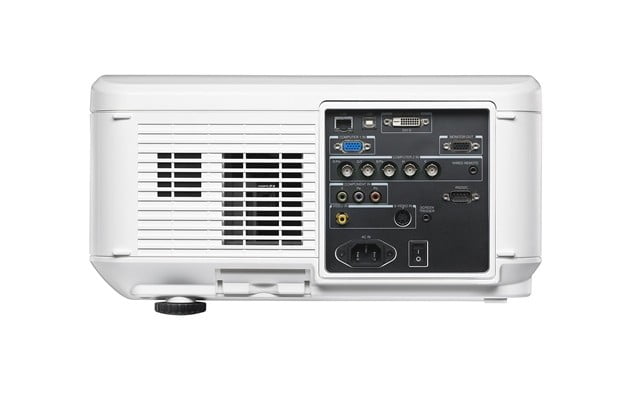

I/O Connection Ports VGA-In (15pin D-Sub), DVI-D, Component (5 BNC) (RGBHV), Component (YPbPr BNC x 3), Component (YPbPr RCA x 3), S-Video, Composite Video, VGA-Out (15pin D-Sub), RJ45, 12v Trigger, RS-232, USB B (1 (Service Only)), Remote Jack(wire remote)
Dimensions (W x D x H) 508 x 389 x 195 mm
Weight 16,5 kg
Noise Level 40dB/34dB (Normal/Eco. Mode)
Power Supply: AC 100-240V Consumption: 715W (Normal Mode) , 580W (Eco. Mode), <0.5W (Eco Standby Mode)
Spare Lamp P/N 3797819700-SVK
3D Glasses P/N 3534257700
Remote Control P/N 5041823400
Standard Accessories VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp P/N: 3797819700-SVK , 3D Glasses P/N: 3534257700 , Remote Control P/N: 5041823400
Warranty Large Venue Warranty: 5 years projector / 1 year on lamp or 1000 hours whichever comes first
UPC Code 814964 339270



Vivitek is a leading manufacturer of visual display and presentation products. The company’s extensive line-up of award-winning digital projection devices incorporates the latest innovations and technologies. The extensive line-up consists of projectors for home cinema, education, large venue and meeting room projectors. Vivitek was the first to launch a full high-definition LED home cinema projector and was among the first to offer the tiny but powerful HD LED Qumi projectors to the mass market consumer, as well as 3D-ready digital projectors featuring DLP link® from Texas Instruments.
