Video Switcher/Scaler.
Inputs; 2xCV, 2xYC, YUV/YPbPr, DVI-D,
DVI-I and Analog RGB/YPbPr Analog: PC to 2048×2048, HDTV to 1080p/60 DVI: PC to 1920×1200, HDTV to 1080p/60 Supports: NTSC, PAL, PAL-M, PAL-N, SECAM Motion Compensation & 3:2 Pulldown Temporal Interpolation & Diagonal Interpolation Automatic Incoming Resolution Detection 4:4:4 Full bandwidth Chroma Sampling Video signal parameter adjustments Integral 4×1 Stereo Audio Routing Switcher RS-232 and IP Interface & Windows Control Panel Variable Image Zoom to 10X and Shrink to 10% Mix, PIP, Chroma/Lumakey, Genolock & Edge Blending on models C2-2250A and C2-2255A Optional IR Remote Control Unit Optional Single/Dual
Rackmount Kit Optional
Input Expansion with S2 Switchers
- Inputs: 2xCV, 2xYC, YUV/YPbPr, DVI-D, plus SD/HD-SDI on models C2-2205A and C2-2255A
- Outputs: DVI-I and Analog RGB/YPbPr (All units)
- Analog: PC to 2048×2048, HDTV to 1080p/60
- DVI: PC to 1920×1200, HDTV to 1080p/60
- Supports: NTSC, PAL, PAL-M, PAL-N, SECAM
- Motion Compensation & 3:2 Pulldown
- Temporal Interpolation & Diagonal Interpolation
- Automatic Incoming Resolution Detection
- 4:4:4 Full bandwidth Chroma Sampling
- Video signal parameter adjustments
- Integral 4×1 Stereo Audio Routing Switcher
- RS-232 and IP Interface & Windows Control Panel
- Variable Image Zoom to 10X and Shrink to 10%
- Mix, PIP, Chroma/Lumakey, Genolock & Edge Blending on models C2-2250A and C2-2255A
- Optional IR Remote Control Unit
- Optional Single/Dual Rackmount Kit
- Optional Input Expansion with S2 Switchers
C2-2200A Video Switcher/Scaler is based on TV One’s
exclusive CORIO®2 technology and provides high
quality conversion from Composite, S-Video (YC), YUV,
YPbPr, RGB or DVI to analog RGB/YPbPr and DVI at
virtually any resolution and refresh rate. An analog
computer input signal bypass (loop-thru) is also
provided. NTSC, PAL, PAL-M, PAL-N, SECAM input
standards are supported. The C2-2205A provides an
SD/HD-SDI Input as well as all the other features of the
C2-2200A.
All settings are stored in non-volatile memory and are
retained even when power is switched off. Ten user
defined presets are also available to customize settings
for various applications. All the functions can be
controlled via the front panel Push Buttons, Infrared, RS-
232 or IP. The CORIOtools Suite integrates fully with the
unit. Windows Control Panel software is provided and
most third party control systems interface directly with
the entire C2 range of products. A front panel LCD
makes setup easy. The unit is housed in a desktop case
and an optional rackmount kit holds one or two units.
Variable Zoom to 10X enlarges any part of the computer
screen to fill the entire video screen and position controls
allow movement to any area desired. Variable Shrink to
as little as 10% allows fitting the image onto most
displays. The high sampling rate ensures crisp, clear
images, while full bandwidth chroma sampling ensures
faithfully reproduced, high resolution colors. Motion
compensation, diagonal interpolation and a 3:2 Pulldown
feature for NTSC significantly improve the image quality.
Temporal interpolation greatly improves frame rate
conversion by analyzing and merging successive
frames. Pixel Level Motion Adaptive Diagonal
Interpolation ensures high quality de-interlacing of PAL
and NTSC signals.

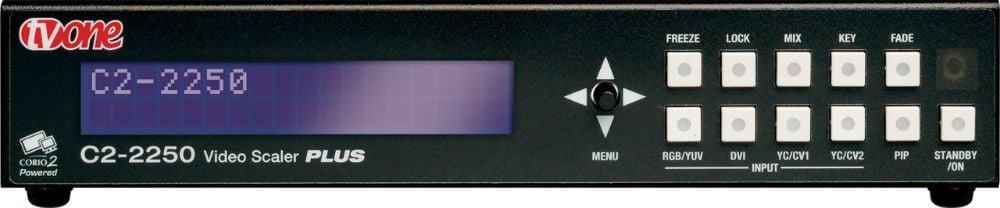

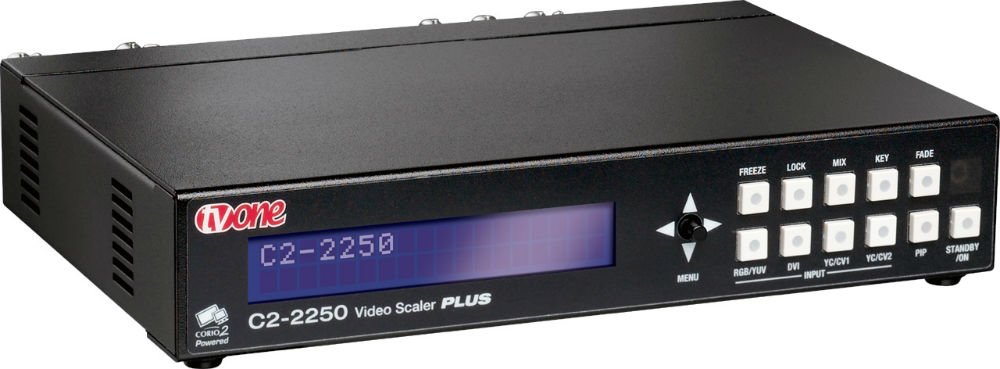

C2-2250A Advanced Features – In addition to all
standard C2-2200A features. The Key Mode allows
computer graphics to be keyed over an external
Composite or YC signal. The keyed image may be faded
in and out. Due to the 4:4:4 sampling format, precise
keying at the pixel level can be achieved. The Mix Mode
permits Seamless Cut, Fade or Wipe transitions
between input sources. The PIP Mode allows either of
the computer inputs to be inset in a window over the
other inputs.The PIP window may be placed anywhere
on the screen. The Edge Blending feature allows
feathering any or all of the edges; multiple images can
be aligned vertically, horizontally, or both to create
unusual displays. Using multiple units, any number of
images can be blended. Gamma correction is employed
to compensate for many of the problems faced when
blending projectors. Special preparation of the video in
advance is not necessary, since all processing is done
within the unit. The Genlock feature ensures precise
synchronization of the incoming signals. The C2-2255A
provides an SD/HD-SDI Input as well as all the other
features of the C2-2250A

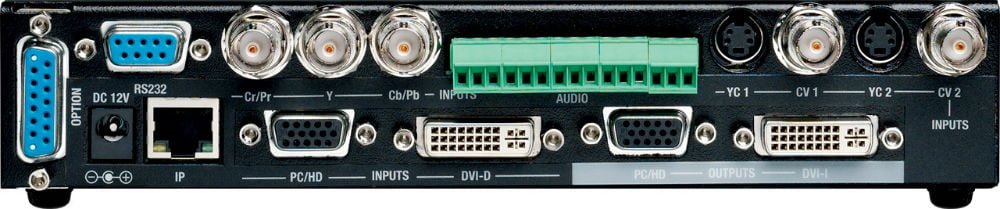

Video Inputs
Television Standards NTSC, PAL, PAL-M, PAL-N, SECAM
Composite Video 2x via BNC
YC (S-Video) 2x via 4-Pin Mini-DIN
YUV /YPbPr 1x via 3-BNC
SD/HD-SDI 1x via BNC (C2-2205A, 2255A)
Computer Inputs
Signal Type 1x DVI-D via DVI-I Connector
1x Analog via HD-15 Female
Format RGBHV, RGBS, RGsB, YPbPr
Sync TTL Level, 10KĂ, Pos or Neg
Termination 75Ă
R-G-B Level Range 0.5-2.0 Vp-p
Scan Rate Detection Automatic
PC Resolutions Any up to 2048×2048
HDTV Resolutions Any up to 1080p
Max Horiz Scan Rate 150KHz
Computer Compatibility PC, Macintosh, Workstations
Computer Outputs
Signal Type 1x DVI-I via DVI-I Connector
1x Analog via HD-15 Connector
Format RGBHV, RGBS, RGsB, YPbPr
R-G-B Level 0.7 Vp-p
Analog Signals PC to 2048×2048,HD to 1080p/60
DVI Signals PC to 1920×1200,HD to 1080p/60
Vertical Refresh Rate Any to 250Hz
General
Size and Position Automatic via AutoSet or Manual
Image Size User-Definable Presets
Image Freeze One Video Frame
Settings Memory Non-Volatile
Zoom Range Variable to 10X Zoom
Shrink Range Variable to 10%
Image Mirroring Horizontal and/or Vertical
Horizontal Filtering Full Digital
Conversion Technology Proprietary ¡V CORIOR2
Frame Rate Conversion Temporal
Color Resolution 24-bit (16.8 Million Colors)
Sampling Rate 162MHz
Digital Sampling 24-bit, 4:4:4 format
Firmware Memory Flash, Upgradeable via RS-232
Video Decoder 9-bit Digital
De-Interlacing
(NTSC-PAL)
Pixel-level Motion Adaptive,
Diagonal Interpolation
Comb Filter Decoding Adaptive
Film Mode (NTSC) 3:2 Pulldown
Video Adjustments
CV/YC: Contrast, Brightness,
Saturation, Hue (NTSC).
Analog RGB/YPbPr levels
Audio Input/Output (Note 1)
Inputs 4x Unbalanced via Terminals
Output Unbalanced via Terminals
I/O Impedance Impedance-Independent
Operational Modes (C2-2250A, 2255A)
Key Chromakey or Lumakey
Mix PC to/from Video
PIP Variable Window Size & Position
SD-SDI Input Vertical Rates (C2-2205A, 2255A)
SMPTE259M-C
525i (720×488) 59.94Hz
625i (720×576) 50 Hz
HD-SDI Input Vertical Rates (C2-2205A,2255A)
SMPTE292M
720p (1280×720) 23.98, 24, 25, 29.97, 30, 50,
59.94, 60Hz
1035i (1920×1035) 59.94, 60Hz
1080i (1920×1080) 50, 59.94, 60Hz
1080p (1920×1080) 23.98, 24, 25, 29.97, 30Hz
Control Methods
Local via Front Panel Buttons & OSD
RS-232 Interface via D9 Female Connector
IP Interface via RJ45 Connector
Infrared Remote via optional IRC-5 Remote Unit
Input Expansion Control via D-15 Options Connector
Warranty
Limited Warranty 5 Years Parts and Labor
Regulatory Compliance
Main Units FCC, CE, RoHS
Power Supplies UL, CUL, CE, PSE, GS, RoHS
Mechanical
Size (H-W-D) 41.5x218x150mm(1.63¡¨x8.6¡¨x5.9¡¨)
Weight (Net) 1.32kg (2.90 lbs)
Environmental
Operating Temperature 0„ato 50„aC ( 32„ato 122„aF)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -10„ato 70„aC ( 14„ato 158„aF)
Storage Humidity 10% to 85%, Non-condensing
Power Requirement
External Power Supply 12VDC@1.5A (Note 2)
Accessories Included
1x Operations Manual
1x Power Adapter US, UK, Euro or AU
Product Item Numbers
C2-2200A Basic Version
C2-2205A Basic Version with SD/HD-SDI In
C2-2250A PLUS Version with Key, Mix, PIP
C2-2255A PLUS Version with SD/HD-SDI In
and Key, Mix, PIP
Optional Accessories
RM-220 Single/Dual Rackmount Kit
IRC-5 Infrared Remote Control Unit
S2 Series Input Expansion Switchers
Control Software Downloadable form Website
Notes
(1) Balanced Audio (6-inputs) and Audio Delay is available
via the S2-106AD accessory.
(2) The C2 unit uses less than 1A,
