10−input ProScale™ Presentation Switcher with Preview & Program Outputs

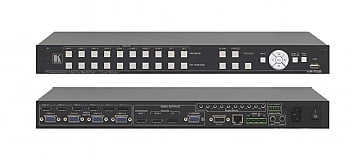

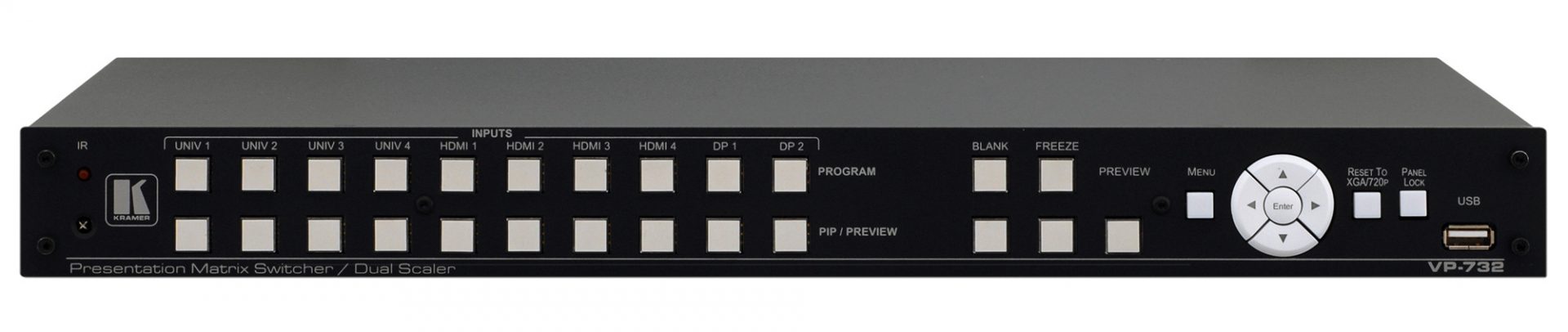

The VP−732 is a 10−input presentation switcher/dual scaler with four HDMI, two DisplayPort and four user−definable (universal) analog video inputs. It up− and down−scales to selectable graphics or HDTV output resolutions to preview and program outputs (up to 4K UHD on the program output) and provides ultra−fast fade−thru−black switching between sources. VP−732 supports analog and embedded audio inputs and outputs and includes rich audio functionality and a stereo loudspeaker output.
Kramer’s PixPerfect™ Scaling Technology – Kramer’s precision pixel mapping and high quality scaling technology.
Fast Fade-Thru-Black (FTB™) Switching – For smooth, glitch−free switching. The output signal provides constant sync so the display never glitches.
K-IIT XL™ Picture-in-Picture Image Insertion Technology – Ultra−stable picture−in−picture, picture−and−picture, and split screen capability. Any input source can be inserted into or positioned next to any other source or vice versa with window positioning and sizing controls.
Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging
Any application where high-quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes
|INPUTS:||4 HDMI connectors, 4 universal (composite, s−Video, computer graphics and component) on 15−pin HD connectors, 2 DP connectors, 1 USB connector, 1 S/PDIF on an RCA connector, 10 unbalanced stereo audio on 3.5mm mini jacks.|

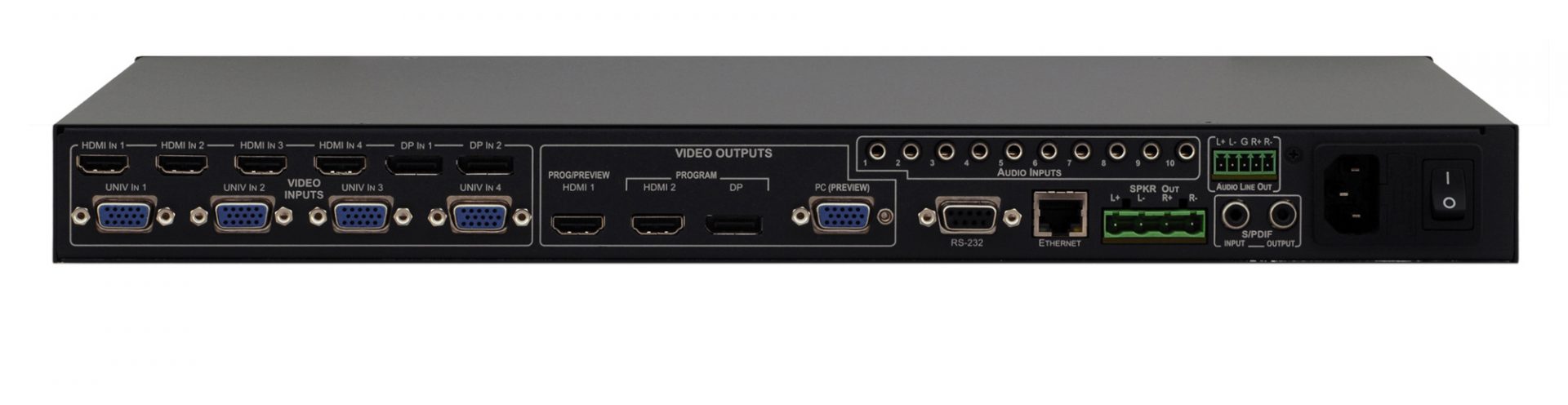

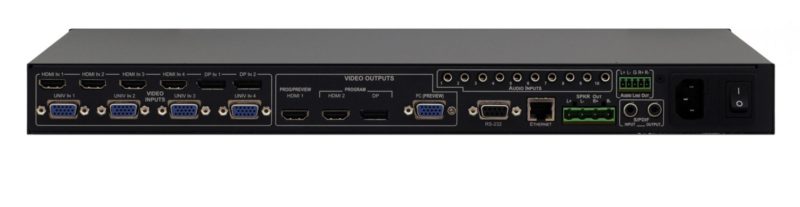

|OUTPUTS:||2 HDMI connectors, 1 DP connector, 1 PC (computer graphics) on a 15−pin HD connector, 1 balanced audio stereo output on a 5−pin terminal block ( 4dBu nominal), 1 stereo speaker output (10W per channel into 8Ω) on a 4−pin terminal block connector, 1 digital S/PDIF output on an RCA connector.|
|COMPLIANCE WITH HDMI STANDARD:||Supports HDMI and HDCP.|
Native HDMI1, Native HDMI2, Native DP, Native VGA, 640x480x60Hz, 640x480x75Hz, 800x600x50Hz, 800x600x60Hz, 800x600x75Hz, 1024x768x50Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x768x50Hz, 1280x768x60Hz, 1280x720x60Hz, 1280x800x60Hz, 1280x1024x50Hz, 1280x1024x60Hz, 1280x1024x75Hz, 1366x768x50Hz, 1366x768x60Hz, 1400x1050x50Hz, 1400x1050x60Hz, 1600x900x60Hz (R), 1600x1200x50Hz, 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz, 1920x1200x60Hz (R), 2048x1080x50Hz, 2048x1080x60Hz, 3840×2160@24Hz, 3840×2160@25Hz, 3840×email@example.comHz, 3840×2160@30Hz, 4096×2160@24Hz, 480px60Hz, 576px50Hz, 720px50Hz, 720px60Hz, 1080i/1080px50Hz, 1080i/1080px60Hz, 1080px50Hz, 1080px60Hz, 1080px24Hz, 480px59.94Hz, 720px59.94Hz, 1080i/1080px59.94Hz, 1080px23.98, 1080px29.97, 1080px59.94, Custom 1 to Custom 4
Single Picture, 640x480x60Hz, 640x480x75Hz, 800x600x50Hz, 800x600x60Hz, 800x600x75Hz, 1024x768x50Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x768x50Hz, 1280x768x60Hz, 1280x720x60Hz, 1280x800x60Hz, 1280x1024x50Hz, 1280x1024x60Hz, 1280x1024x75Hz, 480px60Hz, 576px50Hz, 720px50Hz, 720px60Hz, 480px59.94Hz, 720px59.94Hz, Custom 1 to Custom 4.
|CONTROL:||Front panel buttons/OSD, IR remote control, RS−232 on a 9−pin D−sub connector, Ethernet.|
|ADDITIONAL CONTROLS:||Picture−In−Picture, Picture−and−Picture or Split Screen (two images side−by−side); separate program/preview freeze and zoom, different selectable vertical refresh rates, Video and Audio ProcAmp control, output image scaling and aspect ratio change, EDID capture.|
|POWER SOURCE:||100−240V AC, 50/60Hz, 49VA.|
|OPERATING TEMPERATURE:||0° to 40°C (32° to 104°F).|
|STORAGE TEMPERATURE:||−40° to 70°C (−40° to 158°F).|
|HUMIDITY:||10% to 90%, RHL non−condensing.|
|PRODUCT DIMENSIONS:||19″ x 9.34 x 1U (43.6cm x 23.72cm 4.36cm) W, D, H|
|PRODUCT WEIGHT:||2.5kg (5.4lbs) approx.|
|SHIPPING DIMENSIONS:||52.50cm x 33.00cm x 10.70cm (20.67″ x 12.99″ x 4.21″ ) W, D, H|
|SHIPPING WEIGHT:||3.4kg (7.5lbs) approx.|
|INCLUDED ACCESSORIES:||Rack “ears”, IR remote control, power cord.|
