The TOA F-series are compact and discrete, they deliver a clear sound, able to engage the congregation for both speech and music.
Can be wall, ceiling or tripod mounted – bracket included
Low impedance and 100v line versions available

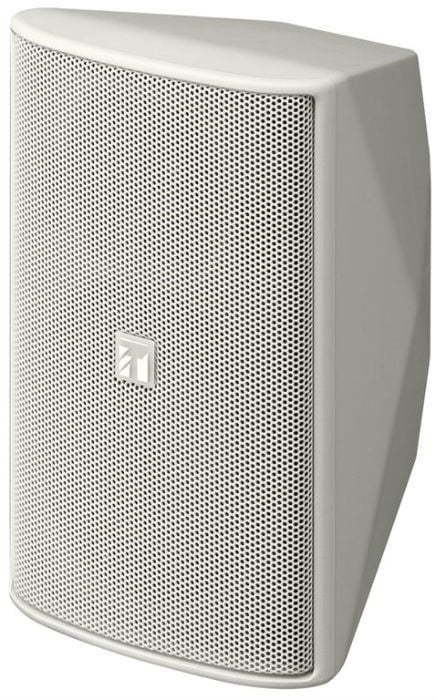

The TOA F-1000 and F-2000 Series comprise a two-way speaker line of compact units offering wide frequency response and higher, more powerful performance. These highly adaptable speaker systems are intended to meet the requirements of a wide range of venues and applications, both indoors and outdoors.
For clear, wide-area sound coverage, the Series include Octagon Horn wide dispersion-angle (110 x 100 degree on the F-2000 and 90 x 90 degree on the F-1000) high-frequency horns, plus an easily-added 80 x 80 degree dispersion angle horn adapter on the F-2000 for tighter dispersion control.
Both highimpedance and low-impedance models are available. Low impedance models come with separate HF and LF protection circuitry. High impedance models have a rear-panel rotary control for making impedance settings that optimally match amplifier and speaker performance.
The speaker units have a design that combines stylishness and a high degree of performance-enhancing rigidity. Even the decor-enhancing convex bulge on the side of the casing serves to improve rigidity. Brackets for easy speaker-stand, wall and ceiling installation are included, and there are also optionally available brackets for more challenging installation venues and sound reinforcement applications. Push-in terminals make connections quick and easy, and there are models for outdoor use that meet IP-X4 splash-proof standards.
110 x 100 degree (F-2000) and 90 x 90 degree (F-1000) dispersion angle high-frequency horns (Octagon Horn) ensure an enhanced sound coverage area and a more even balanced tone.
Easily-mountable 80? x 80? dispersion angle horn adapter included on the F-2000 for increased dispersion control.
Waterproof design with anticorrosive punching net and terminal cover, meeting IP-X4 splash-proof ratings, available on models F-1000BTWP/WTWP and F-2000BTWP/WTWP.
All speaker models are repaintable.
Low impedance models have high and low frequency filter and protection circuitry.

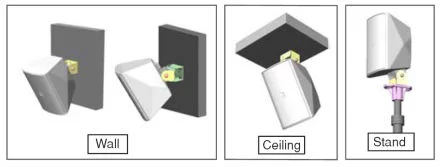

Included accessory brackets allow a wide choice of installations on walls and ceilings.
Optionally available brackets meet an even wider variety of installation demands.
Stylish and highly rigid casing design for attractive installation
with clearer sound reproduction.
Enclosure Type Bass-reflex type
Power Handling Capacity 30W(continous pink noise) 90W (continous program)
Sensitivity 87dB (1w,1m)
Frequency Responce 85-20,000Hz
Crossover Frequency 5kHz
Directivity Angle Horizontal 90 degree, vertical 90 degree
Speaker Componenrs Low frequency 10 cm cone type. High Frequency, Balanced dome tweeter

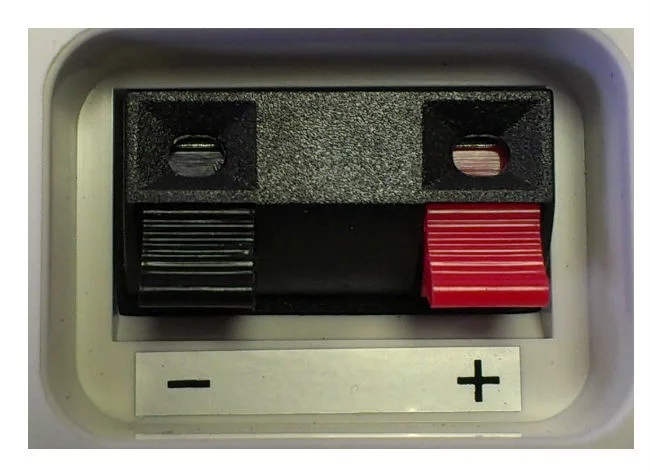

Input Terminals Push-in terminal
Finish HIPS, black
Dimensions 130(W) x 202(H) x 131(D)mm
Weight 1.8 kg (3.97 lb) (including the supplied brackets)
Accessories: Speaker bracket 1, Joint bracket 1, Wall bracket 1, Bracket fixing screw 1 set
