Tascam DR-05X

  • Home
  • DM Shop
  • Sound / PA
  • Record & Playback
  • Digital / MP3 Recorders
  • Tascam DR-05X

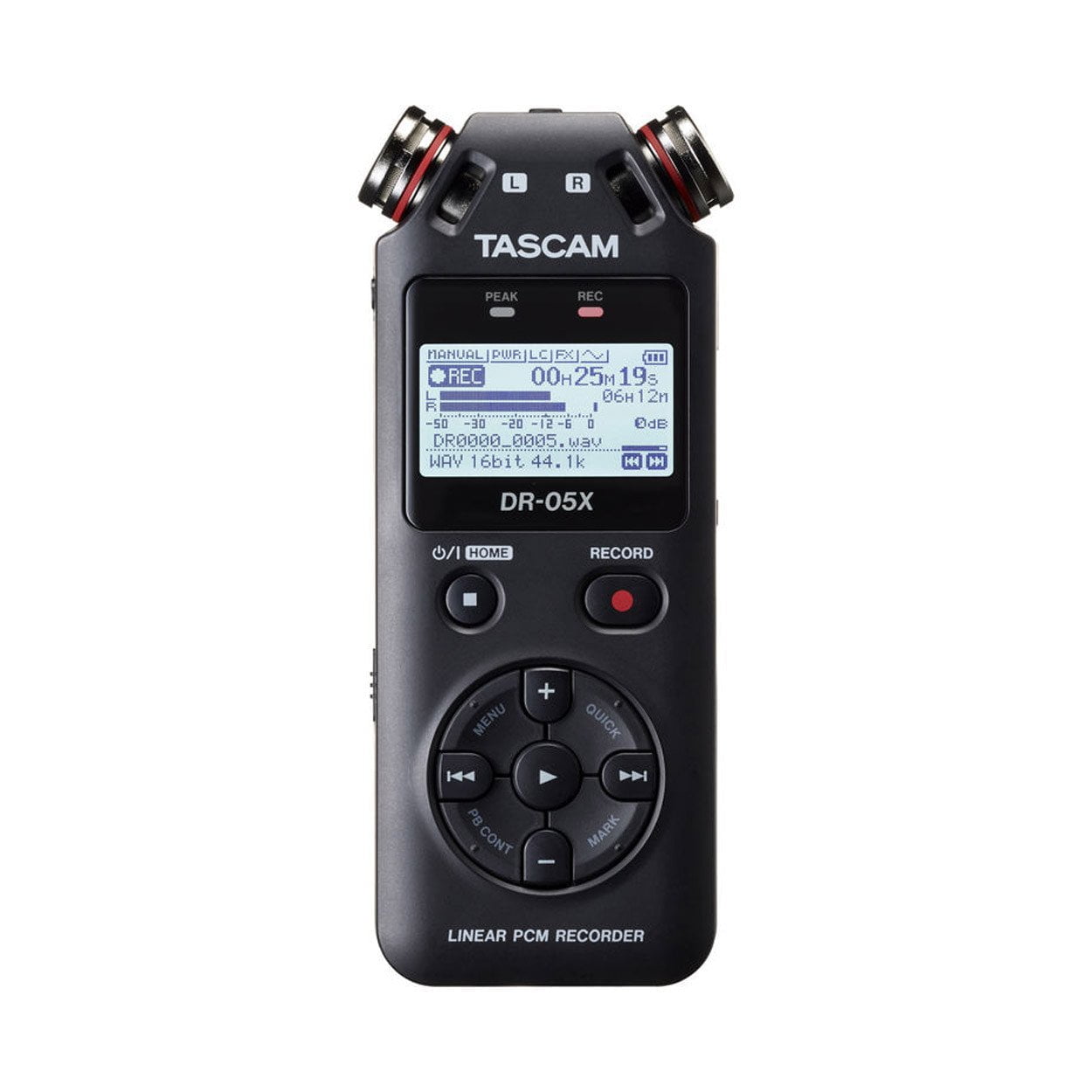

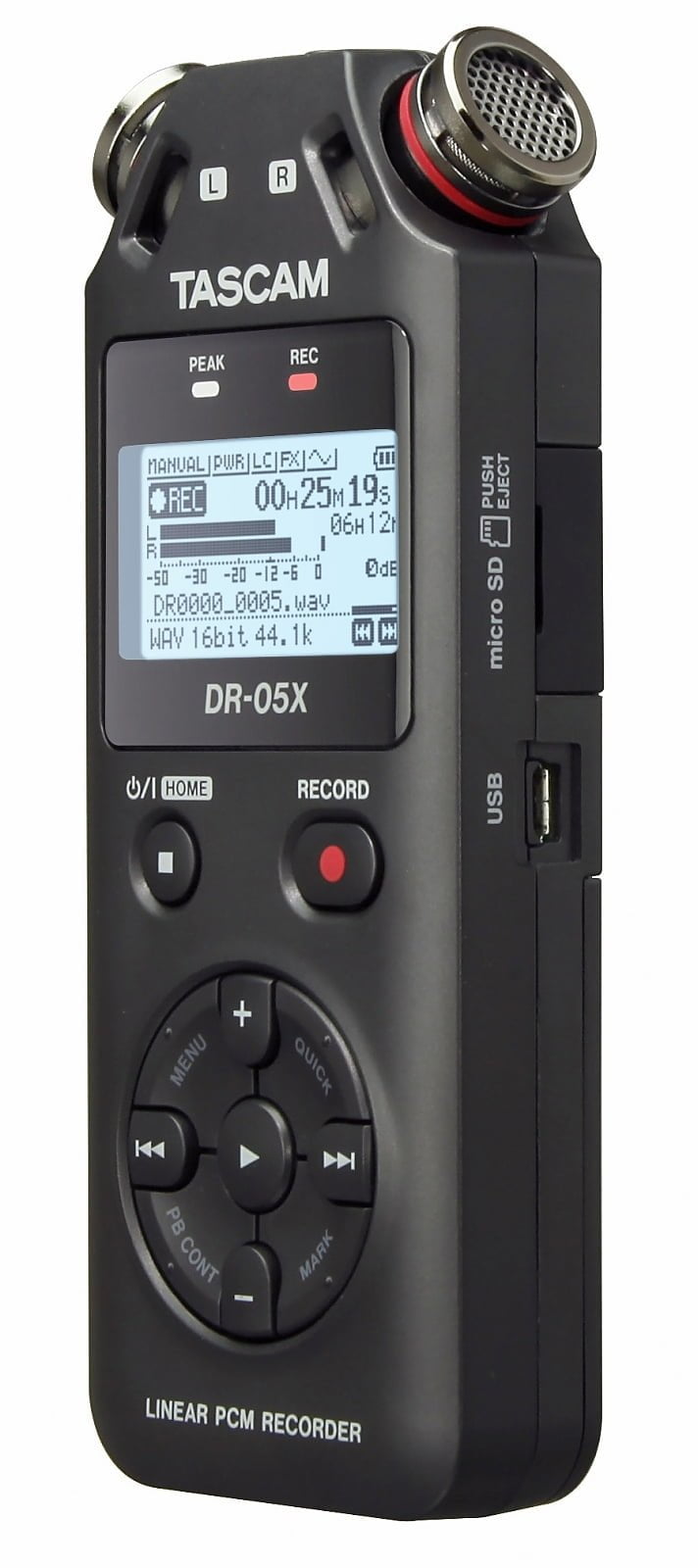

Tascam DR-05X
Tascam DR-05X
Tascam

£99.00 Inc VAT

Tascam DR-05X is a Portable Audio Recorder & USB Audio Interface that features Stereo omni directional condenser microphones

SKU: HD/TAS05 Category: Digital / MP3 Recorders
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

Record clean and clear audio anywhere

DR-05X allows high-quality recording utilizing an easy-to-use interface, and is portable and powerful but with a size and price that anyone can handle. Dual internal condenser microphones can handle anything from subtle to loud to 125dB SPL, with sensitivity to capture every detail.

Simple to operate.

The layout of the DR-05X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away.

Extended battery life

DR-05X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries. Also DR-05X can be powered by a USB mobile battery as well for super long extended use.

Turning your room into a studio – in a minute.

Connect to a PC using USB Audio interface mode, and DR-X becomes a tool for voiceover work, live streaming, podcasting and songwriting with studio-quality audio. Built-in microphones work as USB microphones without complicated driver installs.

Upgrade your movie

Auto tone function provides easy-adjustments for on-site movie editing, ideal for DSLR filmmaking. The internal slate tone generator produces various tones for easy track making and recognition

  • Stereo omni directional condenser microphones
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Overwrite function for Punch-In recording with one level of Undo
  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
  • Dictation mode designed for human voice recording and transcription
  • Reverb effect for vocal and instrument resonance
  • Auto recording function that can detect the sound input signal level and automatically start recording
  • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
  • Peak reduction function
  • Self timer recording function
  • Seamless gain control
  • Three low cut filter levels (40/80/120Hz)
  • Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments)
  • Level align feature that prevents uneven volume levels
  • Equalizer setting for adjusting playback sound quality
  • Divide/delete functions
  • Loop/repeat playback function
  • Resume function that retains the last stop position and starts playback from that position when power is turned back ON
  • Jump back and play (1 to 10 sec in 1 sec increments, 10 sec, 20 sec, 30 sec)
  • QUICK menu button for easy access to various functions
  • High-quality 96kHz/24-bit WAV/BWF linear PCM recording and long recordings as MP3 files possible
  • microSD/microSDHC/microSDXC (up to 128GB) cards can be used as recording media
  • Mark function that can set up to 99 points for a single track Mark information can be utilized by BWF compatible software
  • Audio files created on computers can be played (Only in formats compatible with this product)
  • Built-in monaural speaker with an output of 0.3W
  • Pre-recording buffer that can record up to 2 seconds prior to starting recording
  • When a predetermined maximum file size is reached, a new file is created to continue recording
  • Track increment creates new files at arbitrary locations during recording
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely
  • Playlist function
  • A chromatic tuner is equipped which is helpful for practicing musical instruments
  • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
  • Stereo mini line output / Headphone output connector
  • 128×64 pixel graphic LCD with backlight
  • High-speed file transfer to a computer is possible using USB 2.0
  • Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
  • Tripod attachment screw-hole built in to the unit



  • Recording Media microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
  • File System FAT16/32
  • Recording File Format
  • WAV / BWF
  • Sampling Frequency 44.1k / 48k / 96k Hz
  • Bit-depth 16 / 24-bit
  • MP3
  • Sampling Frequency 44.1k / 48k Hz
  • Recording Bit-rate 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
  • Playback Bit-rate 32k to 320k bps, VBR, ID3TAG Ver. 2.4
  • Number of Channels 2-channel (Stereo) / 1-channel (Mono)
  • Playback speed control 0.5 to 1.5 times (in 0.1 increments) * 44.1k/48kHz only
  • Built-in Microphone Omnidirectional, Stereo
  • MIC/EXT IN
  • Connector 1/8″ (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
  • Nominal Input Level –20dBV
  • Maximum Input Level –4dBV
  • Input Impedance 18kΩ or more (PLUG IN PWR: OFF)
  • 2kΩ or more (PLUG IN PWR: ON)
  • PHONES/LINE OUT
  • Connector 1/8″ (3.5mm) Stereo Mini jack (Unbalanced)
  • for LINE connection
  • Nominal Output Level –14dBV (10kΩ load)
  • Maximum Output Level +2dBV (10kΩ load)
  • Output Impedance 12Ω
  • for Headphones connection
  • Maximum Output Power 20mW + 20mW (32Ω load)
  • USB
  • Connector USB Micro B-type
  • Format USB2.0 HIGH SPEED
  • Built-in Speaker 0.3W, Mono
  • Low-cut Filter 40 / 80 / 120Hz
  • Chromatic Tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
  • Effector 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
  • Tripod attachment screw-hole 1/4″ Tripod attachment screw-hole
  • Power 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
  • Power Consumption 1.7 W (Max)
  • Battery Operation Time (Recording)
  • Alkaline (EVOLTA) approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
  • Ni-MH (eneloop) approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
  • Dimensions (W×H×D) 2.4″ × 5.55″ × 1.02″ / 61 × 141 × 26 mm
  • Weight 4.1 oz. / 116 g

Audio Performance

  • Frequency Response
  • Fs 44.1kHz 20Hz to 20kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
  • Fs 48kHz 20Hz to 22kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
  • Fs 96kHz 20Hz to 40kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
  • Total Harmonic Distortion 0.05% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
  • Signal-to-Noise Ratio 92 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)

Computer Requirements

  • Windows
  • Computer Windows PC with USB2.0 or USB3.0 port
  • CPU Dual Core, 2GHz or faster (x86)
  • Memory 2GB or more
  • Macintosh
  • CPU Power PC, iMac, G3, G4, G5 266MHz or faster
  • Memory 64MB or more
  • USB USB2.0 recommended

Brand

Tascam

Tascam

Reviews

There are no reviews yet.

Be the first to review “Tascam DR-05X” Cancel reply

You must be logged in to post a review.

Related products

  • Tascam PS-P520E AC Power Adapter

    Tascam PS-P520E AC Power Adapter

    £30.00 Inc VAT

Need professional advice or a bespoke solution for your requirement? Click Here

Contact us today for your church's audio visual solution!
DM Music Logo

We are the leading supplier and installer of Sound and Audio Visual systems to UK Churches. Since 1992 we have completed over 3,000 church installations. ...read more


Heritaqe AV

A division of DM facilitating non-Church related installation work. ...read more

We're here to help, call us for free support and advice: 01582 761122

Email us: support@dmmusic.com

Need it installed? We are an installation company!

Buy securely online with confidence

We offer training at your Church

Subscribe to our newsletter here

Busy day finishing up this bespoke stage 🔨📏 Busy day finishing up this bespoke stage 🔨📏 Trimmed in solid oak with built-in storage and floor boxes with angled socket plates - CNC machined in house 😍 #dmmusic #avinstaller #soundsystems #carpentry #stage #church #bespoke #custom #installation #churchav
Did you know? ❓ We work with expert carpenters t Did you know? ❓ We work with expert carpenters to design and build totally bespoke consoles to suit every PA, AV or streaming requirement 📝🔨

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #lumens #magewell #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral #console #rack #equipment #yamaha #carpenter #blackmagic #blackmagicdesign
Whatever your live-streaming requirement is, our p Whatever your live-streaming requirement is, our project managers will work with you to find the perfect solution!

Pictured is a portable multi-camera system which we installed in Wilton, Wiltshire towards the end of 2020.

Cameras - @bolintechnology
Vision mixer - @roland_uk
Camera controller - @marshall_usa
Streaming encoder - #magewell

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #bolin #marshall #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral
We recently installed PA, AV and streaming systems We recently installed PA, AV and streaming systems as part of a major refurbishment project for a church in Guildford.

This included professional products from @allenandheath @roland_uk @zero88 @birddog_gear @kramerelectronicsltd @yamaha_proaudio_official @lgcommdisplays @surgexav and many more!

Bespoke operator consoles designed and built in-house by @dmmusicltd

#proav #installation #audiovisual #bespoke #consultants #guildford #dmmusic
Recently installed acoustic wall and ceiling panel Recently installed acoustic wall and ceiling panels.

#churchinstallation #churchinstall #acousticpanels #acoustictreatment #artnovion #soundsbetter
Recently installed discreet PTZ camera with custom Recently installed discreet PTZ camera with custom bracket.

#churchstreaming #churchinstall #churchinstallation #churchav #ptzcamera
More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT. More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT.
It’s great to be installing so many more PTZ cameras to help churches live stream their services.

#livestreaming #churchonline #churchlivestream #churchav #ptzcamera #churchavinstallation
If you’re thinking about streaming your church s If you’re thinking about streaming your church services take a look at our ‘Before You Start Streaming’ Guide for some advice on how to approach it. Link in bio.
#Churchstreaming #livestreamingchurch #livestreamingchurchservice #churchlivestream #churchlivestreaming #churchaudiovisual
Another successful DM audio-visual installation in Another successful DM audio-visual installation in a new build London Church. The @martinaudio CDD range helped us overcome the audio challenges.  #churchsoundsystem #churchsound #churchav #martinaudio #martinaudiocdd
Follow on Instagram

Support Links

About Us

Contact Us

Privacy Policy & Cookies

Terms & Conditions

Delivery & Returns Info

Job Opportunities

© 2021 DM Music Ltd
DM Music Ltd, Unit 4, Riverside Estate, Coldharbour Lane, Harpenden, Hertfordshire, AL5 4UN | Registered in England & Wales No.06747770
0
