PDA5/SD – LED interface

Signet’s PDA and PRO series of single loop amplifiers have been designed and manufactured in the UK to suit areas up to 1000 square metres – perfect for nearly all church buildings.

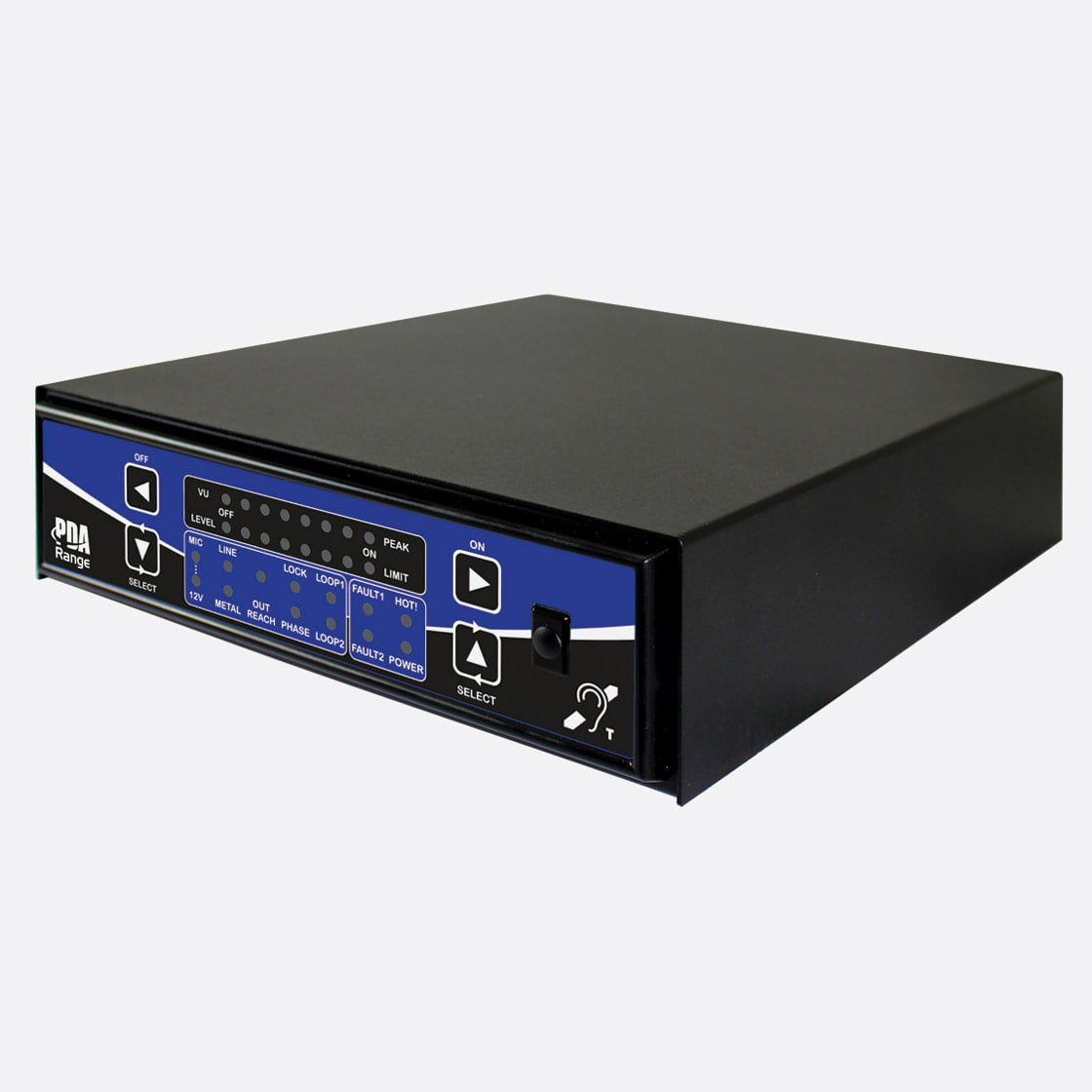

PDA5, PDA7, and PDA11 constant current amplifiers feature single loop amplifier technology to give coverage and support to perimeter loop systems. An LED interface along with four membrane control buttons aids navigation and easy setup, whilst also giving clear indication of operation and fault status.

Model coverage

PDA5/SD 4.75 Amp 200m2 (approx. 14 x 14m)
PDA7/SD 7.5 Amp 500m2 (approx. 22 x 22m)
PDA11/SD 11 Amp 1000m2 (approx. 31 x 31m)

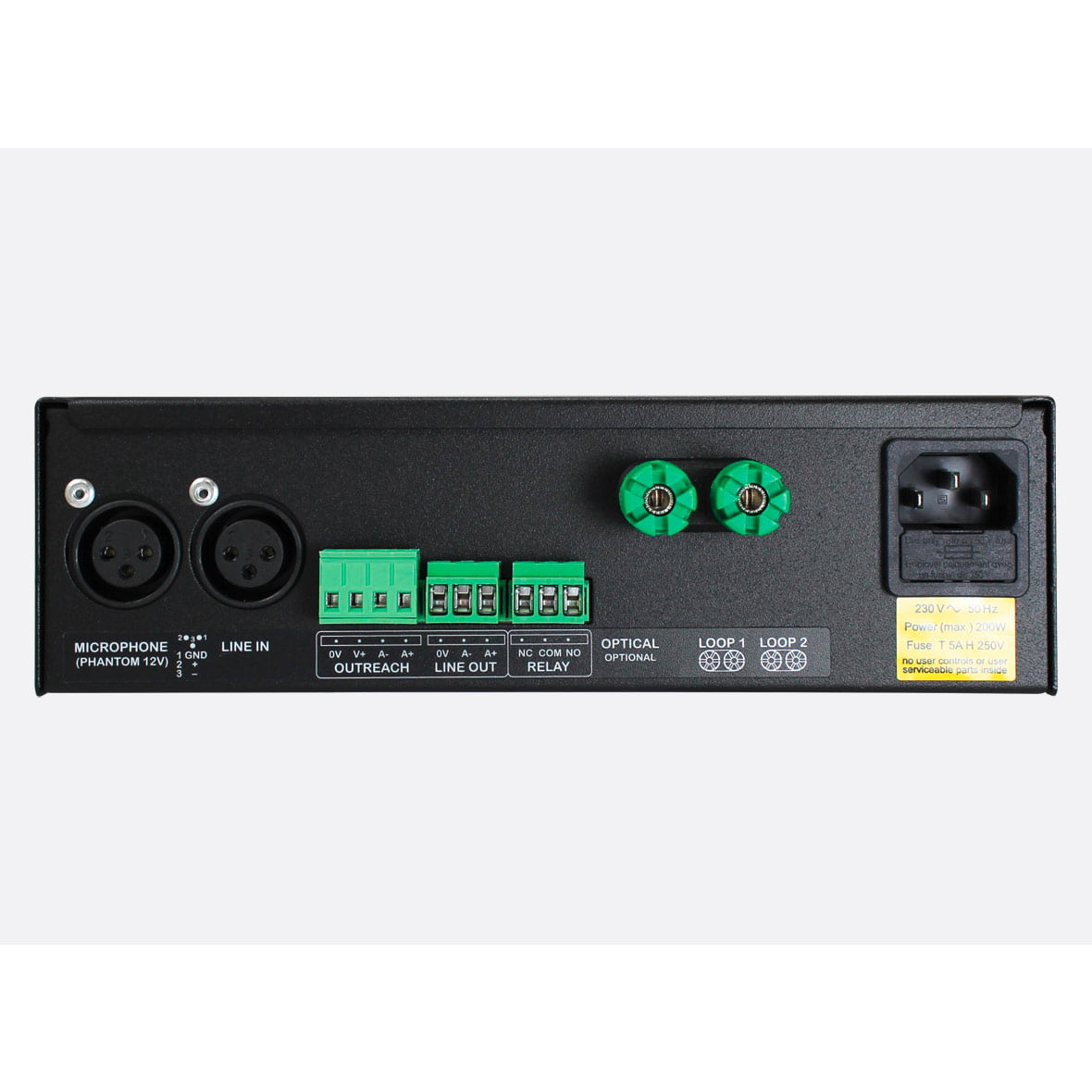

All models have the same front panel functionality, and rear panel connectivity including 2x selectable mic/line inputs on 3-pin XLR connector, 1x outreach input via 4-way Phoenix connector for connection to up to ten compatible outreach plates.

General

• Type: Free-standing (supplied with IEC 320 fused mains lead)
• Coverage: 200m2, i.e. rooms up to approx. 14m x 14m
• Inputs
  • 2 x XLR mic/line (selectable)
  • 1 x Outreach
• Outputs
  • Loops: 1
  • Line Out
  • Fault Relay
• Controls
  • Sensitivity Level Controls
  • Line In
  • Mic
  • 12V Phantom
  • Outreach
  • Optical
  • Metal Comp
  • Drive: 1
  • Loop
  • Phase Shift
• Indicators: LED display with 4 membrane control buttons

Physical & Dimensions

• Dimensions: 67H x 218W x 280D mm
• Weight: 2.38kg

Brand

Signet
