Induction Loop amplifier
Ideal for churches, halls, large rooms etc
Min 4 year manufacturer warranty*
SigNETs new range of PDA1000 professional current mode audio-frequency induction loop amplifiers offer outstanding sound quality at a competitive price. They are ideal for use in large prestigious applications such as theatres, churches, cathedrals, cinemas, large conference halls, etc., where first class sound and unrivalled reliability are a must.
The Signet PDA1000/2 covers up to 900 square metres on a square room basis. Also has optional rackmount kit available.

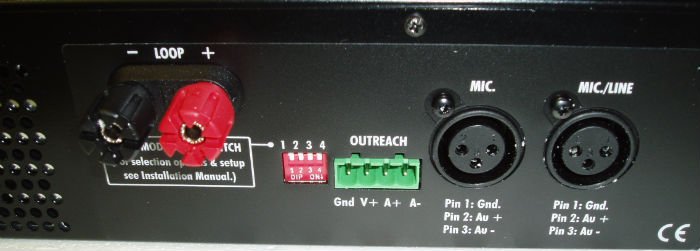

Each amplifier includes one balanced microphone input and one switchable balanced mic. or line level input, both of which will accept standard 3 pin XLR connectors. Optional 11V phantom power is also available on both inputs to allow the use of electret or condenser microphones.
By popular demand, each amplifier also features a four-way Outreach input offering full compatibility with SigNETs unique Outreach Plate audio input extension system. This system allows the connection of up to 10 additional microphone or line level inputs via a range of specially designed single gang connector plates.
The pre-amplification stage of each amplifier utilises an advanced signal processing system that allows tight control over the audio signal without any degradation of output quality. A metal compensation control is also provided to help offset the frequency response problems associated with the excessive metal content of some rooms.

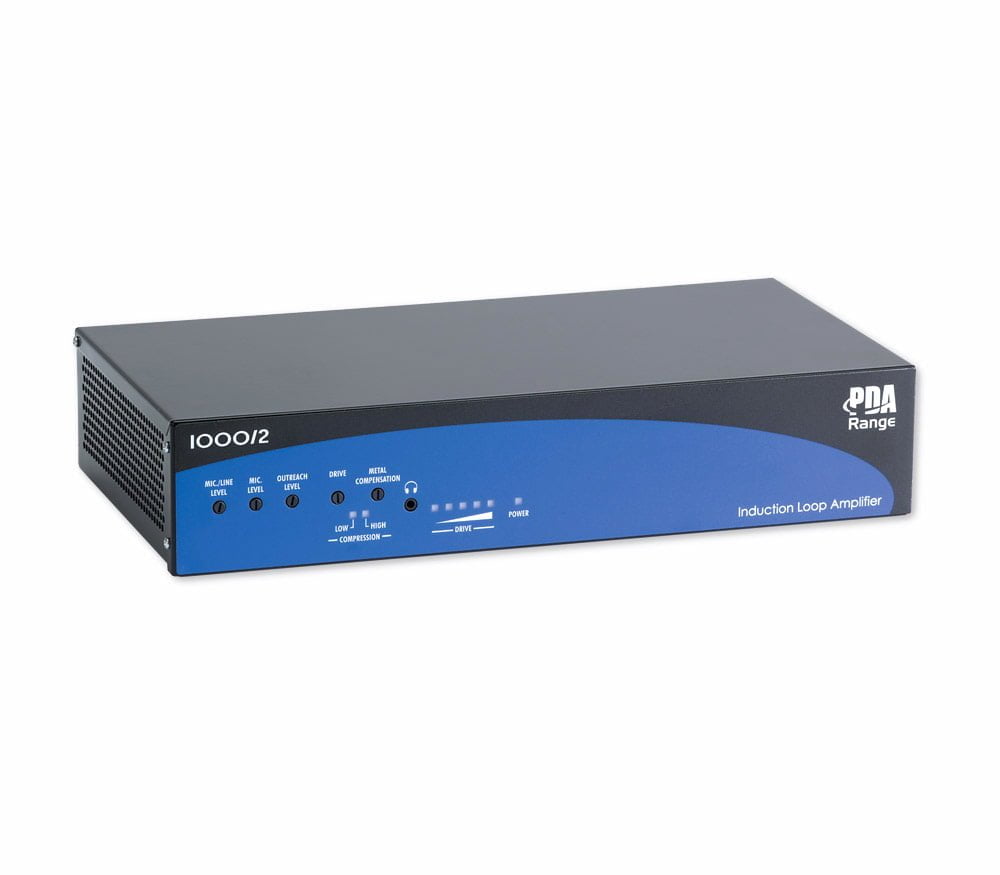

Other features include three level controls (one for each input), a loop drive control, an output current meter and a compression activity display giving visible indication of the amplifiers compressor.
*Manufacturer warranty – Signet offer a 5 year product warranty from the date of manufacture so generally this will offer a minimum of 4 years warranty to customer.
Coverage of approx. 1000m2
One balanced/unbalanced microphone input (3 pin XLR)
One balanced/unbalanced line level input (3 pin XLR)
Adjustable output drive and input level controls
Input peak and output current meter
Fully compliant with EN60118-4 (formerly BS6083) and BS7594:1993
Dimensions: 380 x 80 x 220mm (W x H x D)
