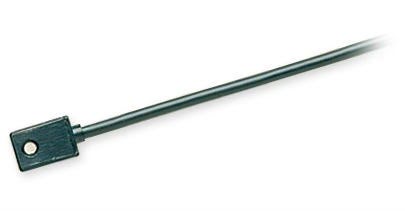

Shure WL93 lapel mic

Call for price
  • Lapel mic
  • Cardioid pickup pattern
  • Includes clothing clip
Categories: , SKU: MI/CON/SHU06

The WL93 is an omnidirectional miniature lavalier condenser microphone providing a full clear sound.

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

Subminiature lavalier design; ideal size for theatre, television, broadcasting, video, film, and sound reinforcement
Small, inconspicuous mounting hardware
Full, clear sound comparable to larger microphones
Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
Controlled low-frequency roll-off reduces low-frequency clothing and room noise
Low distortion, wide dynamic range
Uniform omnidirectional polar pattern

Type: Condenser (electret bias)
Frequency Response (Figure 4): 50 to 20,000 Hz
Polar Pattern: Omnidirectional, uniform with frequency
Output Impedance: 3000 ohms
Output Level(1 Pascal = 94 dB SPL): Open Circuit Voltage: 38 dBV/Pa (13 mV)
Output Clipping Level(at 1,000 Hz): 0.25 V at 120 dB
Total Harmonic Distortion: Less than 1% at 120 dB
Maximum SPL: 120 dB
Dynamic Range (maximum SPL to A-weighted noise level): 102 dB
Output Noise (equivalent SPL): 18 dB typical, A-weighted
Hum Pickup (electromagnetic): N/A
Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)
Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
Current Drain: 40 A typical
Environmental Conditions: Operating Temperatures: 18o to 57o C (0o to 135o F), Storage Temperatures: 29o to 74o C(20o to 165o F)
Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature connector type TA4F (WL93T: Tan 1.27 m [4.17 ft])
Case: Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
Net Weight: Microphone: 16 g (0.57 oz)
