Adapts any wired hand held dynamic mic to a wireless system.
Note: Does not provide Phantom Power for condenser mics.
Compatible with G3 ew100 reciever.
Also works with discontinued G1 and G2 100 series systems (pilot tone must be turned off).

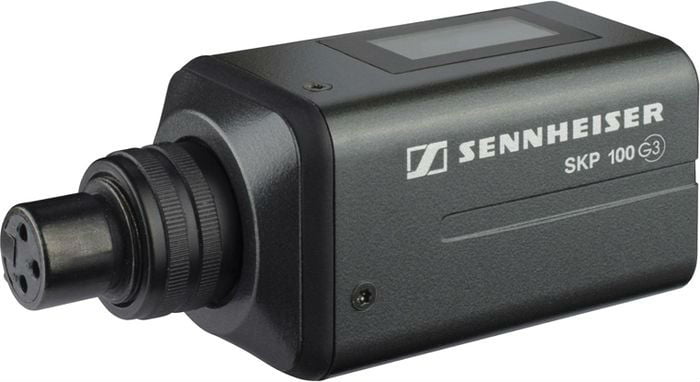

The SKP 100 G3 adapts G3 wireless technology to a wired world. Imagine taking a wired microphone and turning it into a wireless simply by plugging in the SKP 100 G3 to it’s XLR port. Maybe you would like to send a signal from a mixing console to a Sennheiser evolution G3 receiver across the room? No problem. Featuring G3 upgrades such as wireless transmitter sync and easy-to-navigate menus, the SKP 100 G3 is ready to literally plug in and play.
NOTE – requires Sennheiser receiver em100 G3 to operate as complete radio system
Sturdy metal housing
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 12 compatible frequencies
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Increased range for audio sensitivity
Wireless synchronization of transmitters via infrared interface from receiver
User-friendly menu operation with more control options
Illuminated graphic display
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter features battery indicatation in 4 steps, also shown on receiver display
Programmable Mute function
Wide range of accessories adapts the system to any requirement
RF frequency range 516….. 865 MHz
Transmission/receiving frequencies 1680 (max. 20 Presets)
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Audio-XLR connector XLR-3 female
RF output power 30 mW
Operating time (transmitter) > 8 h
Input voltage range max. 3,0V eff
Dimensions (Transmitter) 105 x 43 x 43 mm
Weight (Transmitter) 195 g
