This omnidirectional mic is very popular and highly recommended by our Engineers and Project Managers for high quality sound and speech reproduction. One of the most discreet mics on the market.

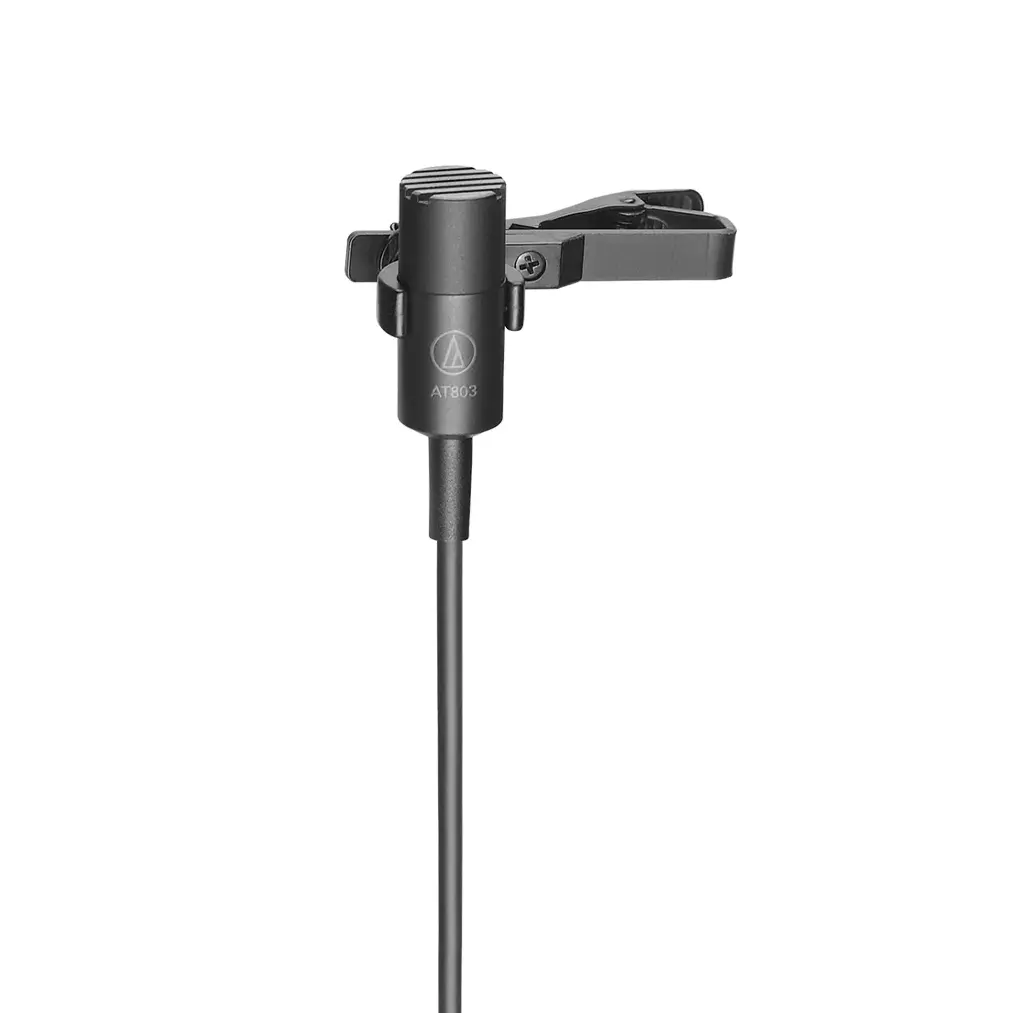

The AT803 provides excellent yet unobtrusive sound pickup for lecturers, stage/TV performers and houses of worship . Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY Phantom: -44 dB (6.3 mV) re 1V at 1 Pa Battery: -46 dB (5.0 mV) re 1V at 1 Pa
IMPEDANCE Phantom: 200 ohms, Battery: 270 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 135 dB SPL, 1 kHz at 1% T.H.D. Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom: 107 dB, 1 kHz at Max SPL Battery: 93 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
WEIGHT (MICROPHONE) 2.8 g (0.1 oz)
DIMENSIONS (MICROPHONE) 25.0 mm (0.98″) long, 10.2 mm (0.40″) diameter
OUTPUT CONNECTOR 4 pin HRS connector (for 700 series radio systems – other connectors available)
CABLE 1.8 m (6′) long (permanently attached to microphone), 2.6 mm (0.10″) diameter, 2-conductor, shielded cable.
ACCESSORIES FURNISHED AT8417 clothing clip; AT8116 windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE M1
