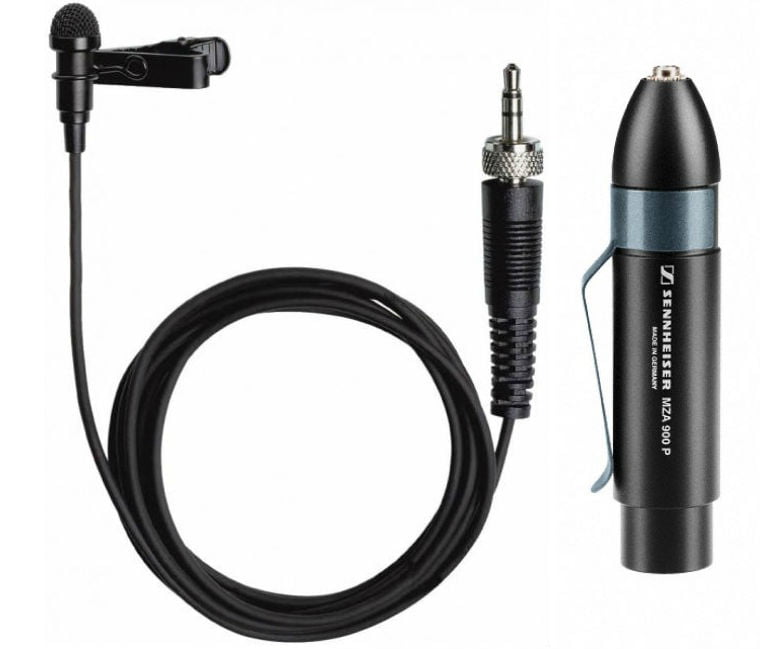

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 ¤ 52 V phantom powering (P12 ¤ P48). The connected microphone is supplied via the adaptor.
The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.
The MZA 900 P can also be used as a cable tester for XLR microphone cables.

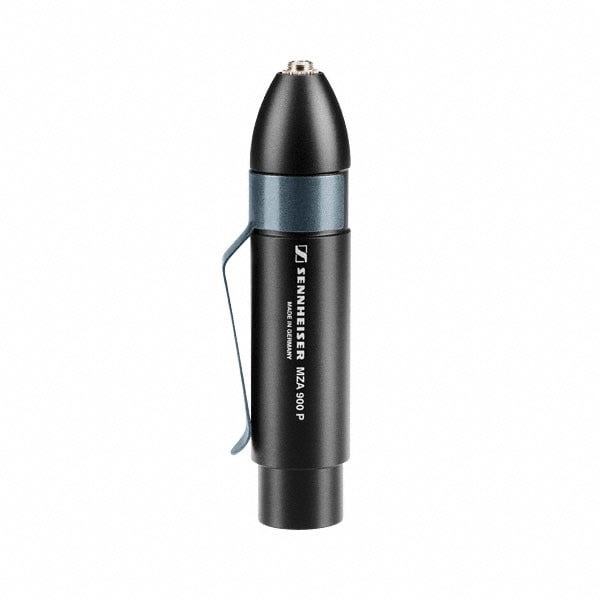

MZA 900 P with belt clip
Instructions for use
Frequency response 20 ¤ 20000 Hz (¤1 dB)

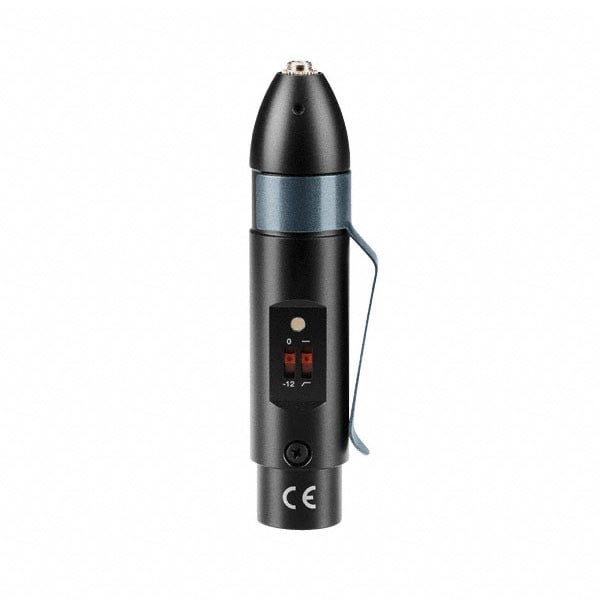

Gain 0/-12 dB
Output voltage 1,8V (P48), 0,6V (P12) @ 0dB gain
Output impedance 100 Ohm
Min. terminating impedance 5kOhms (P12 – P48) @ 0dB gain; 2kOhms (P12 – P48) @ -12dB gain
Phantom powering P12 – P48, 10 – 52V, 2,6 – 2,8mA
Dimensions ˜ 19/22 mm, L 100 mm
Weight 60 g
Operating temperature -20….. 60 deg C
