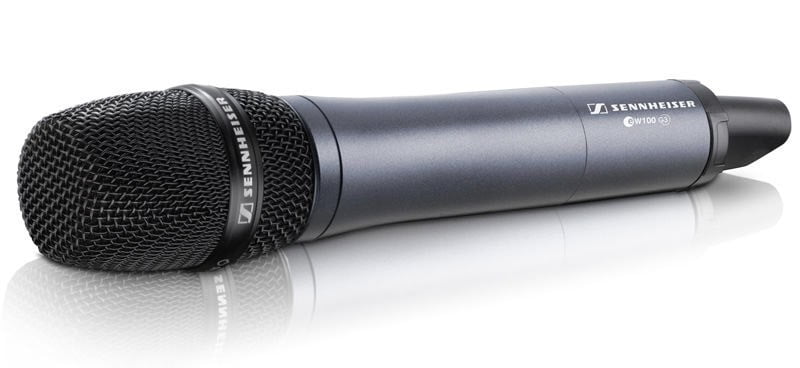

Sennheiser SKM100-865 G3 Evolution Handheld Mic transmitter only

Discontinued
  • Vocal radio mic with Super-Cardioid Condenser head for ew100 G3 system
Sennheiser
Tag: Categories: , SKU: RM/TX/HH/SEN05

Merging high-tech features with easy setup, the SKM 100-865 G3 features an evolution condenser capsule coupled with all the upgraded benefits of the G3 series. The wireless sync function allows the transmitter to sync up to a G3 receiver with a simple push of a button, making setup simple. Expanded frequency response means a more precise sound quality to ensure that you deliver an unforgettable performance.

Features

  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization via infrared interface from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Battery indicatation in 4 steps, also shown on receiver display
  • Easy-exchangeable microphone modules from evolution series
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Delivery Includes
1 SKM 100-865 G3 handheld transmitter (condenser, super-cardioid)
1 MZQ 1 microphone clip
2 batteries
Operating instructions

RF frequency range 516 ….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
RF output power 30 mW
Operating time (transmitter) >8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type electret-condenser
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 152 dB(SPL) max.
Pick-up pattern super-cardioid

SKM100 G3 hand held radio mic transmitters comparison chart

ew135 ew145 ew165
Transducer Dynamic Dynamic Condenser
Sensitivity 2.1mv/Pa 1.6mv/Pa 1.6mv/Pa
Pickup pattern Cardioid Super-cardioid Super-cardioid
Max SPL 154dB 154dB 152dB
