Sennheiser ew312 G3

Discontinued
  • Radio mic sytem – True Diversity
  • With ME 2 omni-directional microphone
  • Pro quality presentation wireless system
  • Rack mountable – includes GA-3 rack mount kit.
Sennheiser
Tag: Category: SKU: RM/LAP/SENG309

Communicating in harmony: when the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery.

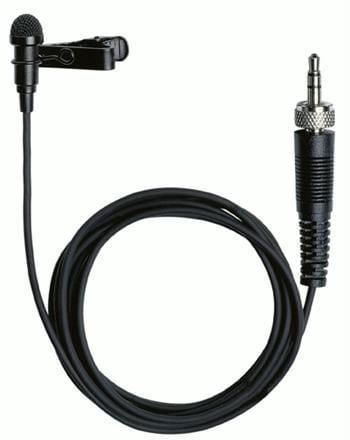

The inconspicuous omni-directional ME-2 clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.

If you do intend to run on Channel 38 you will require a licence from Ofcom. Operating on Channel 70 will not require a licence.

Features

  • Sturdy metal housing (transmitter and receiver
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer – this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indication in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

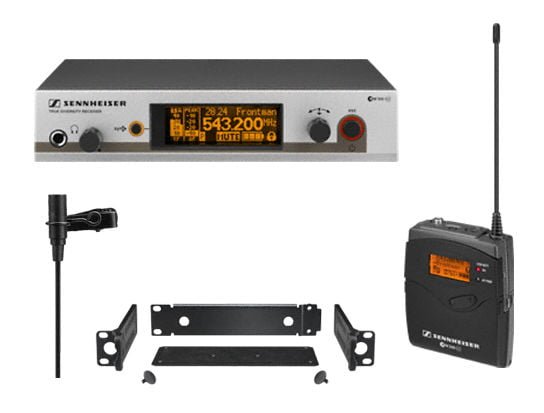

Delivery Includes

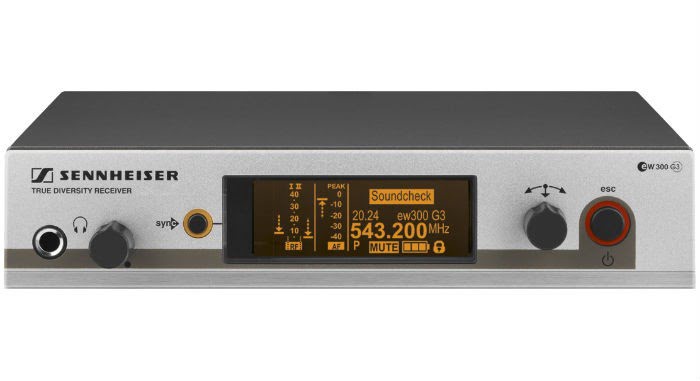

1 EM 300 G3 rack-mount receiver
1 SK 300 G3 bodypack transmitter
1 ME 2 clip-on microphone (omni-directional)

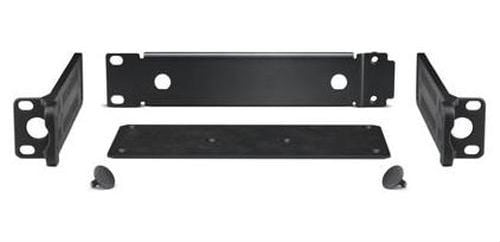

1 GA 3 rack mount
1 NT 2 power supply unit
2 antennas
2 AA batteries
Operating instructions

NOTE: If using rechargeable batteries we recommend Nickel Metal Hydride (NiMH) type.

Technical Data

RF frequency range 516….. 865 MHz
Transmission/receiving frequencies 1680
Presets 24
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: 18 dBu max
Audio output level (unbalanced) Jack: 12 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 980 g
RF output power 10/30 mW
Operating time (transmitter) > 8 h
Input voltage range 1,8 V, line
Input voltage range 2,4 V, line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
Transducer; Microphone type elektret
AF sensitivity 20 mV/Pa
Sound pressure level (SPL) 130 dB(SPL) max.
Pick-up pattern omni- directional
