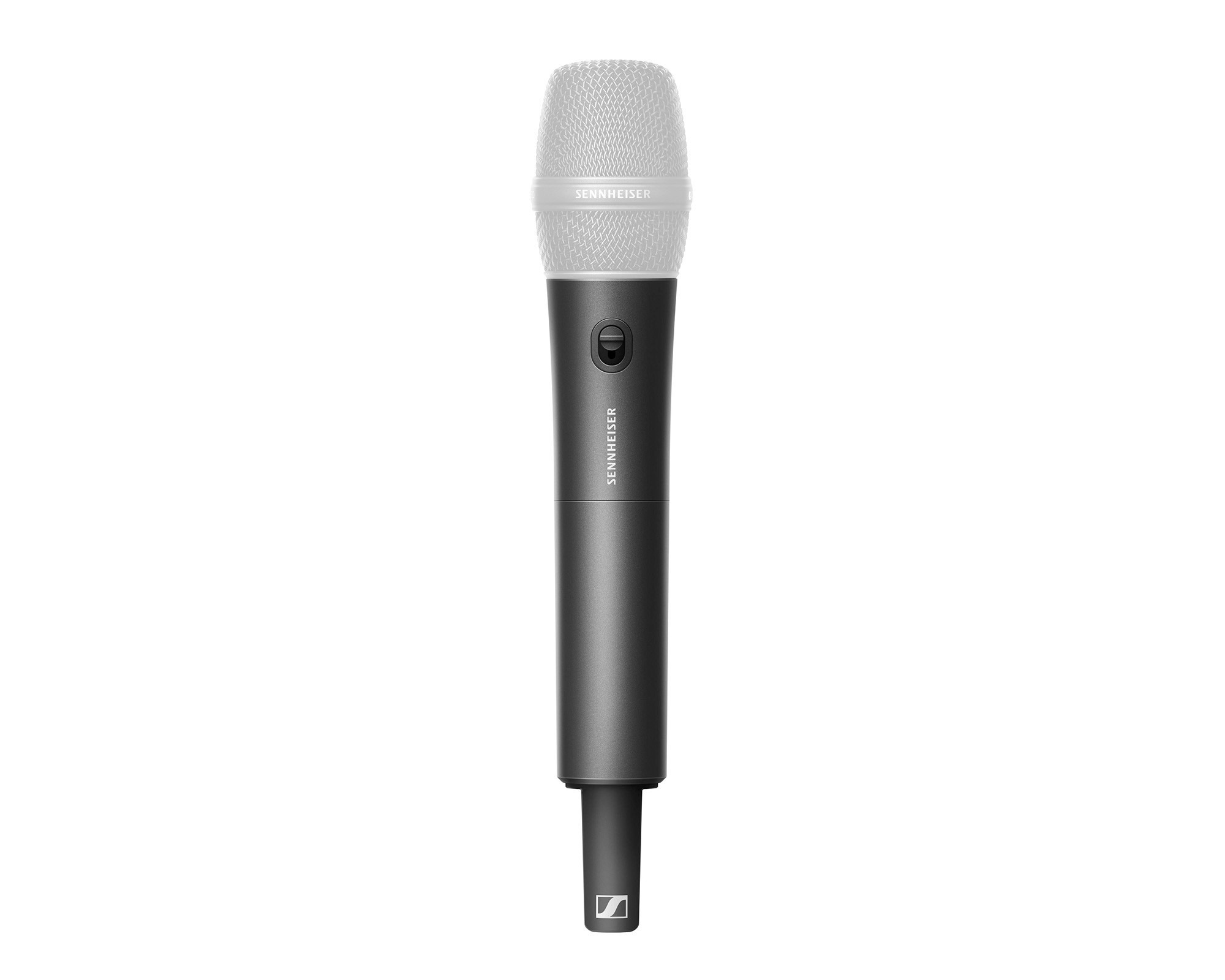

Sennheiser EW-D SKM Handheld Transmitter

£259.00 Inc VAT
  • Digital transmission operating in the UHF spectrum
  • 134 dB Audio input dynamic range
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth

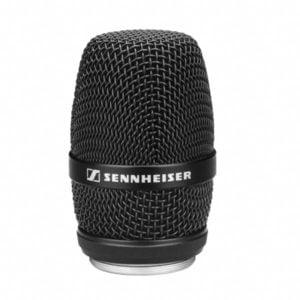

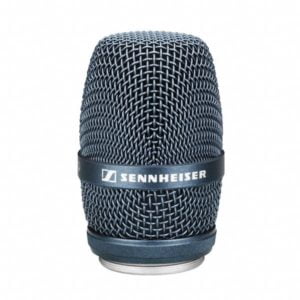

Microphone Capsule Module is available separately below.

Sennheiser

Digital UHF handheld transmitter with mute switch for use with Evolution Wireless Digital. (Microphone Capsule Module available separately.)

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.

Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates the need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine-tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
  • Input voltage:  2.0 – 4.35 V
  • Input current:  < 300 mA
  • Frequency range: S1-7 606.2 – 662 MHz
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):  Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP); BLE: max. 10 mW EIRP
  • Dimensions (ø x l):
    • 50 x 268 mm (incl. MMD 835 microphone module)
    • 40 x 200 mm (without microphone module)
  • Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module), approx. 195 g (without microphone module)

Brand

Sennheiser

Sennheiser

DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
Sennheiser
