The WEDGE Series is a complete range of active stage monitors designed to offer not only to professional musicians and rental companies, but also to amateur musicians and nonprofessional users, a highly valuable monitoring solution at a very affordable price.
The WEDGE stage monitors provide a perfect sound intelligibility and a high SPL in an extremely light-weight and portable enclosure. The coaxial transducers, designed under PROEL specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position.
The lightweight CLASS D amplifier modules with SMPS, coupled to a sophisticated analog processing, provide an impressive sound pressure level, with an extremely detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two tailored EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH).

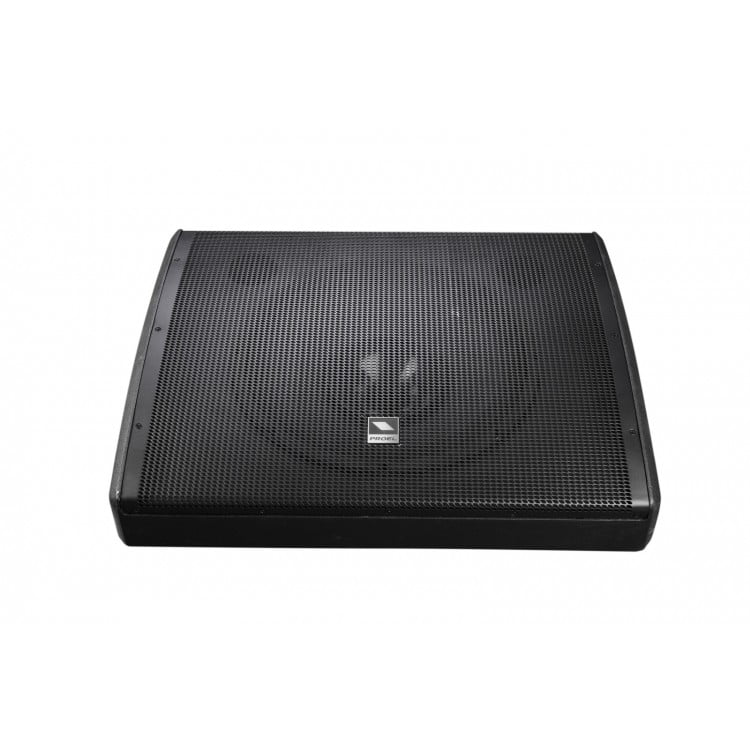

The low-profile, stylish and unobtrusive cabinet, with recessed handles and scratch-resistant polyurethane painting, fits perfectly on any stage. WD15A, with its full extension and powerful and deep response at the low frequencies, is the ideal monitor for bass and drums players. The horn-loaded HF section and the powerful amplifier make it the perfect solution for monitoring also in very large stage.
1” compression driver with 1.35” VC on a waveguide
15” woofer with 3” VC
900 W total peak power
50 W continuous class AB amplifier for the high frequencies
350 W continuous class D amplifier for the low frequencies
Switch Mode Power Supply (SMPS) – Dual LIMITER circuit
2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
SPL MAX: 126dB
Frequency response: 45 Hz – 20 kHz
Lightweight plywood cabinet with black anti-scratch polyurethane paint
Reinforced metal grille

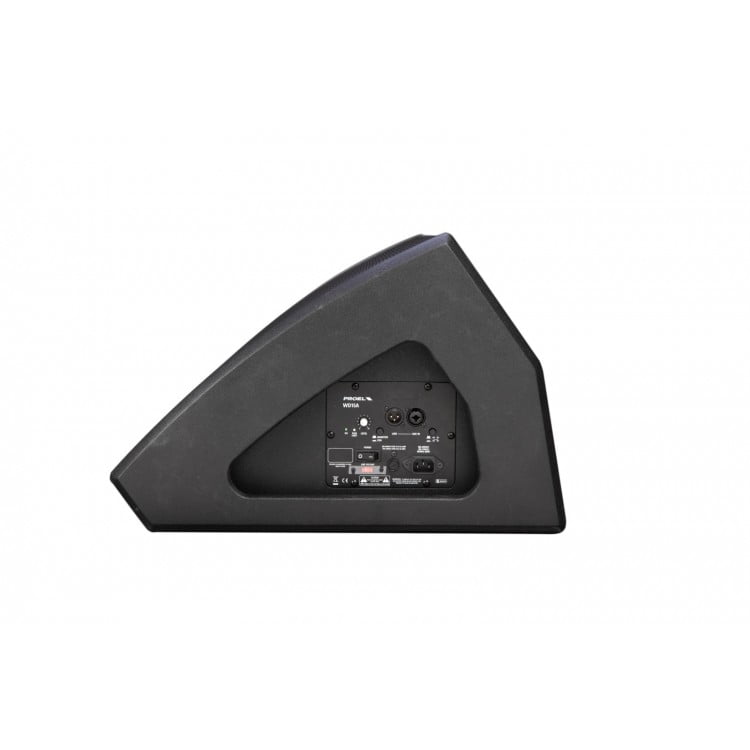

Recessed connection panel for added protection
Two recessed handles for easy transport
System type 2-way coaxial vented Low Frequency Device 15” woofer with 3″VC High Frequency Device 1” compression driver with 1.35″VC Angular Coverage 60° Frequency Response 45 Hz – 20 kHz Max SPL at 1mt (peak) 126 dB Amplifier Continuous Power HF: 50 W CLASS AB LF: 400W CLASS D with SMPS Input Impedance 30 kohm balanced / 15 kohm unbalanced Input sensitivity 0 dBu Controls LEVEL, PRESET selector (MONITOR, FOH), GND lift Connectors INPUT: COMBO (XLR-F/JACK) – LINK: XLR-M Power Supply 230 VAC or 120 VAC 50/60 Hz Maximum Consumption 575 W Rated Consumption 300 W Construction Plywood with black anti-scratch polyurethane paint Pole adapter 1 x side Handles 2 x sides Monitor Taper 36° Weight 19.5 kg (43 lb) Dimensions (W x H x D) 610x365x545 mm
