Up to 12 kW for powering Lo-Z and Hi-Z transducers
8-channel power amplifiers with up to a total of 12,000 W at 4 ohm – ideal for multi-zone applications in mid to large-scale installs.
All versions in the Series feature switchable main and aux signal inputs per channel, adequate GPI/O, alarms, Lo-Z and Hi-Z output connections as well as mono-bridgeable channel pairs.
New Ottocanali DSP+D versions feature innovative signal processing and support two redundant Dante™ by Audinate® digital streams.
The Ottocanali 12K4 is a flexible and reliable 8-channel power amplifiers with up to a total of 12,000 W at 4Ω, ideal for multi-zone applications in medium to large-scale installs: Ottocanali 12K4 supports any combination of lo-Z loudspeakers, mono-bridgeable channel pairs and 70V/100V Hi-Z distributed lines with no need for output step-up transformers. The Ottocanali 12K4 features switchable main/aux signal inputs and offers a wide range of system control, alarms, GPI/O and monitoring functions as well as sound shaping options.
The Ottocanali 12K4 implements redundant universal switch mode power supplies with PFC and patented SRM (Smart Rails Management) technology maximizing reliability, efficiency and reducing power consumption.
New Ottocanali 12K4 DSP+D heralds new and innovative level of signal processing, providing non-boolean routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2 s in input processing and 100 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters and Active DampingControl™.
Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum: the Ottocanali 12K4 shines with outstandingly low power consumption and heat dissipation; This dramatically reduces costs from the AC mains supply and air conditioning/cooling systems – not to mention the benefits to the environment for a greener planet.
Power supply
Protections
Fully protected circuit design with:
General
Loudspeaker system configuration
Alarms and GPIO
Digital Signal Processing
Remote management
Designed to always fit in, Powersoft’s range of install-dedicated amplifier platforms caters to all system sizes. Whether renewing an obsolete system or creating a new one, Powersoft’s patented designs allow for flawless integration within existing structures, and for great value in long run saving strategies.
General | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Number of channels | 8 | ||||||||||||||
Output power | Single channel mode | Distributed line* | Bridge mode | ||||||||||||
2 Ω | 4 Ω | 8 Ω | 70V | 100V | 4 Ω | 8 Ω | 16 Ω | ||||||||
1100 W | 1500 W | 850 W | 1500 W | 1500 W | 2200W | 3000W | 1700 W | ||||||||
Max output voltage / current | 150 Vpeak / 54 Apeak | 100 Vpeak | 140 Vpeak | 300 Vpeak | |||||||||||
AC Main Power | |||||||||||||||
Power supply | Reduntant, universal, regulated switch mode with PFC | ||||||||||||||
Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||||||||||||||
Operating voltage | 90 V – 264 V | ||||||||||||||
Power consuption** | 115 V | 230 V | |||||||||||||
Idle | 47 W | 0.75 A | 50 W | 0.7 A | |||||||||||
1/8 of max output power @ 4 Ω | 2075 W | 18.5 A | 2115 W | 9.7 A | |||||||||||
1/4 of max output power @ 4 Ω | 4150 W | 36 A | 4230 W | 18.6 A | |||||||||||
Thermal | |||||||||||||||
Operating temperature range | 0° – 45° C | 32° – 113° F | ||||||||||||||
Thermal dissipation** | 115 V | 230 V | |||||||||||||
Idle | 160 BTU/h | 40.3 kcal/h | 170 BTU/h | 42.8 kcal/h | |||||||||||
1/8 of max output power @ 4 Ω | 2141 BTU/h | 539.5 kcal/h | 1937 BTU/h | 488.1 kcal/h | |||||||||||
1/4 of max output power @ 4 Ω | 4283 BTU/h | 1,079.3 kcal/h | 3874 BTU/h | 976.2 kcal/h | |||||||||||
AUDIO | |||||||||||||||
|
|||||||||||||||
Frequency response | 20 Hz – 20 kHz (±0.5 dB) @ 1 W, 8 Ω | ||||||||||||||
S/N ratio | > 109 dB (20 Hz – 20 kHz, A weighted) | ||||||||||||||
Crosstalk separation | > 70 dB @ 1kHz (4 Ω) | ||||||||||||||
THD+N | < 0.08% from 0.1 W to full power (typically <0.05%) | ||||||||||||||
IMD | < 0.8% from 1 W to full power (typically <0.05%) | ||||||||||||||
Input impedance | 10 kΩ balanced | ||||||||||||||
Slew rate | 50 V/μs @ 8Ω, input filter bypassed | ||||||||||||||
Damping factor | > 10000 @ 100 Hz (Lo-Z) | ||||||||||||||

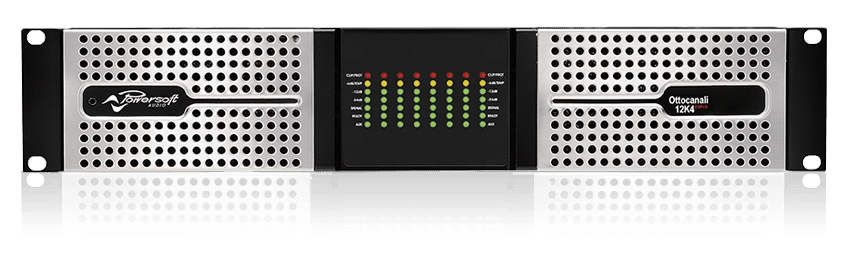

Front panel | |||||||||||||||
Indicators and Controllers | 8 x LED bar – Signal level and over-temperature protection 8 x Knob – Level attenuator (continuous) 1 x Push-button – Toggle PWS OUT 4 x DIP switch – Toggle energy save on/off per channel pair |
||||||||||||||
Connectors | |||||||||||||||
AC main | 1 x IEC C20 connector – 20 A max (region-specific power cord provided) | ||||||||||||||
Audio signal input | 1 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Signal input – MAIN 1 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Signal input – AUX |
||||||||||||||
Alarm | 2 x 12 pin Phoenix MC 1.5/12-ST-3.81 – Alarm connector | ||||||||||||||
Remote command | 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 – Remote line/aux switch and PWS out 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 – Remote on/off switch and aux voltage |
||||||||||||||
Loudspeakers | 2 x 8 pin Phoenix DFK-PC 4/8-G-7.62 – Signal output | ||||||||||||||
Rear panel | |||||||||||||||
Indicators and Controllers | 8 x DIP switch – Toggle lo/hi impedance connection 8 x DIP switch – Toggle 70V/100V distributed line nominal voltage 8 x DIP switch – Toggle High Pass Filter 8 x DIP switch – Toggle 35Hz/70Hz HPF cutting frequency 1 x Power switch – |
||||||||||||||
Construction | |||||||||||||||
Dimensions (L x H x W) | 483 mm x 89 mm x 360 mm (19.0 in x 3.5 in x 14.2 in) | ||||||||||||||
Weight | 14 kg (30.9 lb) |
