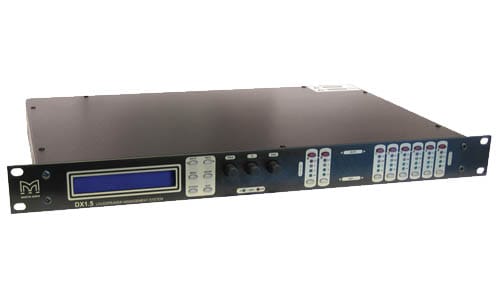

Name: Martin Audio DX1.5
SKU: OB/PRO/MAR99
Price: 2955.00 GBP
Availability: BackOrder

Discontinued

Loudspeaker Management System

2 input 6 output loudspeaker management
Flexible routing matrix
9 full bandwidth parametric bands on every output
Bessel, Butterworth and Linkwitz-Riley crossover filters
Gain delay and limiter functions
2 x 24 character LCD display

Tag: DiscontinuedCategory: Speaker Management / DSPSKU: OB/PRO/MAR99

The DX1.5 is a 2 input 6 output digital loudspeaker management system for use in both live applications and fixed installations. Based on a processing platform running at 96kHz the DX1.5 offers unrivalled performance and flexibility.

The DX1.5 has standard routing matrix configurations, such as 2 x 3-way, as well as flexible routing allowing any output to be fed from any input or sum of inputs. Each output consists of a high and low filter, 9 bands of parametric equalisation, limiter delay (adjustable in 0.3µs steps), gain and polarity.

INPUTS 2 electronically balanced
IMPEDANCE >10k ohms analogue
CMMR >65dB 50Hz – 10kHz
OUTPUTS 6 electronically balanced
SOURCE IMP <60 ohms analogue
MIN LOAD 600 ohms analogue
MAX LEVEL 20dBm into 600 ohm
FREQUENCY RESPONSE 20Hz-20kHz ± 0.5dB, -3dB @ 32kHz
DYNAMIC RANGE >116dB 20Hz-20kHz unweighted
DISTORTION <0.02% @ 1kHz, 18dBm
MAXIMUM DELAY 650ms (Increment 0.3µs)
INPUT GAIN 6dB to -40dB in 0.1dB steps
OUTPUT GAIN 15dB to -40dB in 0.1dB steps plus mute

PARAMETRIC EQUALISATION

FILTERS 8 per input / 9 per output
FILTER GAIN 15dB to -30dB in 0.1dB steps
FREQUENCY RANGE 19.7Hz – 32kHz, 1/36 octave steps
FILTER Q / BW 0.4 to 128 / 2.5 to 0.008

Sections switched to shelving response:

LOW FREQUENCY 19.2Hz – 1kHz
HIGH FREQUENCY 1kHz – 32kHz
SHELF GAINS ±15dB in 0.1dB steps

HIGH AND LOWPASS FILTERS

FILTERS 1 of each per output
FREQUENCY RANGE (HPF) 10Hz – 16kHz, 1/36 octave steps
FREQUENCY RANGE (LPF) 35Hz – 22kHz, 1/36 octave steps

RESPONSES

1ST ORDER 6dB/Oct
BESSEL/BUTTERWORTH/ 12, 24 and 48dB/Oct
LINKWITZ-RILEY
BESSEL/BUTTERWORTH 18dB/Oct

LIMITERS

THRESHOLD 22dBu to -10dBu
ATTACK TIME 0.3ms to 90ms
RELEASE TIME 2/4/8/16/32 x Attack time
DISPLAY 2 x 24 character blue LCD
INPUT METER 2 x 4 point, -24dB to digital clip
OUTPUT METER 6 x 4 point, -24dB to 4dB into limit

CONNECTORS

INPUTS 3 pin female XLR
OUTPUTS 3 pin male XLR
EXTERNAL 9 pin D-type connector (RS232)
POWER 3 pin IEC
POWER 60V to 250V ±15% @ 50/60Hz
CONSUMPTION <30 watts
LATENCY 1.5ms (analogue in – analogue out @ 96Hz)
DIMENSIONS (W) 482mm x (H) 44mm x (D) 300mm
(W) 19ins x (H) 1.75ins (1U) x (D) 11.8ins
WEIGHT 3.3kg (7.3lbs)
