£2,400.00 Inc VAT

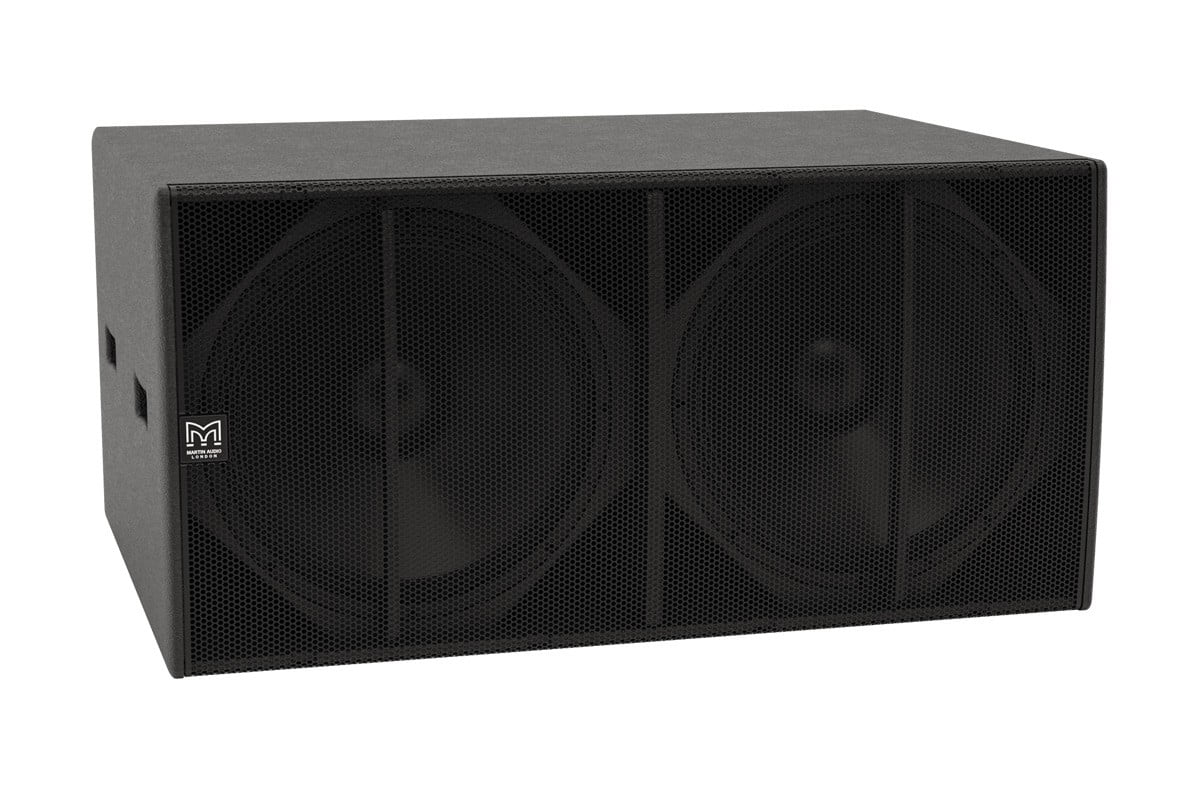

2 x 18″ Dual Driver Subwoofer
The CSX218 achieves the ultimate in subwoofer performance for the most prestigious CDD Series applications – delivering very high output levels and superb transient performance with minimal distortion. With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES, and has a magnet structure and suspension engineered for maximum linear excursion.
The enclosure of the CSX218 is constructed from high-density MDF and coated with hard-wearing textured paint. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage with minimal obstruction of airflow.
Finished in black (RAL9005) or white (RAL9016) as standard, the CSX218 can be supplied in any RAL colour to order and it can be supplied fitted with optional flying points.
When used with CDD full-range systems, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.
TYPE Dual-driver, direct radiating subwoofer
FREQUENCY RESPONSE (1) 35Hz-150Hz ± 3dB, -10dB @ 30Hz
DRIVER 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER (2) 2000W AES, 8000W peak
RECOMMENDED AMPLIFIER MA9.6K, MA12K
SENSITIVITY (3) 105dB
MAXIMUM SPL (4) 138dB continuous, 144dB peak
NOMINAL IMPEDANCE 4 ohms
DISPERSION (-6dB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE 330 litre high-density MDF
FINISH Black or white textured paint
PROTECTIVE GRILLE Black or white perforated steel
CONNECTORS Low profile 20A push-lock
PIN CONNECTIONS Left to right: Input , Input -, Link -, Link
FITTINGS Four pocket handles
DIMENSIONS (W) 1085mm x (H) 530mm x (D) 780mm* (W) 42.7ins x (H) 20.9ins x (D) 30.7ins*
*905mm (35.6ins) with wheels
WEIGHT 84kg (185lbs)
