£2,995.00 Inc VAT
Compact, Direct Radiating Powered Subwoofer

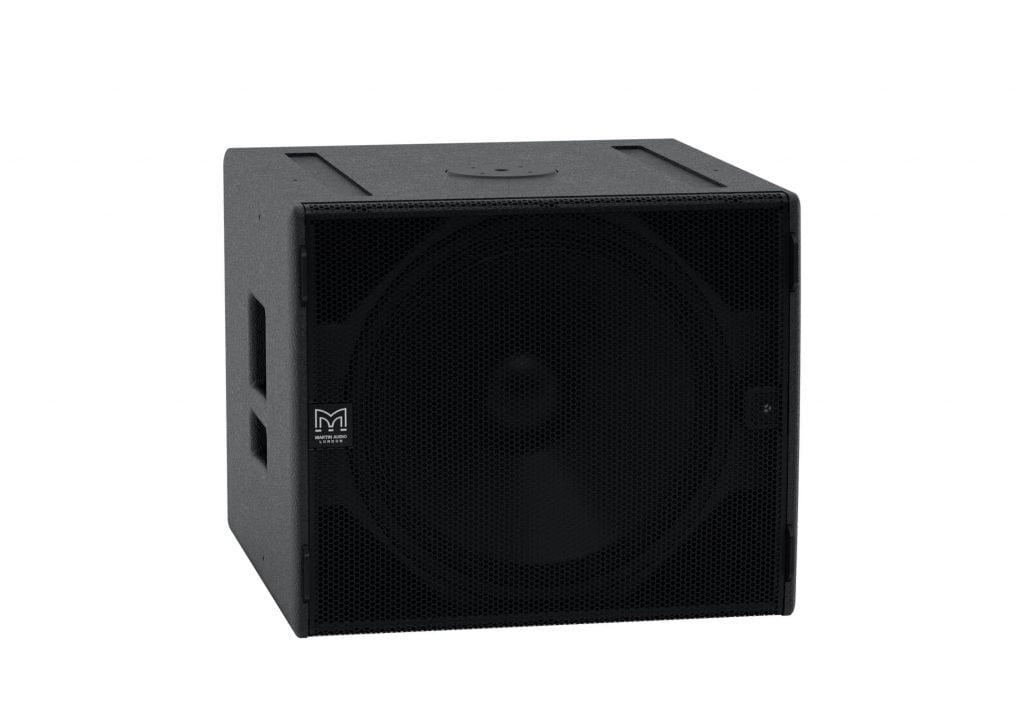

The CSX-LIVE 118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE full-range system to 35Hz — providing exceptional low frequency impact and increasing headroom. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure.
The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a maximum SPL capability of 135dB peak at 1 metre, the CSX-LIVE 118 is the ideal subwoofer for theatre and portable live sound applications, as well as premium installations that require the maximum output from a compact enclosure.
A self-powered system, the CSX-LIVE 118 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W peak output to the driver, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.
For simple set-ups, ‘plug-and-play’ presets for operation with the CDD-LIVE 8, 12 or 15 — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. Additional presets provide the appropriate settings for the rear-facing subwoofer in a cardioid pair.
As an alternative to its analogue inputs, the CSX-LIVE 118 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.
The enclosure is constructed from multi-laminate plywood with a durable polyurea coating and equipped with a perforated steel grille, twin grab handles, skids, M10 flying inserts and a threaded pole socket.
|TYPE||Compact, direct radiating powered subwoofer|
|43Hz – 150Hz ±3dB, -10dB @ 38Hz|
|DRIVER||18” (460mm)/4” (100mm) voice coil, long excursion, |
ferrite magnet, waterproof cone
|INPUT SENSITIVITY||-30dBu for 100dB SPL|
|MAXIMUM SPL (4)||132dB continuous / 135dB peak|
|DISPERSION||Omnidirectional / or Cardioid (paired)|
|CROSSOVER||Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)|
|CONNECTORS||Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon|
|ANALOGUE INPUT IMPEDANCE||20 kΩ balanced to ground|
|MAXIMUM ANALOGUE INPUT LEVEL||24.6 Vpp ( 21dBu), over voltage protected|
|Internal Processing||Multi-channel DSP, programmable via TCP/IP using VU-Net software|
Up to 48dB/Oct LPF
Up to 200ms input delay
Pre-set selection via rear panel switch
|CONNECTORS||2 x Neutrik® Ethercon|
|PROTOCOL||TCP/IP and UDP/IP|
|TYPE||2 channel switch-mode, class D,|
|PEAK OUTPUT POWER||2000W total|
|MAXIMUM AMBIENT TEMPERATURE||40°C (104°F) for full output|
|TYPE||Switch mode, fixed frequency with PFC|
|AC INPUT OPERATING RANGE||85 – 265V ~ AC, 50 – 60Hz|
|POWER FACTOR||> 0.98|
|NOMINAL POWER CONSUMPTION||125W|
|MAINS CONNECTOR||Neutrik® Powercon True1|
|ENCLOSURE||Extensively braced multi-laminate plywood.|
|FINISH||Textured black PU coating.|
|PROTECTIVE GRILLE||HEX perforated mild steel with protective zinc plating|
and black powder coat finish.
|FITTINGS||Two skids on base, with mating channels on top|
Four rear-mounted 100mm (4in) castors
M20 top-mounted thread plate for pole mounting
16 x M10 mounting points
2x Bar handles, 1 on each side
4x fittings for optional transit cover
Optional weather protection cowl
|IP RATING||IP24 factory option available|
|DIMENSIONS||(W) 600mm x (H) 509mm x (D) 632mm (760mm including castors)|
(W) 23.62in x (H) 20.04in x (D) 24.86in (29.90in including castors)
|WEIGHT||50kg (110lbs) excluding Transit cover|
