£2,640.00 Inc VAT
Compact, Coaxial Differential Dispersion Powered 2-way System
The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure.
With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements — from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.
A self-powered system, the CDD-LIVE 12 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W LF 500W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.
DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.

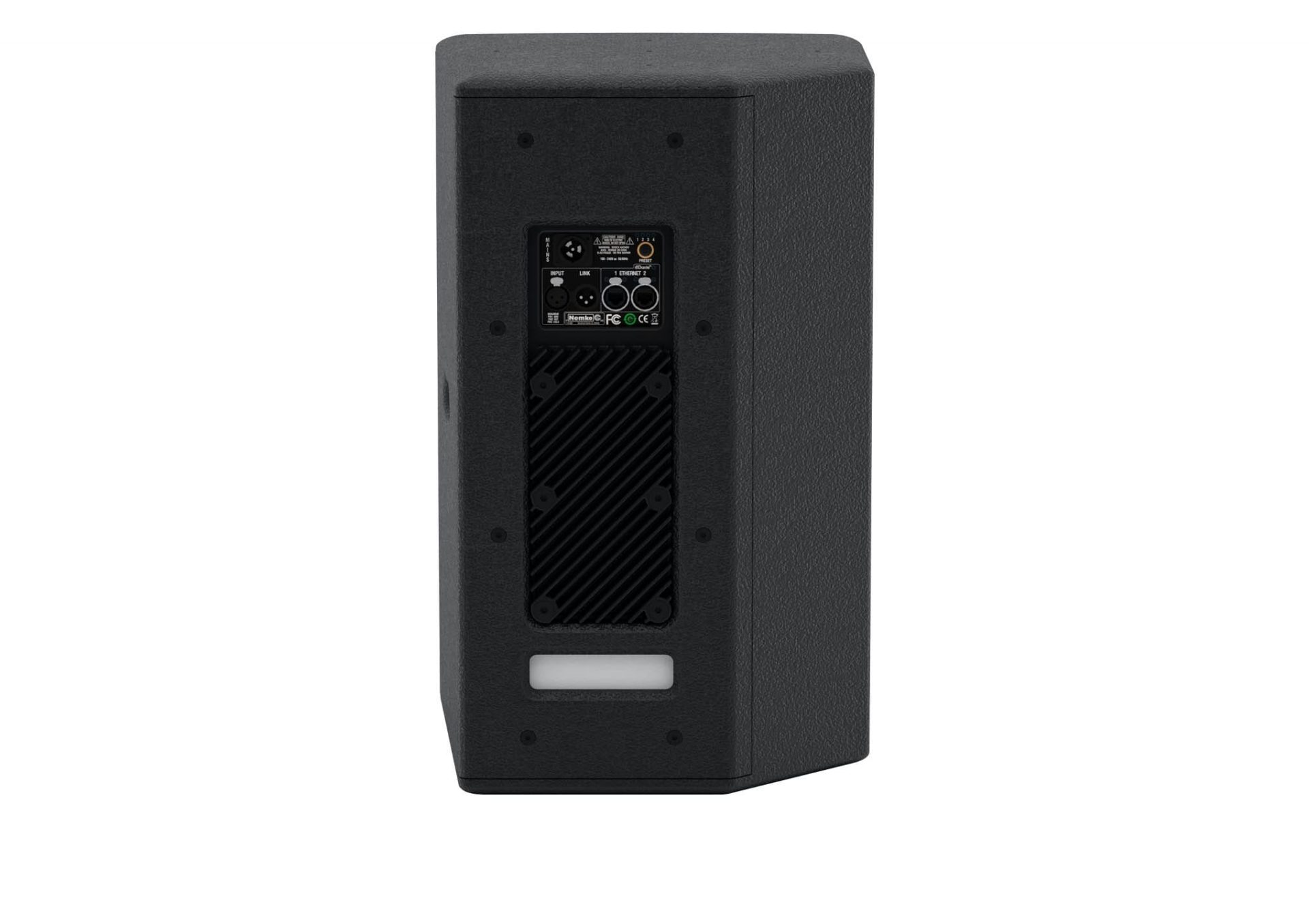

For simple set-ups, ‘plug-and-play’ presets — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. As an alternative to its analogue inputs, the CDD- LIVE 12 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.

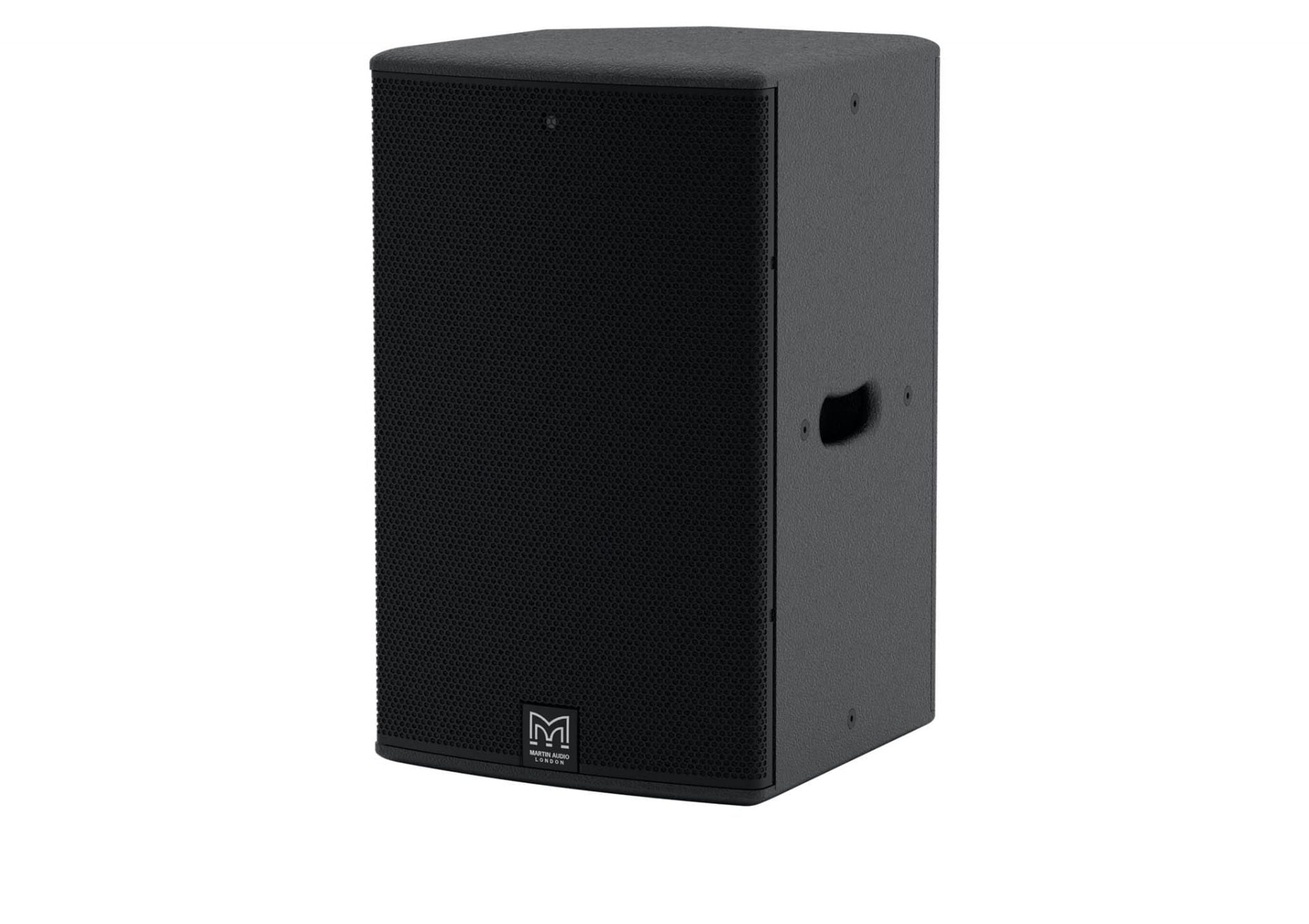

The CDD-LIVE 12 is incredibly versatile. Its multi-angle enclosure can be used in either horizontal or vertical orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The tour-grade enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. Integral fittings include a top-hat for pole mounting and multiple M8 inserts for attachment to a wall-bracket, yoke or universal bracket with a wide range of up and down tilt angles.
|TYPE||Compact, Coaxial Differential Dispersion powered two-way system|
|62Hz – 20kHz ±3dB, -10dB @ 50Hz|
|DRIVER||LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF|
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
|INPUT SENSITIVITY||-30dBu for 100dB SPL|
|MAXIMUM SPL (2)||122dB continuous / 128dB peak|
|DISPERSION||110˚-60˚ horizontal, 60˚ vertical (user-rotatable)|
|CROSSOVER||1.5kHz Active LR8 with low latency HF FIR equalisation|
Balance presets for pole mount/ pole mount with sub/ stage monitor
|CONNECTORS||Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon|
|ANALOGUE INPUT IMPEDANCE||20 kΩ balanced to ground|
|MAXIMUM ANALOGUE INPUT LEVEL||24.6 Vpp ( 21dBu), over voltage protected|
|Internal Processing||Multi-channel DSP, programmable via TCP/IP using VU-Net software|
Up to 48dB/Oct HPF
Low latency HF FIR filters
Up to 200ms input delay
Pre-set selection via rear panel switch
|PROTOCOL||TCP/IP and UDP/IP|
|TYPE||2 channel switch-mode, class D,|
Bridged Tied Load 1 channel switch-mode, class D
|PEAK OUTPUT POWER||2500W total|
2000W LF, 500W HF
|COOLING||External convection cooled, with internal fan|
|MAXIMUM AMBIENT TEMPERATURE||40°C (104°F) for full output|
|TYPE||Switch mode, fixed frequency with PFC|
|AC INPUT OPERATING RANGE||85 – 265V ~ AC, 50 – 60Hz|
|POWER FACTOR||> 0.98|
|NOMINAL POWER CONSUMPTION||160W|
|MAINS CONNECTOR||Neutrik® Powercon True1|
|ENCLOSURE||Extensively braced multi-laminate plywood.|
|FINISH||Textured black PU coating.|
|PROTECTIVE GRILLE||HEX perforated mild steel with protective zinc plating and black powder|
coat finish. Backed with black grille cloth.
|FITTINGS||Top hat for pole mounting|
15 x M8 mounting points
Two side pocket handles
Optional weather protection cowl
|IP RATING||IP24 factory option available|
|DIMENSIONS||(W) 359mm x (H) 580mm x (D) 373mm|
(W) 14.13in x (H) 22.83in x (D) 14.69in
|WEIGHT||28kg (61.6lbs) excluding Transit cover|
Optional wall, yoke and universal brackets
