Kramer VP-419xl

Call for price

Video to Computer Graphics Video/HDTV ProScale™ Digital Scaler

Computer or HDTV Output
VGA Input − Pass−Through
Multi−Standard − NTSC & PAL
Built−In Proc−Amp
3D Comb Filter
3:2 Pull Down
Control − IR Remote
Rack Kit − RK−1

Category: Switchers / ScalersSKU: OB/AV/SW/KRA86

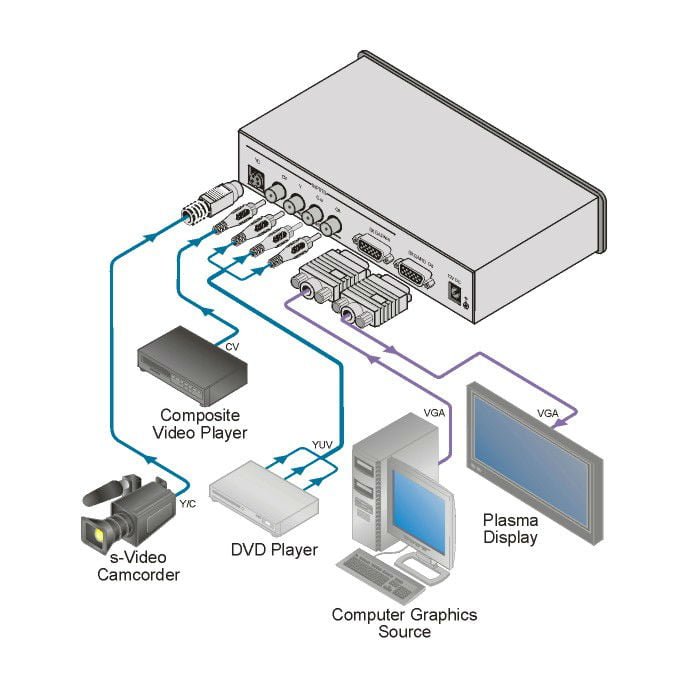

The VP−419xl is a high−performance digital scaler for composite, s−Video and component (480i/576i) video signals. It scales a video input to a selectable computer graphics video or HDTV output resolution.

Computer Graphic Output Resolutions – 640×480, 800×600, 1024×768 and 1280×1024.
HDTV Compatible.
HDTV Output Resolutions – 480p, 576p, 720p and 1080i.
Multi-Standard – NTSC & PAL−B/G/I/D.
Built-in Proc Amp – Color, hue (NTSC only), sharpness, contrast, and brightness.
3D Comb Filter.
3:2 Pull Down Video Processing – Auto detection.
Multiple Aspect Ratio Selections – 4×3 or 16×9.
Digital Noise Reduction.

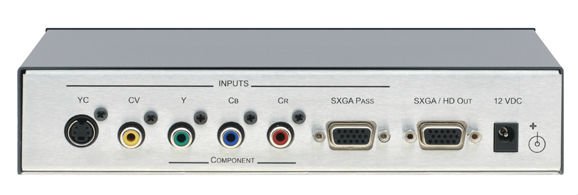

Computer Graphics/HDTV (15-pin HD) Pass-thru.

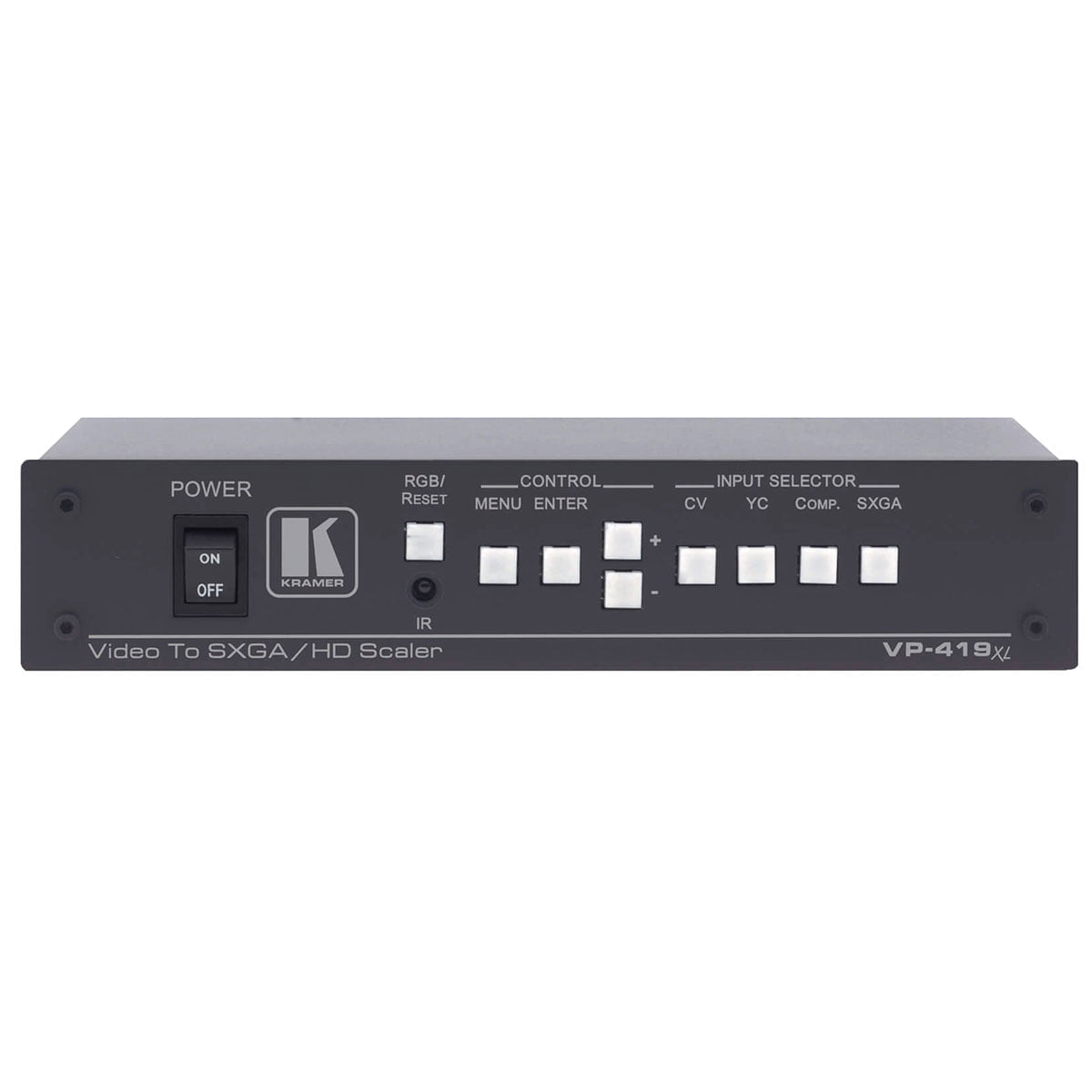

Flexible Control Options – Front panel buttons, IR remote (with on−screen menus).
Desktop Size – Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 adapter.

INPUTS:	4 HDMI connectors (HDMI, HDCP version 1.1), 2 VGA on a 15−pin HD connector, 2 composite video on an RCA connector, 2 component video each on 3 RCA connectors, Unbalanced stereo audio on 10 3−pin terminal block connectors.
OUTPUTS:	1 RGBHV on 5 BNC connectors, 1 HDMI connector (HDMI, HDCP version 1.1), 1 VGA on a 15−pin HD connector, 1 S/PDIF on an RCA connector, 1 analog stereo audio on 2 RCA connectors.
H FREQUENCY:	15.63−90kHz.
V FREQUENCY:	50−100Hz.
RGB SYNCS:	H and V TTL separated syncs.
RGB LEVEL:	1.2Vpp max, 75W load.
XGA OUT LEVEL:	1.2Vpp max, 75W load.
S/PDIF OUT LEVEL:	0.55Vpp constant.
OUTPUT RESOLUTIONS:	720p60, 1080i60, 1080p60, 576i, 576p, 720p50, 1080i50, 1080p50, 1280×800, WXGA, WSXGA, WXGA , WUXGA, NATIVE, VGA, SVGA, XGA, SXGA, SXGA , UXGA, 480i, 480p, 1600×900, 2048×1080/50Hz, 2048×1080/60Hz.
CONTROLS:	CV 1, CV 2, component 1, component 2, PC 1, PC 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4, input selector buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS−232, IR, Ethernet.
POWER SOURCE:	100−240V AC, 25VA max.
OPERATING TEMPERATURE:	0° to 55°C (32° to 131°F).
STORAGE TEMPERATURE:	−45° to 72°C (−49° to 162°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	19″ x 7″ x 1U (W, D, H) rack mountable.
WEIGHT:	2.7kg (6lbs) approx.
ACCESSORIES:	Power cord, rack ears, IR remote control.
