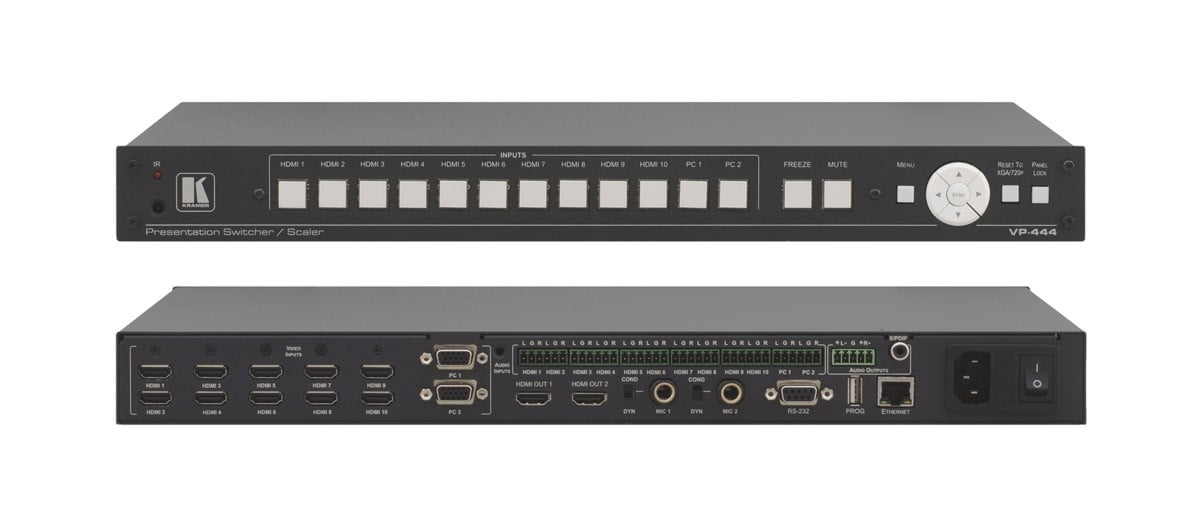

The VP−444 is a high−performance presentation scaler/switcher for HDMI and computer graphics signals. The unit scales the video, embeds the audio, and outputs the signal to two HDMI (with embedded audio) outputs (with S/PDIF and balanced stereo audio) simultaneously.
Kramer’s PixPerfect™ Scaling Technology – Kramer’s precision pixel mapping and high−quality scaling technology. High−quality 3:2 and 2:2 pull down de−interlacing and full up and down scaling of all video input signals.

HDTV Compatible.
HDCP Compliant.

• Video Inputs – 10 HDMI & 2 computer graphics video on 15−pin HD connectors.
• Scaled Outputs – 2 HDMI.
• 22 Output Resolutions – Up to WUXGA/1080p.
• 2 Microphone Inputs – For mixing, switching or talk−over (with 48V phantom selection).
• Companion AFV (Audio-Follow-Video) – Stereo audio for every input (on terminal blocks).
• Audio Inputs – 12 unbalanced stereo on terminal blocks & embedded audio for HDMI inputs, each with individual level controls.
• Audio Outputs – 1 S/PDIF on an RCA connector, 1 balanced stereo audio on a terminal block, embedded audio on the HDMI outputs.
• Multiple Aspect Ratio Selections – Full, overscan, underscan, letterbox & panscan.
• Audio DSP – Powerful digital audio signal processing, including audio equalization, mixing, delay, etc.
• Built-in ProcAmp – Color, hue, sharpness, noise, contrast & brightness.
• Color Sampling – Supports 4:4:4 (RGB and YUV) as well as 4:4:2 (YUV) color sampling.
• Constant Output Sync – No disruption on the output while switching between inputs and when no video is detected.
• Front Panel Control – Audio mute & freeze frame.
• Built-in Web Pages.
• Front Panel Lockout.
• Non-Volatile Memory – Saves final settings.
• Flexible Control Options – Front panel, IR remote with OSD (on−screen display), Ethernet with built−in Web pages & RS−232.
• Worldwide Power Supply – 100−240V AC.
• Size – Standard 19″ (1U). Rack “ears” included.

INPUTS: 10 HDMI connectors (HDMI, HDCP version 1.1), 2 VGA on a 15−pin HD connector, 1 unbalanced stereo audio on 12 3−pin terminal block connectors, 2 mic on 6mm jack connectors (with selectable 48V phantom power).

OUTPUTS: 2 HDMI connectors (HDMI, HDCP version 1.1), 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 5−pin terminal block connector.

BANDWIDTH: Up to 1080p, UXGA.

SWITCHING TIME BETWEEN INPUTS: 2 to 3 seconds.

VIDEO LATENCY: Less than 2 frames.

OUTPUT RESOLUTIONS: Native, 640×480 @60Hz, 800×600 @60Hz, 1024×768 @60Hz, 1280×768 @60Hz, 1360×768 @60Hz, 1280×720 @60Hz, 1280×800 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1400×1050 @60Hz, 1680×1050 @60Hz, 1600×1200 @60Hz, 1920×1080 @60Hz, 1920×1200 @60Hz, 480p @60Hz, 720p @60Hz, 1080i @60Hz, 1080p @60Hz, 576p @50Hz, 720p @50Hz, 1080i @50Hz, 1080p @50Hz.

CONTROLS: HDMI 1 to HDMI 10 and PC 1 to PC 2 input selector buttons, Freeze, Mute buttons, Menu and navigation buttons, Reset to XGA/720p and lock buttons, RS−232, IR, Ethernet (OSD and Web pages), USB for firmware upgrading.

POWER CONSUMPTION: 100−240V AC, 22VA max.

OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F).

STORAGE TEMPERATURE: −40° to 70°C (−40° to 158°F).

HUMIDITY: 10% to 90%, RHL non−condensing.

DIMENSIONS: 19″ x 7″ x 1U (W, D, H) rack mountable.

WEIGHT: 2.7kg (6lbs) approx.

INCLUDED ACCESSORIES: Power cord, rack ears, IR remote control.
