Ultra miniaturized line-array element

The KZ12 is a remarkable ultra micro line array designed for discreet use in a variety of situations

K-Array
Tag: Category: SKU: SP/LOW/KAR21

The rugged enclosure contains a line array of 4 x 0.5” longexcursion, full range drivers housed in a sleek case built around a super strong chassis.

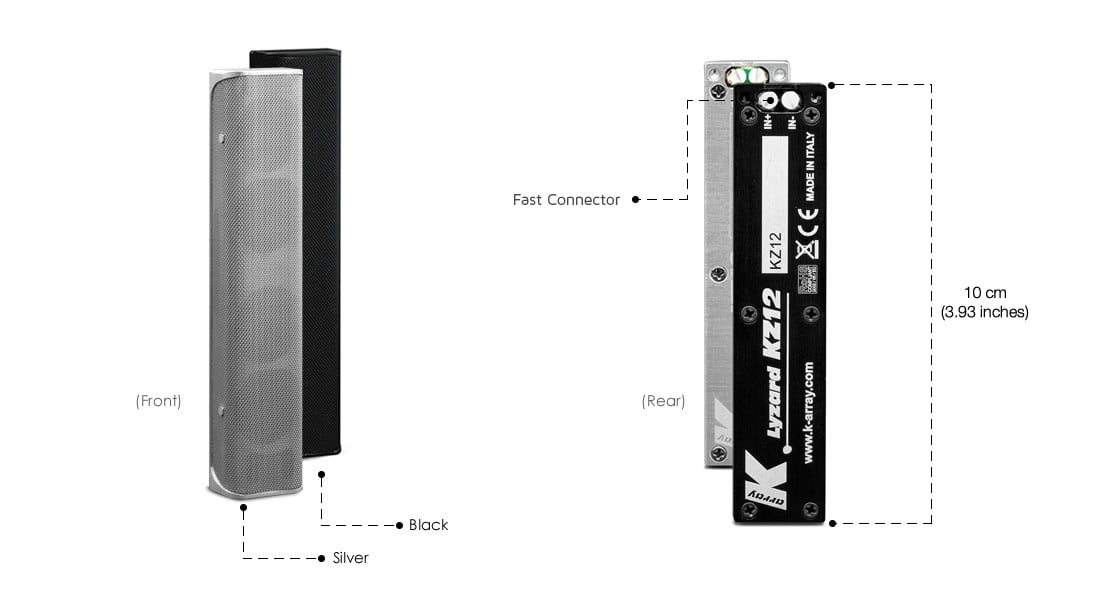

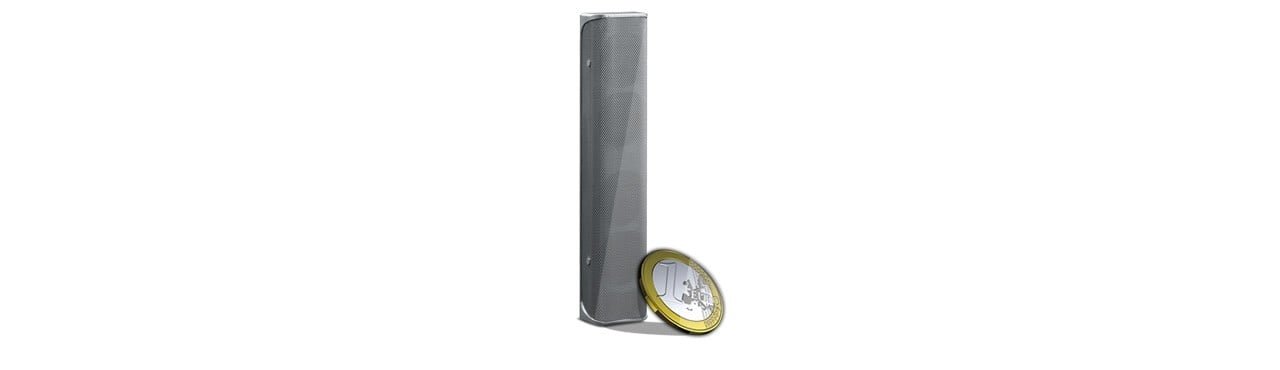

The KZ12 weighs a mere 46g and measures 2.2 x 10 x 1.2 cm

Features

  • Wide range frequency response
  • Integrated connector
  • Full aluminum ultra strong frame
  • High dynamic range capability
  • Weather proof, suitable for outdoor installations – IP54

Applications

  • Background music systems in restaurants and clubs
  • Exhibit audio for museum displays
  • Space-sensitive fill for broadcast

Acoustics
Power handling 8 W
Impedence 16 Ohm
Frequency range
350 Hz – 18 KHz /- 3 dB
Maximum SPL
95 dB continuous – 102 dB peak

Coverage
Horizontal 140°
Vertical 20°

Crossover
Type External Crossover required
Frequency 250 Hz, 24 dB/oct suggested minimum

Transducers
Full-range 4×0.5″ Neodymium magnet with 0.5″ voice coil

Dimension
Dimensions 2.1 x 10 x 2 cm (0.83″ x 3.94″ x 0.47″)
Weight 49 g (0.10 lbs)

Brand

K-Array

K-Array
