£360.00 Inc VAT

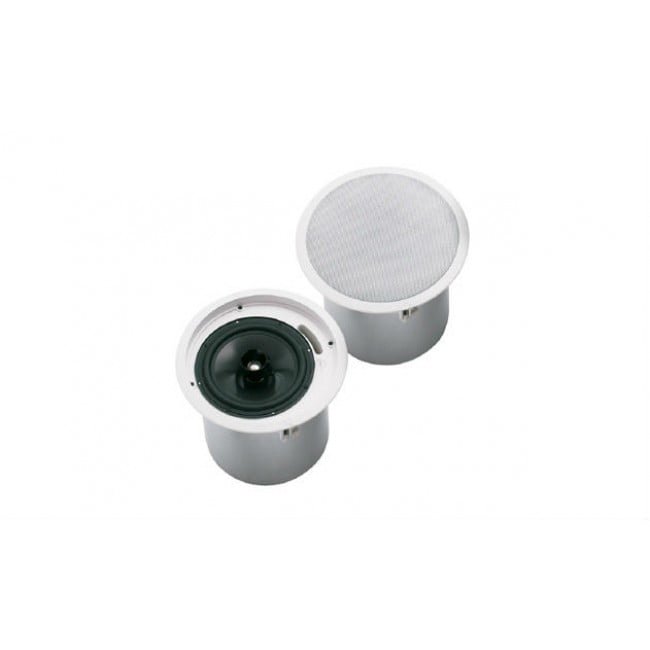

PRICED AND PACKAGED AS A PAIR

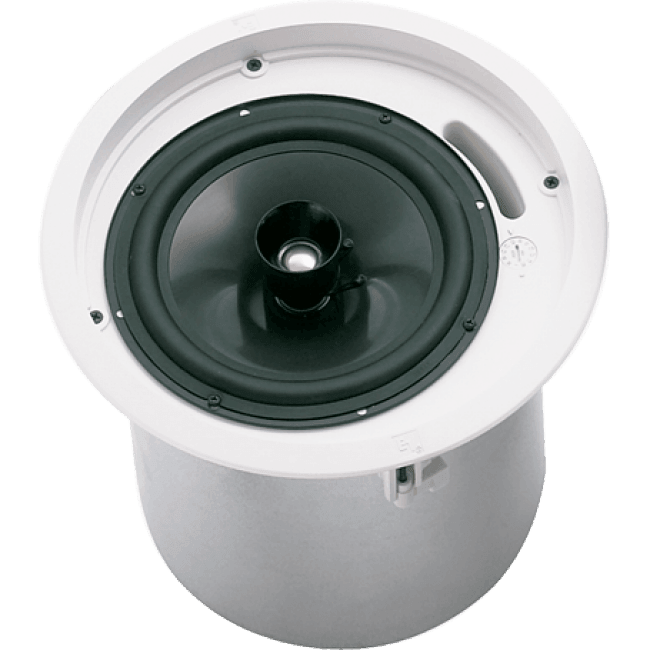

  • 8-inch two-way coaxial ceiling loudspeaker
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • White
EV
Category: SKU: SP/HVL/EV09
  • Low-profile for rich sound in tight spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

PRICED AND PACKAGED AS A PAIR

Chassis Size 203.2 mm (8)
Color White (paintable surface)
Coverage (Nominal -6 dB) 110 conical
Diameter (Max) 270 mm (10.63)
Input Formats 8 Ω, 70 V, 100 V
Mounting Systems Integrated 3-point toggle anchors
Speaker Type Ported cabinet, internally damped, two-way (passive crossover included)
Transformer Yes
Transformer Taps (Transformer Version Only) (1.88 – 70 V only), 3.75, 7.5, 15, 30
Frequency Response (-10 dB) 50 – 20000 Hz
Sensitivity 1 W/1 m 91 dB
System Power Handling (Continuous/Program/Peak) 100 Watts Overload Protected
LF Transducer 8-inch polypropylene cone
HF Transducer 1-inch (25 mm) Ti Mylar Laminate Dome
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Outdoor No
Grill Powder-coated steel
Height 178 mm (7.01)
Weight Net 5 kg (11.02 lbs)

Brand

Electro-Voice

EV
