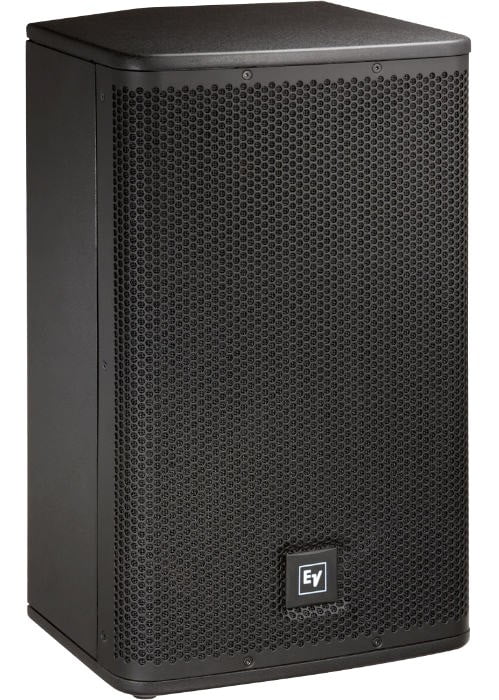

Powered 12″ 2-way full-range speaker 50 Hz – 20 kHz frequency range Lightweight, cool-running 1000 W Class D amp Bypassable high-pass for external subwoofer XLR, TRS (jack), and RCA (phono) connections Versatile gain, mixing, and processing controls Pre- or post-mix parallel outputs
Clear, powerful, and musical, the Live X series was born to command the stage for professional music performance. Available in both powered and passive versions, Live X loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, Live X loudspeakers are housed in hardy stackable enclosures of solid wood, making them lighter than comparable-quality composite or plastic boxes and therefore easier to load, transport, and set up. With high output, extended frequency range, and high sensitivity, Live X loudspeakers are clean, flat, and hot, making music of all kinds sound its best. The Live X series is serious gear for serious sound.

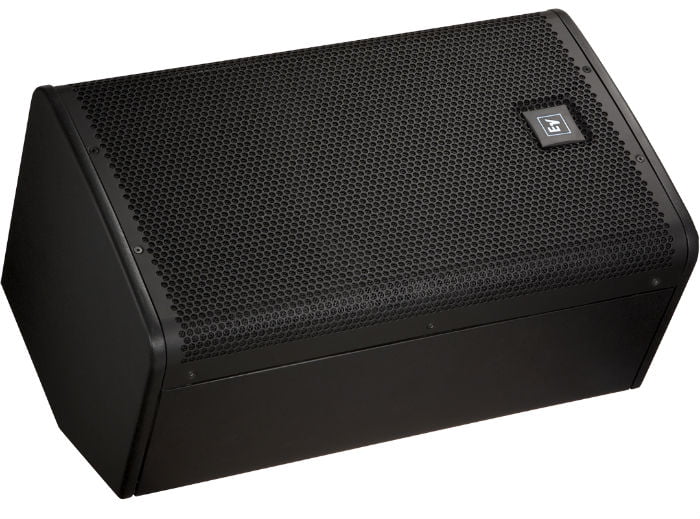

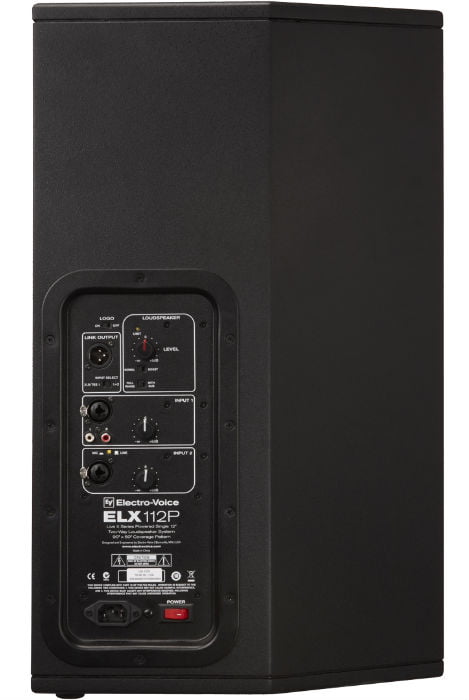

ELX112 performance with self-amplification 50 Hz – 20 kHz frequency range Lightweight, cool-running 1000 W Class D amp Biamped with 24 dB/octave crossover Transducer protection Bypassable high-pass for external subwoofer XLR, TRS, and RCA connections Versatile gain, mixing, and processing controls Pre- or post-mix parallel outputs

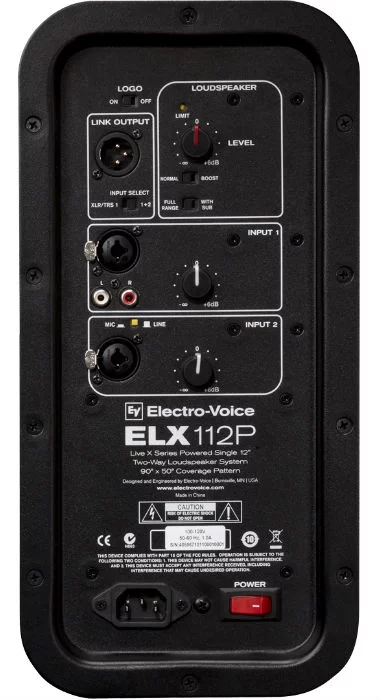

Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint Nominal Impedence 8 Ohms Frequency Response (-3 dB) 85 – 17000 Hz Frequency Response (-10 dB) 50 – 20000 Hz Internal Crossover Yes Sensitivity 1 W/1 m 99 dB Max. SPL/1m (calc) 128 dB Coverage (Nominal -6 dB) H 80 deg Coverage (Nominal -6 dB) V 55 deg System Power Handling (Continuous/Program/Peak) 250 Watts LF Transducer (1) EVS-12K, 305mm (12″) Woofer HF Transducer DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver Crossover Frequency 1.7 k Hz Connector Type Parallel Neutrik’ NL4, (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output Grill 18GA Steel with Black Powdercoat Height 546 mm (21.5″) Width 361 mm (14.21″) Depth 245 mm (9.65″) Weight Net 12.9 kg (28.44 lbs)
