Christie LX801i-D
Christie LX801i-D - Image 2
Christie LX801i-D - Image 3
Christie LX801i-D - Image 4
Christie LX801i-D - Image 5
Christie LX801i-D - Image 6
Discontinued

3LCD single-lamp digital projector

  • XGA resolution
  • 8,000 lumens – brightest single-lamp in XGA
  • Simple integration with third-party control systems
  • Exceptional image quality
  • Reliability and versatility
  • Ease of use and maintenance

Please note,  This product is for body only. Lens is not included, please call for options.

Tag: Category: SKU: PR/LCD/CHR114

Christie® D Series expands our existing 3LCD projection family by broadening our range of resolution and brightness options, as well as offering connectivity, integration with third-party systems and a variety of lens options.

With an attractively designed exterior and high-performance features, Christie D Series single-lamp projectors give you choice to meet your venue’s needs.

Whether you’re outfitting a meeting room, event space, classroom or auditorium, the Christie LX801i-D offers a collection of projectors that deliver:

  • Affordability
  • XGA resolution
  • 8,000 lumens – brightest single-lamp in XGA
  • Simple integration with third-party control systems
  • Exceptional image quality
  • Reliability and versatility
  • Ease of use and maintenance
  • Industry-leading warranties and service
  • DICOM simulation mode for training purposes
  • Brightness: 8,000 ANSI lumens
  • Contrast: 10,000:1 full on/off
  • Colours: 1.074 billion
Display technology and resolution
  • 3 x inorganic LCD 0.79″ Polysilicon TFT active matrix
  • 1024 x 768
  • 4:3

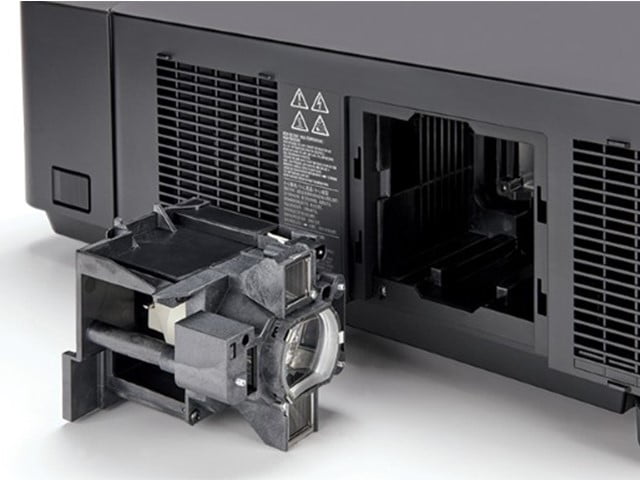

Lamp
  • 430W UHP lamp
  • Standard mode: 2,000 hours
  • Eco mode: 4,000 hours
  • Portrait mode: 1,000 hours

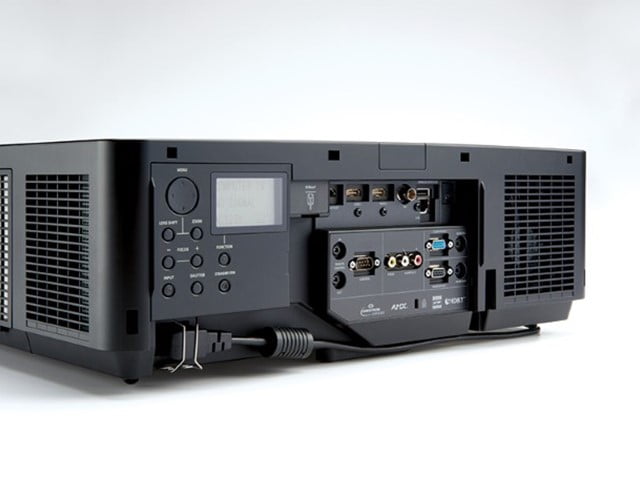

Inputs
  • HDMI connector x 2
  • DisplayPort x 1
  • HDBaseT x 1
  • D-sub 15 pin (RGB & Component ) x 1
  • Composite video x1
  • USB type A connector x 1 (for wireless USB dongle)
Signals
  • HDTV formats VGA through to WUXGA (1920 x 1200)
  • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
  • 27 ~ 150 MHz
Outputs, control and networking
  • Monitor out D-sub 15 pin (RGB) x 1
  • D-sub 9 pin x 1 (RS232c)
  • HDBaseT (X1*used in standard inputs)
  • RJ45 Ethernet (10/100)
  • Wired Remote Jack (3.5stereo mini) x 1
Standard accessories
  • Power cord (US cord, 3m) x 1
  • (Euro code, 3m) x 1 and (UK cord, 3m) x 1
  • Power cord (China cord, 3m) x 1 -CHINA Domestic Model Only
  • RGB Cable (2m) x 1
  • HDMI-DVI cable (0.4m) x 1

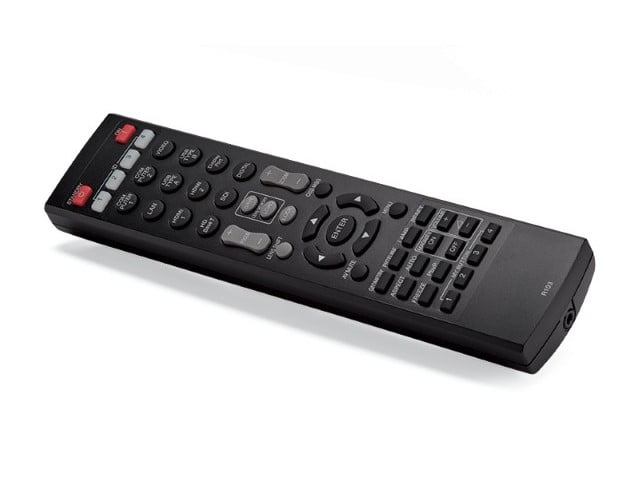

  • Wireless Remote Control Unit x 1
  • Adapter cover x 1
  • Terminal cover x1
  • HDMI cable holder x 2, Cable tie x 2
  • User’s Manual CD
Optional accessories
  • 370W UHP lamp
  • Optional wireless dongle (USB)
  • Mount
  • Cable cover for white models
  • Cable cover for black models

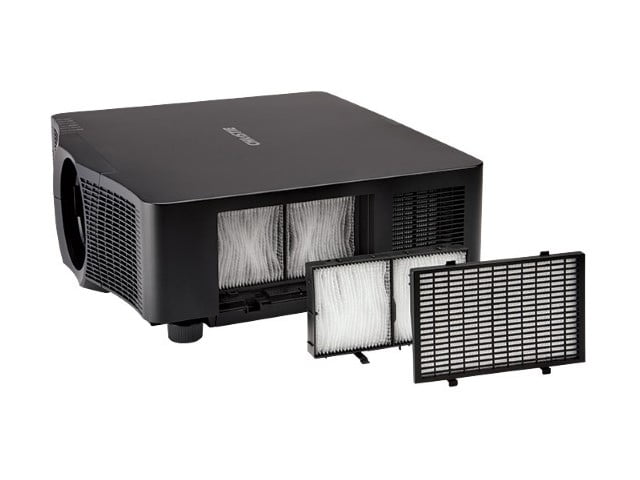

  • Replacement filter: 20,000hr
Power requirements Operating voltage

  • 100-120V AC
  • 220-240V AC @ 50/60Hz

Consumption

  • 580W 10% or less at 100-120V AC
  • 560W 10% or less at 220-240V AC

Operating current

  • 5.9A 10% or less at 100-120V AC
  • 2.9A 10% or less at 220-240V AC

Dissipation

  • 1,979 BTU/hr at 100-120V AC
  • 1,911 BTU/hr at 220-240V AC
Dimensions (LxWxH) Body without feet at min height

  • 18 x 19.6 x 6.7″ (456 x 498 x 170mm)

Shipping size

  • 22.1 x 27.7 x 12.4″ (561 x 703 x 314mm)

Weight

  • 11.1Kg (24.5lbs) (without lens)
Operating environment Noise

  • Standard mode: 40 dBA
  • Eco mode: 33 dBA

Temperature

  • Standard mode: 32-104°F (0-40°C)
  • Eco mode: 32-113°F (0-45°C)

Altitude

  • 0-10,000ft (3048m)

Humidity

  • 10-85% non-condensing
Key features
  • Single lamp
  • Blending and warping
  • Camera capable easy blend and warp with included software
  • Collaboration software included
  • Portrait capable
  • 360 on axis capable
  • OneConnect
  • eClarity
  • Advance Colour Management
  • HDCR
  • Digital image shift technology
  • HDBTTM
  • Up to 20,000 hour filter
  • ILS lens memory
  • AMX & Crestron connectivity
  • Wireless capable
  • Built-in LCD status panel
  • App management control
Limited warranty
  • Three years parts and labour (including light engine)
  • Lamp: 500 hours or one year (whichever comes first)
  • Contact an authorized Christie representative for full details of our limited warranty

Brand

Christie

With an established, respected and trusted history supplying and supporting various high-end applications with performance-driven display technologies, advanced processing, warping, media playback and network-distributed solutions for a variety of proAV applications. DM supply a range of Installed Christie Projectors - Please contact us directly for more information and a quotation.
