The Australian Monitor AMC MIX brings the front end features of our AMC Series mixer into a simple and affordable mixer solution. When reliability is everything, but the more elaborate features of the Australian Monitor MX Series Mixers are not required, the AMC MIX is the perfect choice.

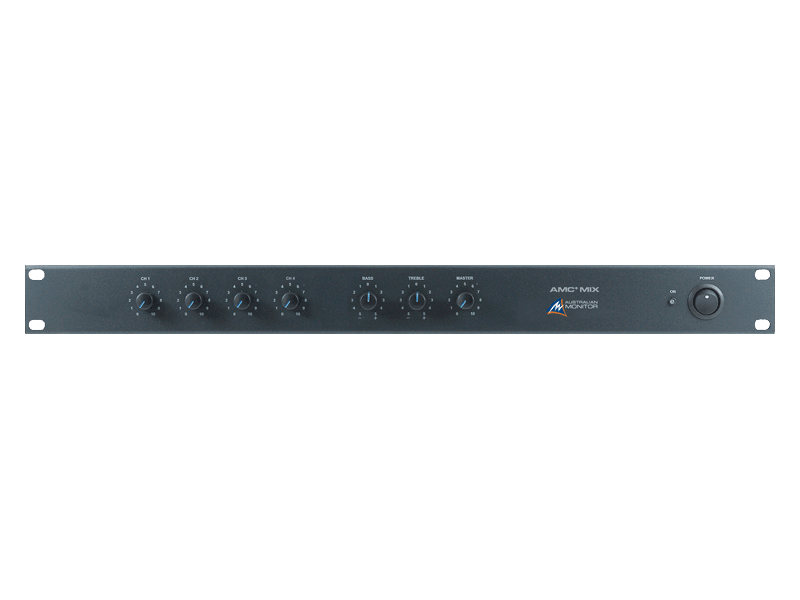

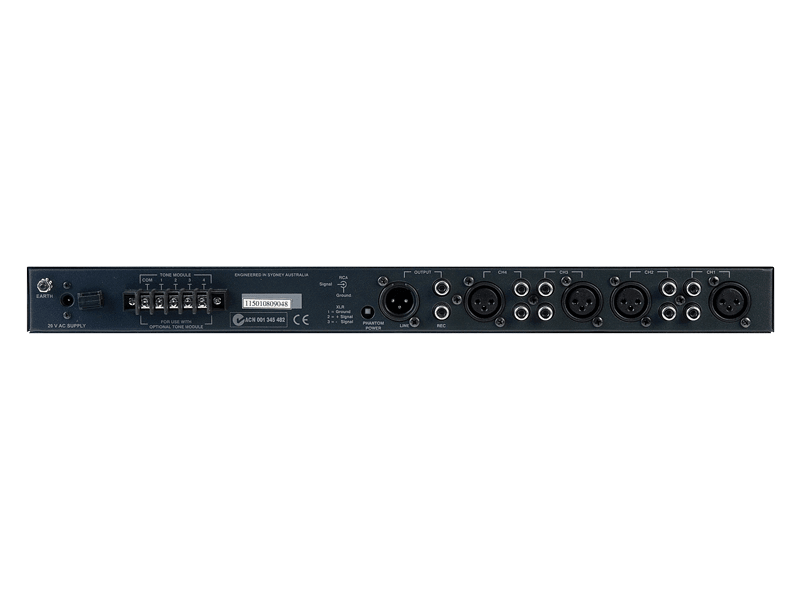

The AMC Mix is a 1RU mixer that features four universal microphone/line inputs and phantom power. Master volume and overall treble and bass controls are provided, along with vox triggered muting (defeat able) giving channel 1 priority over channels 2, 3 and 4. There is also facility to add an optional on board tone generator card.
The AMC Mix offers a low cost alternative in applications that are price sensitive but still require reliability and a high level of sound reproduction.
Frequency Response 20Hz – 20kHz ( 0,-3dB)
Total Harmonic Distortion < 0.5% @ 1kHz
Signal To Noise Ratio > 84dB (all pots at centre position)
Crosstalk > 60dB
Tone Controls Bass @ 100Hz /- 12dB
Treble @ 10kHz /- 9dB
Sensitivity Mic Sens 0.7mV, -61dBu Imp 1k3ohm
Line Sens RCA 500mV, -4dBu Imp >100kohm
Max Level in XLR mic -20dBu
Max Level out 14dBu
Outputs Master out Nominal Level 0dBu into 1kohm
Mono Rec out Nom -16dB into 10kohm
Power Input 20V AC via 2.1mm x 5.5mm barrel socket
Power Consumption (max) 7 VA
Dimensions (H x W x D) 44 x 482 x 191.5mm (1.75“ x 19” x 7.54”)
Shipping Dimensions (H x W x D) 90 x 505 x 270mm (3.5” x 19.9” x 10.6”)
Weight Net 2.5kg (5.5lb)
Shipping 3.5kg (7.7lb)
