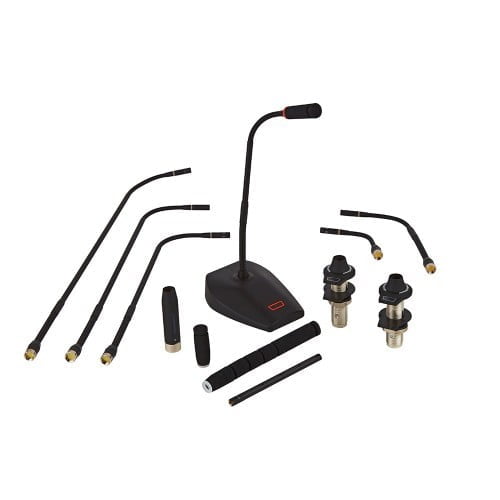

The new Engineered Sound range of install microphones have been updated for 2019 with a range of new features and combinations. The modular ES range comprises of 4 different microphone elements, 6 different length goosenecks, 4 power modules all of which are interchangeable.

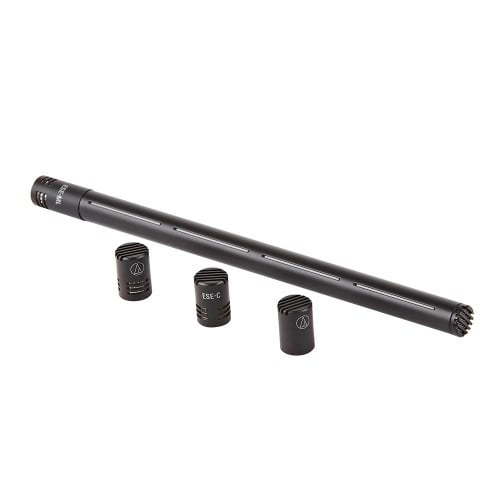

The condenser microphone elements are available as cardioid, hypercardioid, omni and MicroLine (line + gradient). The modular gooseneck sections are available in 6”, 12”, 15”, 18”, 21”, 24” lengths and have a double gooseneck design. There are 4 power options which include the ES8544 in-line module, 2 flush mount power modules (ES8755R 3-pin and ES8755RC 5-pin for remote switching), and the ES8766RC desk stand. The ES8755R, ES8755RC flush mounts and ES8766RC desk stand have an RBG LED that offers 8 colour options for when the microphone is on and off. The ES8755RC with the additional 2-pins in the XLR base can be controlled remotely.

Light Up Your Mic

Choose between desk stand and flush mount standing options, both of which feature RGB LED colour indication making life super-easy and intuitive for the user. There is also an “In-Line” power base option, ideal for mounting your gooseneck to any standard XLR3 or XLR5 connector.

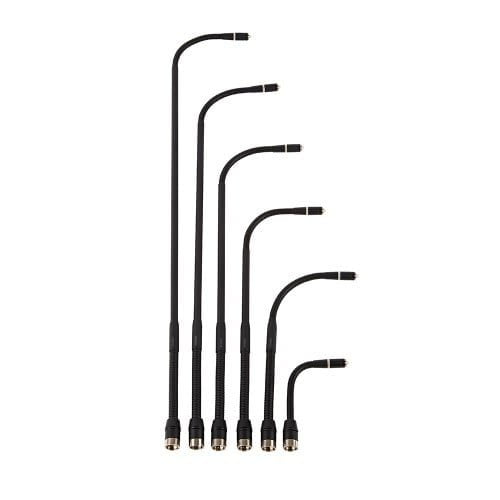

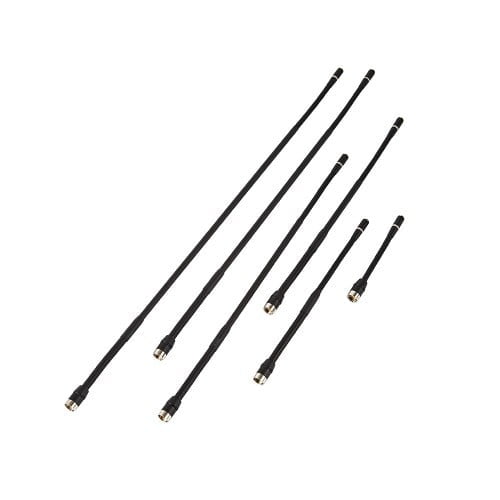

Modular Gooseneck Section

The ES925/x gooseneck sections (123 mm, 231 mm, 307 mm, 383 mm, 459 mm, 535 mm) works with any of the separately available power module types (XLR, FM3, FM5, DS5) and microphone elements (MicroLine (line + gradient), hypercardioid, cardioid, omnidirectional).

• Modular microphone system
• Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
• Available interchangeable elements permit angle of acceptance from 90° to 360°
• Interchangeable condenser microphone elements provide full-range, natural sound
• Designed for professional sound reinforcement and other commercial sound applications
• Small-diameter gooseneck design permits highly flexible positioning
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Available in six lengths

Power Options

“In-Line”

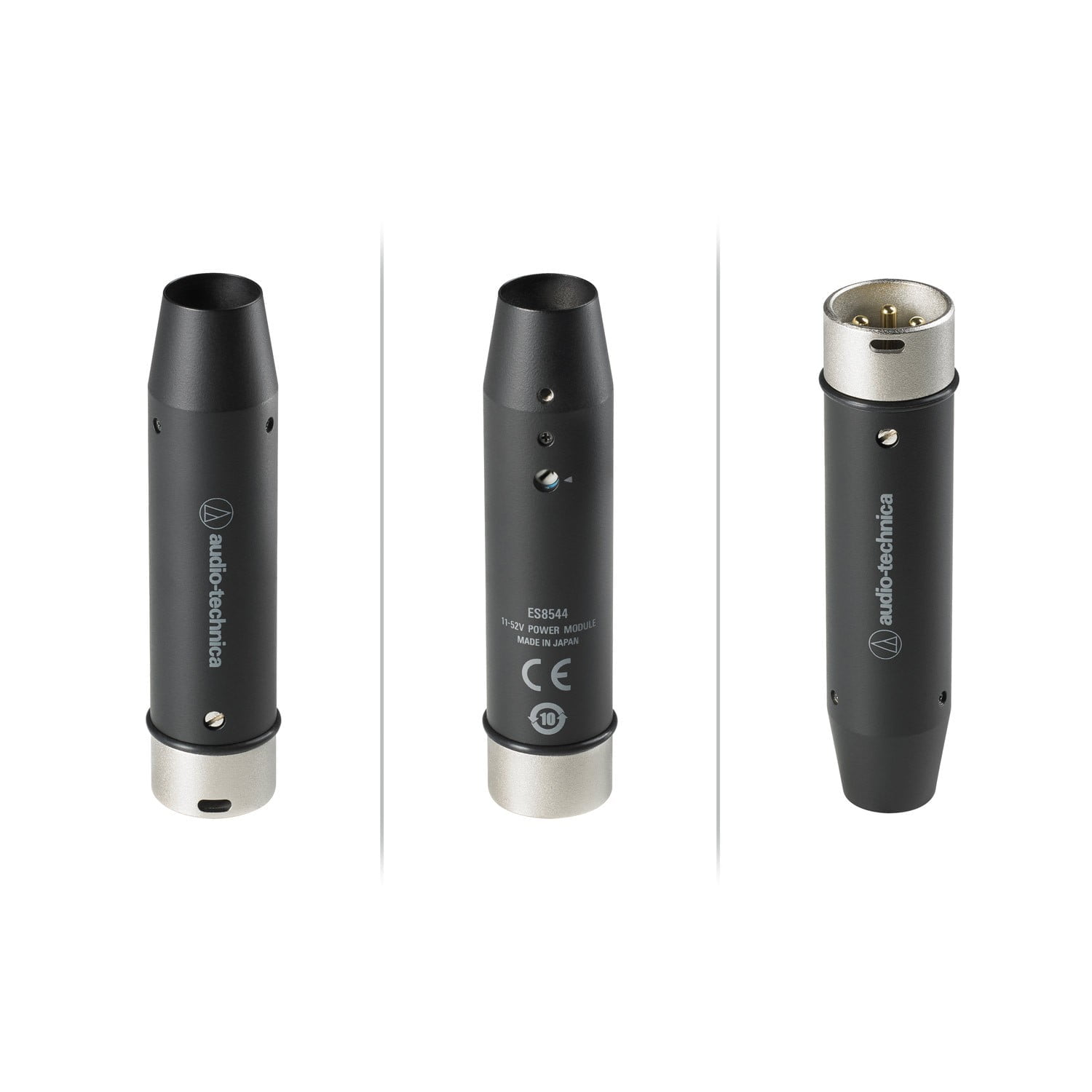

ES8544 in-line power module for ES925 modular gooseneck microphones

The ES8544 3-pin XLR power module works with ES925 goosenecks and microphone elements. The power module plugs into any standard XLRF-type connector or mounts to 5/8″-27 stands using the included quick-mount stand adapter.

• 3-pin XLR power module for use with ES925 goosenecks and microphone elements
• Power module plugs into any standard XLRF-type connector or mounts to 5/8″-27 stands using included quick-mount stand adapter
• Included low-profile universal isolation mount attenuates noise, shock and vibration

“Flush Mount”

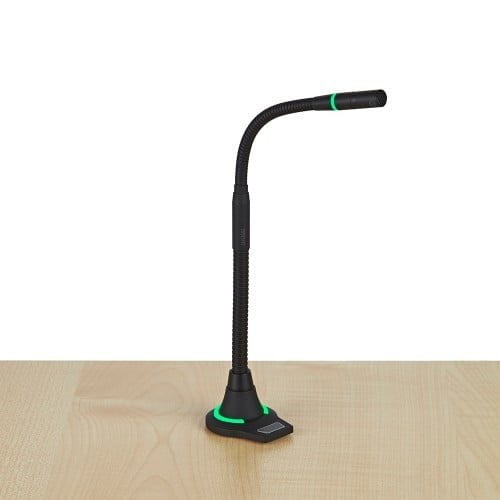

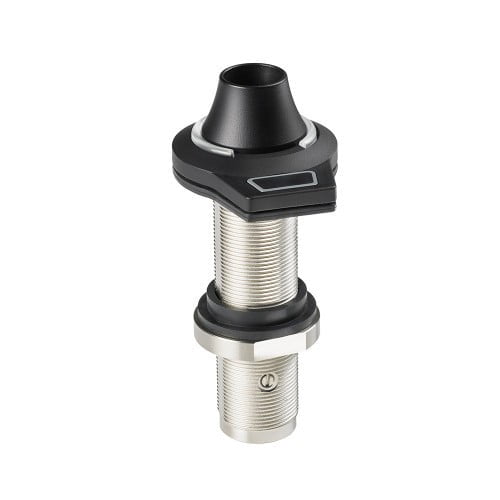

ES8755R flushmount power module (3-pin) with RGB LED and switch for ES925 modular gooseneck microphones. Remote switching available with ES8755RC (5-pin)

The ES925/x gooseneck sections (123 mm, 231 mm, 307 mm, 383 mm, 459 mm, 535 mm) works with any of the separately available power module types (XLR, FM3, FM5, DS5) and microphone elements (MicroLine (line + gradient), hypercardioid, cardioid, omnidirectional).

• Modular microphone system
• Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
• Available interchangeable elements permit angle of acceptance from 90° to 360°
• Interchangeable condenser microphone elements provide full-range, natural sound
• Designed for professional sound reinforcement and other commercial sound applications
• Small-diameter gooseneck design permits highly flexible positioning
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Available in six lengths

“Desk Stand”

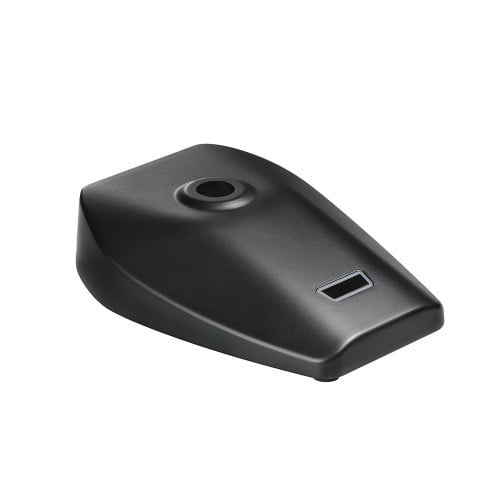

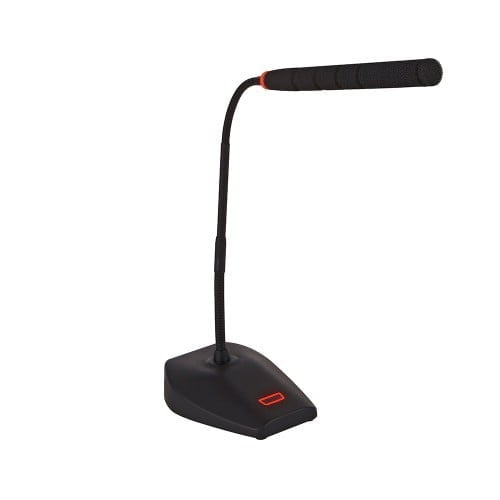

ES8766RC 5-Pin Desk Stand Power Module

Logic I/O capability permits control of remote devices from the ES8766RC desk stand’s touch-sensitive capacitive-type user switch

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute.” For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, single-state RGB LED status indicator and a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.

• 5-pin desk stand power module for use with ES925 goosenecks and microphone elements
• Logic I/O capability permits control of remote devices from the desk stand’s touch-sensitive capacitive-type user switch
• Capacitive touch switch can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute”
• Equipped with highly visible, single-state RGB LED status indicator
• Integral UniSteep® filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the microphone

“Remote Switching”

Local/remote switching operation enables independent microphone audio and control output.
