Audio Technica BP892cLM3 Microset

See Audio BP892x

Discreet head worn mic – Theatre quality set

  • Miniature 2.6mm omnidirectional mic capsule
  • 3.5mm lock Jack connector for Sennheiser radio belt packs
  • Very discreet & lightweight single under-ear design
  • Includes the AT8464 converter for wearing on both ears
  • Available in Beige or Black

Superseded by Audio Technica BP892x

Audio Technica

This mic is very popular and highly recommended by our Engineers and Project Managers for difficult acoustic environments. One of the most discreet headsets on the market. Eliminate your feedback problems!

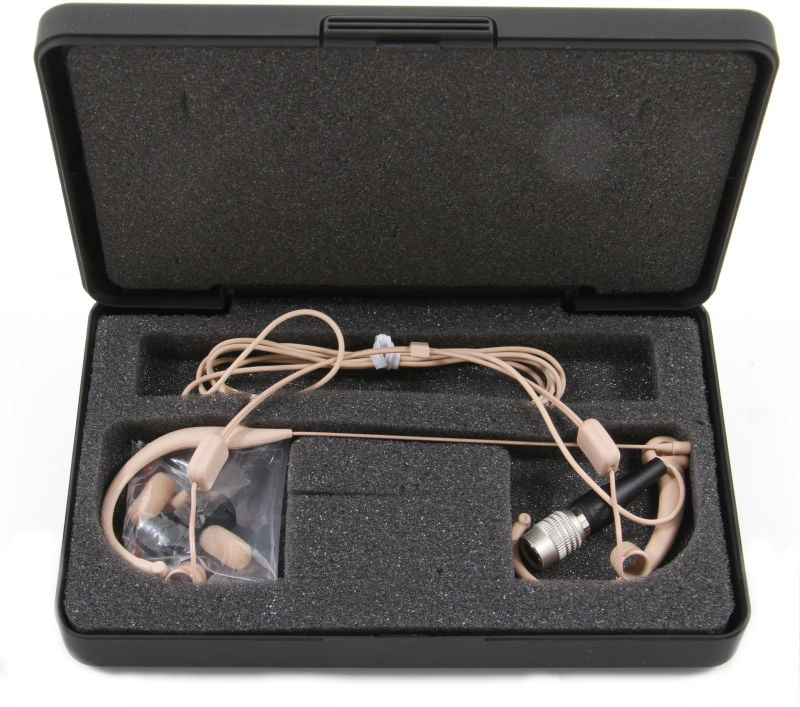

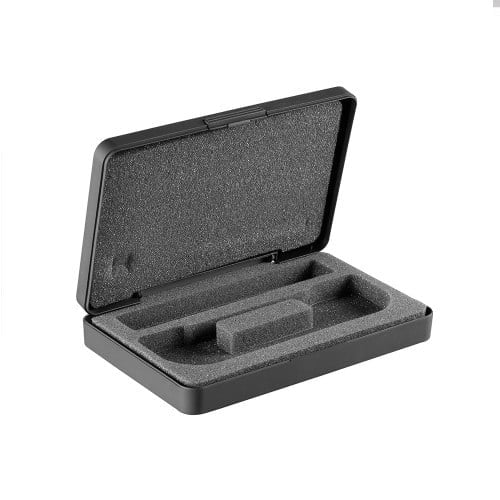

55 inch (1.4 m) cable Terminated with 3.5mm locking jack plug for Sennheiser wireless transmitters. 55″ (1.4 m) cable. options of Beige, or Black colour mic and cable. Includes element covers, windscreens and cable clip in a protective case for storage.

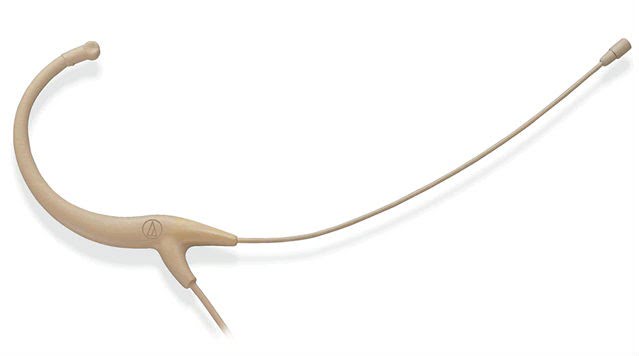

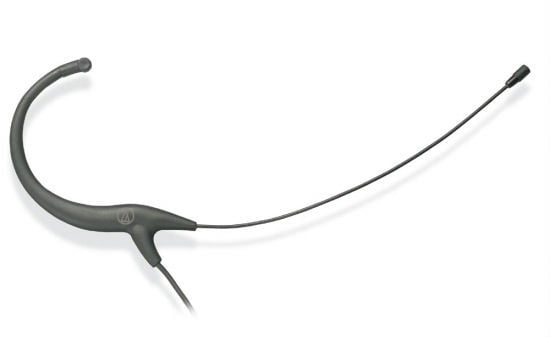

Introducing a giant stride in the technology of inconspicuous sound. With a capsule diameter of just 2.6 mm, the new MicroSet provides the ultimate in low-profile, high-performance audio. This innovative omnidirectional condenser headworn mic offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind either ear for an ultra-secure, comfortable fit with or without glasses.

DM Music Says
“This very discreet head worn mic is perfect for worship leaders, speakers and all situations where quality voice reproduction is required. Because it is worn on one ear and is so tiny it will be hardly noticed by the wearer or the congregation. And as it is compatible with Audio Technica and Sennheiser radio systems this is our most popular head mic – there is nothing better for this price!”

Audio-Technica’s high-SPL BP892 MicroSet’ offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892 hooks securely behind either ear and can be worn for hours without fatigue.
The microphone features a flat, extended frequency response and other outstanding performance specifications, resulting in extremely intelligible, natural audio for stage and television talent, lecturers and houses of worship. Protected by a highly durable Parylene coating, the new headworn mic is built to stand up to the rigours of day-to-day use.

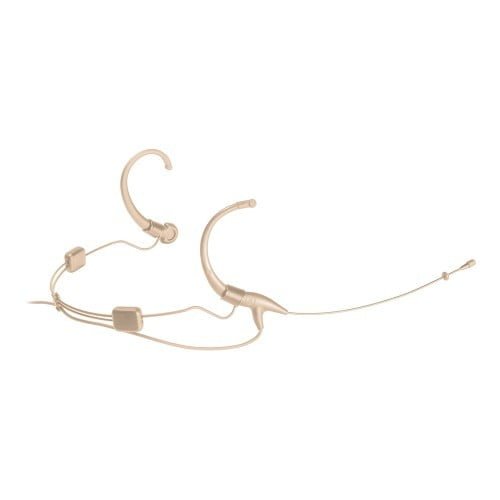

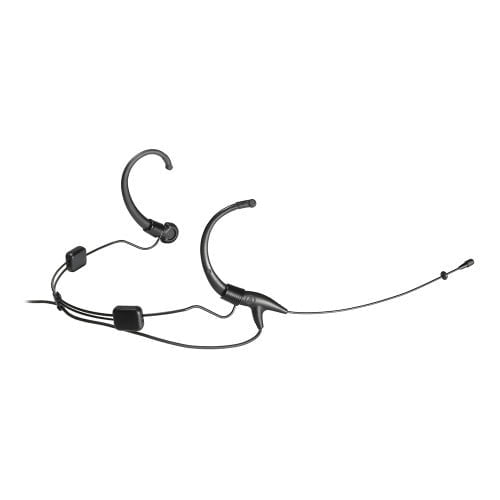

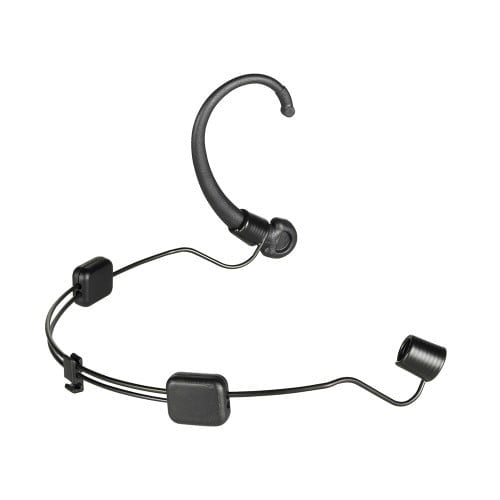

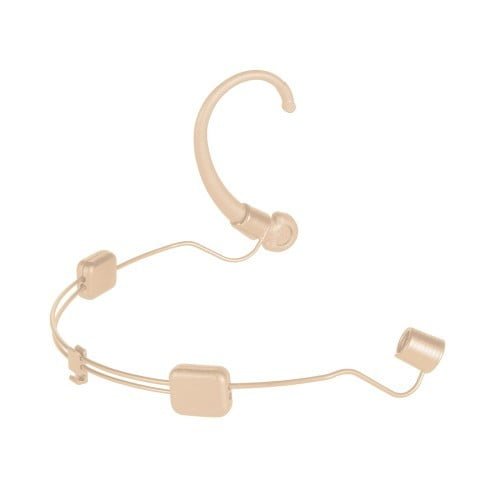

Includes AT8464 Dual-ear Microphone Mount
Audio-Technica’s Dual-Ear Microphone Mount allows you to convert your single ear-worn BP892 MicroSet’ to a dual-ear-worn unit for maximum stability and comfort. The BP892 fits on either side of the Dual-Ear Microphone Mount, allowing the microphone to be worn to either the left or right of your mouth. The headband easily adjusts to fit both children and adults. The AT8464 is compatible with all BP892 and AT892 MicroSet models.
The AT8464 is also available in beige (model AT8464-TH).
Fits Audio-Technica Case Style(s): M31

Key points:

  • Handles high sound pressure levels with ease
  • Extremely intelligible natural audio
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum
  • visibility
  • Ergonomic under-ear design¤flexible, lightweight contoured loop hooks behind the ear for an ultra-secure,
  • comfortable fit with or without glasses
  • High-pass filter on power module provides a steep low-frequency attenuation to improve sound pickup without
  • affecting voice quality
  • RoHS compliant free from all substances specified in the EU directive on hazardous substances

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave (wired only)
OPEN CIRCUIT SENSITIVITY ¤ 49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms (wired only)
DYNAMIC RANGE (typical) 104 dB, 1 kHz at Max SPL (wired only)
SIGNAL-TO-NOISE RATIO 63 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical (wired only)
SWITCH Flat, roll-off (wired only)
CURRENT CONSUMPTION 0.1 mA typical at 5V (wireless only)
VOLTAGE RANGE 2.5-11V (wireless only)
WEIGHT (MICROPHONE) 2.6 g (0.09 oz)
WEIGHT (POWER MODULE) 85 g (3.0 oz) (wired only)
DIMENSIONS (MICROPHONE) 8.1 mm (0.43″) long, 2.6 mm (0.10″) diameter – Boom: 98.4 mm (3.87″) long, 1.07 mm (0.04″) diameter
DIMENSIONS (POWER MODULE) 97.6 mm (3.84″) long, 18.9 mm (0.74″) diameter (wired only)
OUTPUT CONNECTOR 3.5mm locking jack plug
CABLE 1.4 m long (permanently attached to microphone),
1.6 mm diameter, 2-conductor shielded cable with locking 4-pin connector (wired only)

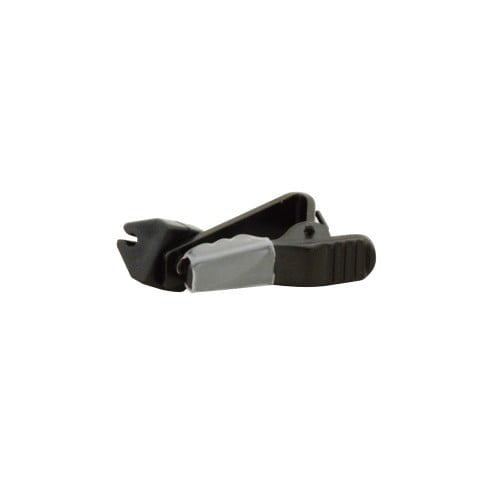

AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens; two AT8156 element
covers; moisture guard; belt clip (wired only); carrying case
BP892-TH: AT8539 power module (wired only); AT8440 cable clip; two AT8157-TH windscreens; two AT8156-TH
element covers; moisture guard; belt clip (wired only); carrying case
