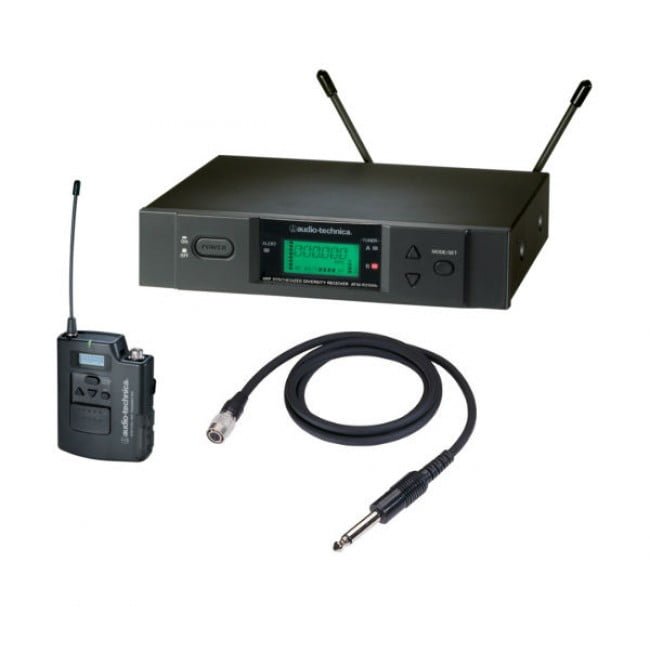

Audio Technica ATW-3110b/G


Pro Wireless Guitar System

  • 200 PLL-synthesized channels per band
  • True Diversity, Interference-resistant UHF band operation
  • Advanced digital ToneLock squelch
  • With AT-GcW instrument cable

Channel 38 tuning – requires licence (see

Audio Technica
Tag: Category: SKU: RM/GT/ATEC03

DM Music recommends all radio mics are used on licenced frequencies (channel 38 or Fixed Site Licences). From 2013 Channel 70 (unlicenced) may experience interference from 4G Mobile phone networks. Please also see our DM Quick Expert Guide for more information. We can also arrange licences on your behalf. Please call us on 01582 761122 for more information.

For the wireless user ready to step up to an advanced UHF system, the 3000A Series is the solution. Offered in two UHF frequency bands, the 3000A Series features Audio-Technica’s Digital Tone Lock Squelch plus an easy-to-read LCD information display in each unit which provides convenient visual indications of settings and operation status.

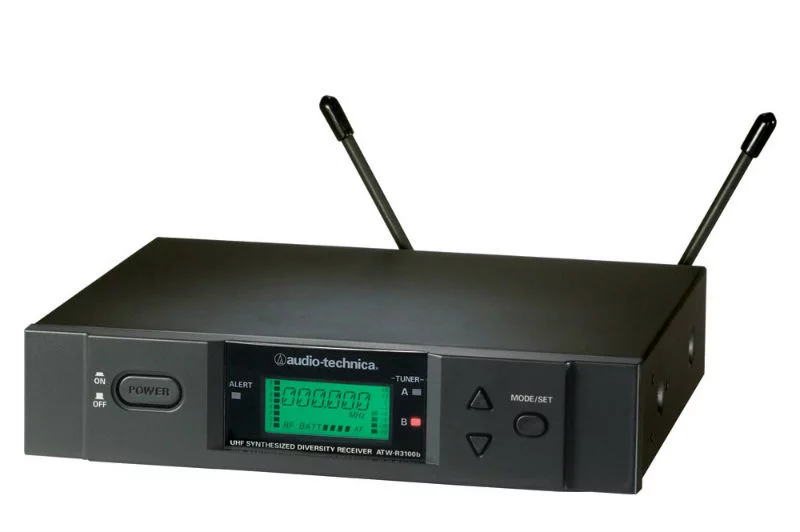

The new frequency-scan function enables automatic assignment of clear open channels. The new ATW-R3100 receiver benefits from a newly designed high-specification front-end filtering system along with the latest Audio-Technica 1/2-wave antenna technology to maximise both simultaneous frequency use and range. Other features include 200-channel UHF True Diversity frequency-agile operation, soft-touch controls on all components, and step-through menus for setting preferences.


  • Automatic frequency scanning for easy set-up
  • 200 PLL-synthesized channels per band selectable via soft-touch controls on receiver and transmitter
  • Available in two frequency bands:
  • 840.125 – 864.875 MHz (F Band).
  • 795.500 – 820.000 MHz (E Band)
  • True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts
  • Interference-resistant UHF band operation
  • Advanced digital ToneLock“ squelch
  • Red alert light that warns of low battery power, signal loss and input overload
  • Transmitter battery-life fuel gauge on the receiver

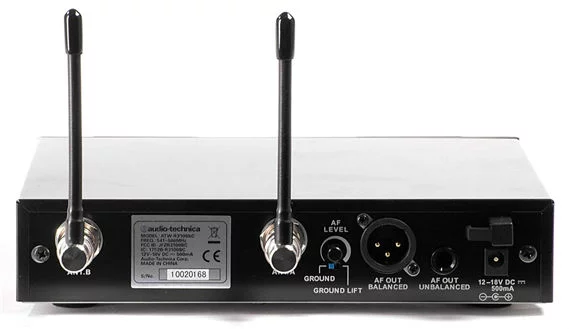

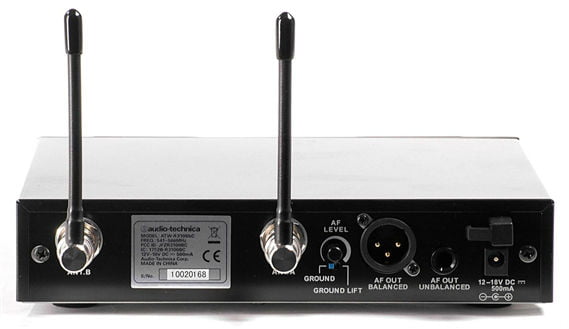

  • Ground-lift switch
  • Balanced and unbalanced audio output jacks
  • Two receivers can be mounted side-by-side in a single 19″ rack space

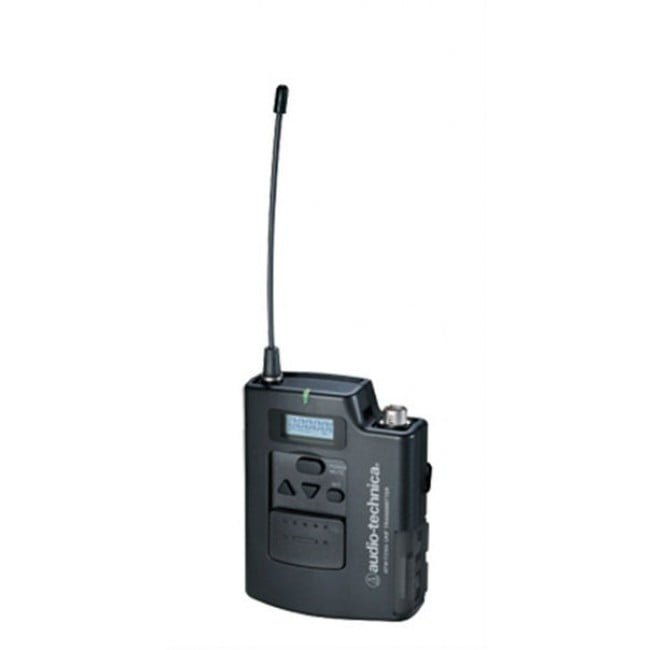

  • ATW-T310 UniPak’ transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
  • ATW-T341 handheld microphone/transmitter features the Artist Elite’ AE4100 cardioid dynamic element
  • ATW-T371 handheld microphone/transmitter features the Artist Series ATM710 cardioid condenser element

Operating Frequencies: UHF band
840.125 – 864.875 MHz (F Band).
795.500 – 820.000 MHz (E Band)
Number of Channels: UK: 198 – 197 EX band
Frequency Stability: ñ0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Normal Deviation: ñ10 kHz
Operating Range: 90 m (300′) typical
Operating Temperature Range: 5? C (41? F) to 45? C (113? F)
Frequency Response: 70 Hz to 15 kHz
Receiver Specifications
Receiving System: Dual independent receivers, automatic-switching diversity
Image Rejection: 60 dB nominal, 55 dB minimum
Signal-to-noise Ratio: 110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
Total Harmonic Distortion: Sensitivity: 24 dBæV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate Frequency: 243.950 MHz, 10.7 MHz
Audio Output: Unbalanced: 50 mV (at 1 kHz, ñ5 kHz deviation, 10k ohm load)
Balanced: 32 mV (at 1 kHz, ñ5 kHz deviation, 10k ohm load)
Output Connectors: Unbalanced: 1/4″ TS (“mono”) phone jack
Balanced: XLRM-type
Power Supply: PS6 230/240V AC 50Hz with supplied 13.5V, 500 mA AC adapter
Dimensions: 210.0 mm (8.27″) W x49.0 mm (1.93″) H x176.0 mm (6.93″) D
Weight: 1.1 kg (2.4 lbs)
Accessories Included: PS6 230/240V AC 50 Hz 13.5V, 500 mA AC adapter; two flexible UHF antennas; rack-mount adapters
