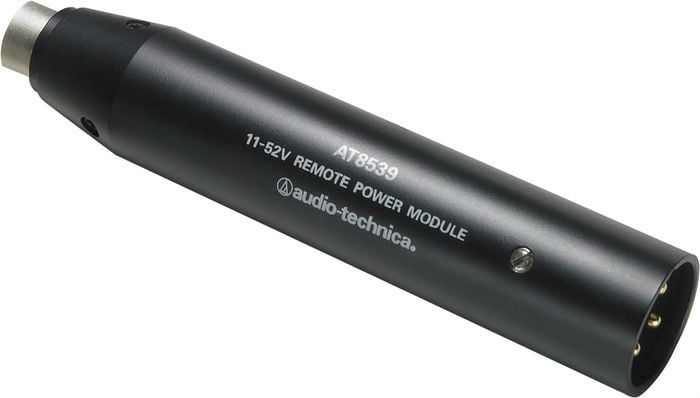

Power module for AT892 MicroSet®. Also suitable for use with any Audio-Technica Wireless Essentials® microphone terminated with 4-pin locking connector. The AT8539 allows you to convert your wireless microphone into a wired model. Comes equipped with a snap-on belt clip.
HRS-type input connector allows any A-T Wireless Essentials® microphone to function as a wired model
• Switchable low-cut filter minimizes pickup of unwanted low frequencies
• XLRM-type output connector
• Designed to plug directly into an XLR-type chassis connector
• Rugged steel case construction
The AT8539 power module allows any Audio-Technica Wireless
Essentials® microphone to operate as a wired microphone. The power
module’s HRS-type 4-pin input connector mates with any Audio-Technica
Wireless Essentials® (wireless microphone with model number ending in
a cW); its output is a standard 3-pin XLRM-type connector.
It offers a low-cut filter to help minimize the pickup of unwanted low
frequencies. To engage the low-cut filter, use the end tip of a paperclip or
other small pointed instrument to slide the switch toward the “bent” line.
The power module is constructed of rugged steel for maximum durability
and optimum shielding from hum. A snap-on belt clip is included.
Suitable for use with the following Audio Technica lapel & headset microphones:
Input/Output connectors HRS-type 4-pin / XLRM-type
Frequency response Microphone dependent
Impedance 250 ohms
Low-cut filter 80 Hz, 18 dB/octave
Phantom power 11-52V DC, 2 mA typical
Switch Flat / Roll-off
Dimensions 97.6 mm (3.84″) long , 18.9 mm (0.74″) diameter
Accessory included Belt clip
