Allen & Heath MixWizard WZ4 14:4:2

  • 10 XLR high specification mic/line inputs
  • 19″ rack mountable
  • 4 band EQ with 2 sweepable mids
  • High quality 100mm faders
  • 6 aux sends
  • 6×2 Matrix
  • 2 x new digital FX engines, 20 studio quality FX presets
Allen & Heath
Categories: , SKU: MX/UNP/A&H430

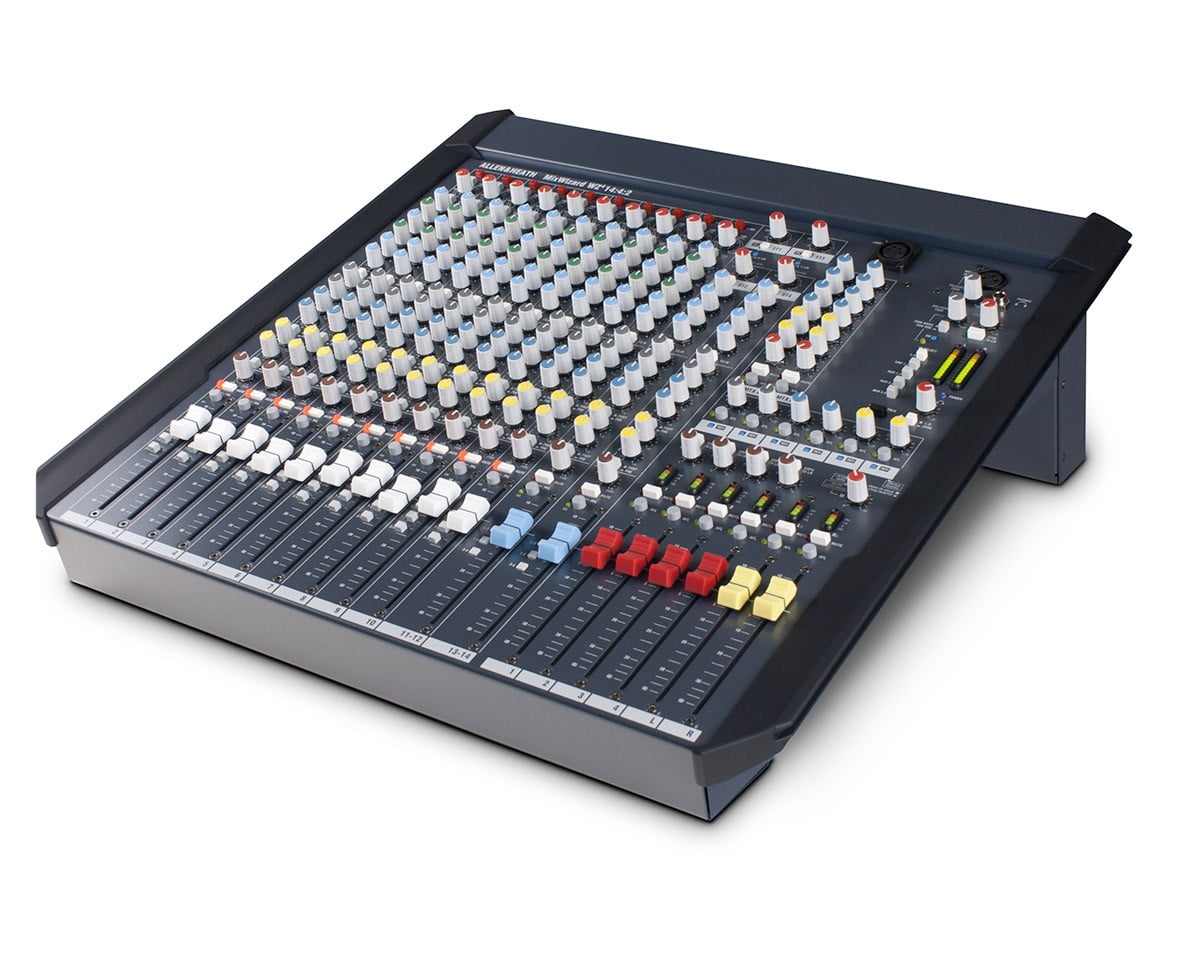

Designed as a uniquely versatile live sound mixer, WZ4 14:4:2 is equally at home at Front of House, on Monitors, or doubling up to fill both roles at once.

WZ4 14:4:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

This 4th generation MixWizard console now has the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

FoH / Monitor / Dual Mode

In FoH Mode, the 4 groups with inserts, 100mm faders and XLR outputs can be routed and panned to the LR mix for flexible sub-mixing. The main LR mix has inserts, separate left and right faders, and XLR outputs to feed the main speaker system. EQ and signal processing can easily be inserted on group and main outputs.

In Monitor Mode, the aux mixes are routed to the group and LR faders, inserts and XLR outputs. The AFL and PFL system is switched to the Mono output to provide an engineer’s ‘wedge’ output. In essence, it’s a perfect 6-mix monitor console with additional outputs available from the group busses via the aux master controls.

In Dual Mode some auxes can be used as monitor mixes and some sub-grouping can be used along with the main LR outputs, allowing the engineer to run FoH sound and some Monitor mixes from the same console.

•    19” Rack mountable
•    10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
•    100mm faders
•    Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
•    6 Aux sends – switchable pre/post fade
•    4 Audio groups
•    2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
•    4 band EQ with 2 swept mids
•    6×2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
•    Oscillator and Pink Noise generator for line-up and speaker testing
•    Tri-colour, 12 segment bargraph metering
•    48V Phantom Power
•    Signal and Peak LEDs
•    Talkback Mic XLR with trim
•    Lamp socket
•    USB multitrack recording option

Maximum output level XLR 26dBu into 600 ohms max load
Jack 21dBu into 2k ohm max load
Internal headroom Channels 21dB
Mix 23dB
Meters 3 colour LED, quasi peak response
Sensitivity 0VU = 4dBu at XLR output
Master meters 12 segment -30 to 16dB
Channel meters 2 segment -12, 16dB (5dB before clip)
Frequency response 20Hz to 50kHz /-0.5dB
THD n at 10dBu 1kHz Channel to mix out < 0.004%
Crosstalk at 1kHz Fader shutoff >90dB
Mute shutoff >90dB
Inter channel >90dB
Noise, rms 22Hz to 22kHz Mic EIN -127dB
Residual output noise < -96dBu (-100dB S/N)
LR unity fader mix noise < -84dBu (-88dB S/N)
Group unity fader noise < -90dBu (-94dB S/N)
Channel HPF 12dB/octave below 80Hz
Mono EQ HF Shelving, /-15dB, 12kHz
HM Peak/dip, /-15dB, 500Hz to 15kHz, Q=1.8
LM Peak/dip, /-15dB, 35Hz to 1kHz, Q=1.8
LF Shelving, /-15dB, 80Hz
Stereo EQ HF Shelving, /-15dB, 12kHz
HM Peak/dip, /-15dB, 2.5kHz, Q=1.8
LM Peak/dip, /-15dB, 250Hz, Q=1.8
LF Shelving, /-15dB, 80Hz
Power supply 100-240V, 50/60Hz auto sensing, IEC input
Power consumption 45W max
Mains fuse T630mA L 20mm
Free standing dimensions W 507 (20”) x D 530 (20.9”) x H 194 (7.7”)
Rack mounted W 483 (19”) x D 122 (4.8”) x H 444 (17.5”)
Underside connectors
Rack mounted W 483 (19”) x D 193 (7.6”) x H 497 (19.6”)

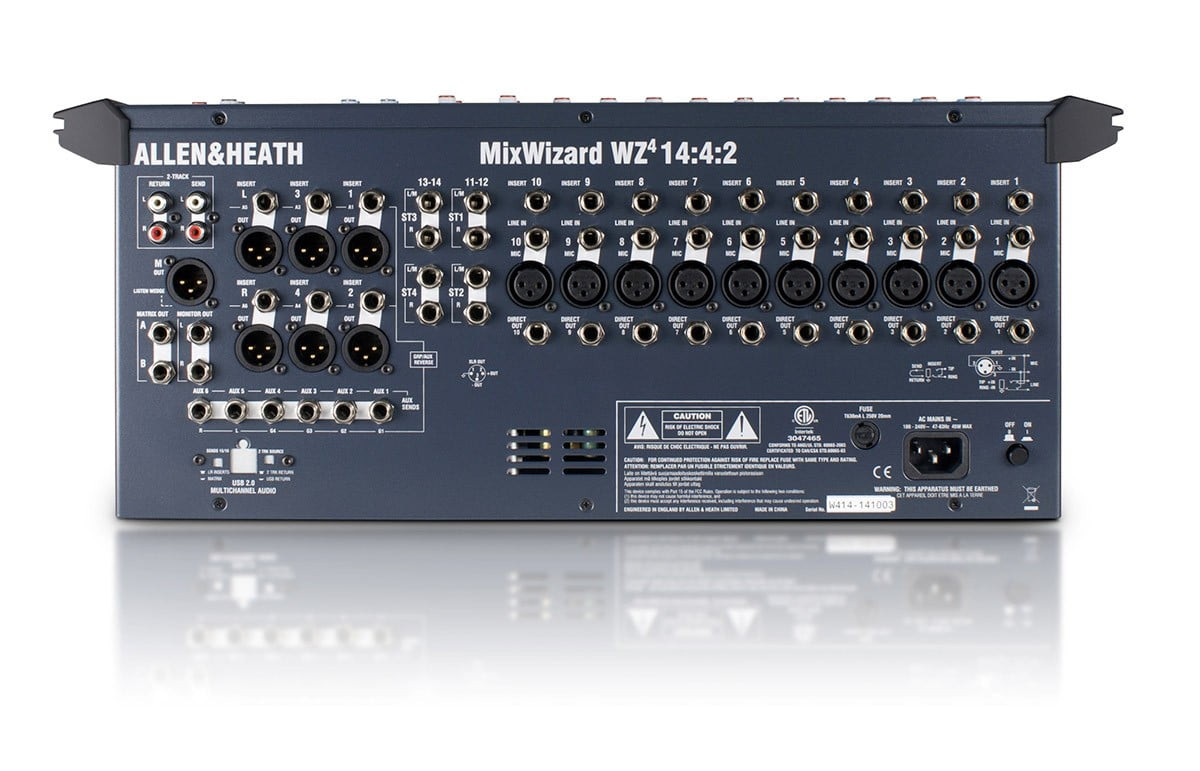

Rear connectors
Weight W4-1442 unpacked 13kg (28lbs)
W4-1442 packed 16kg (35lbs)
