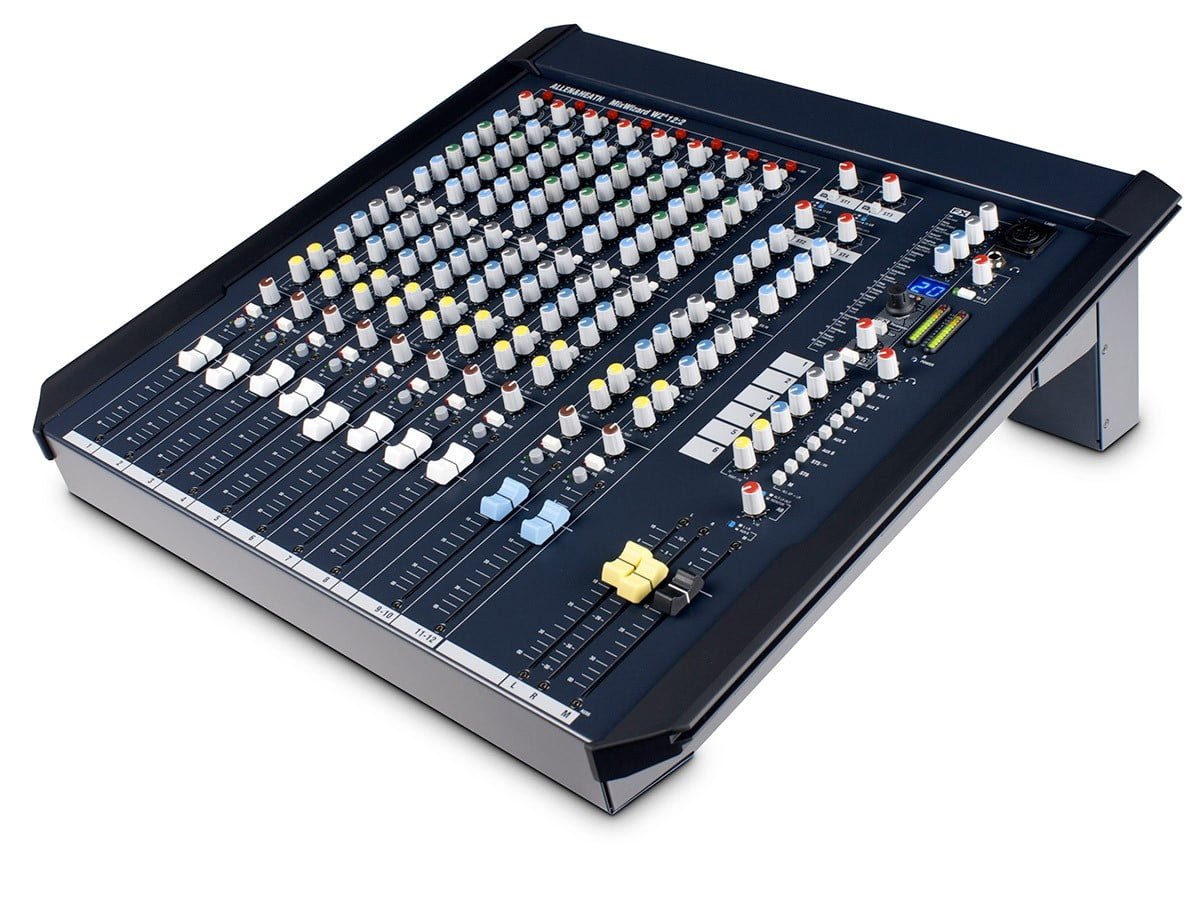

Allen & Heath MixWizard WZ4 12:2

  • 8 XLR high specification mic/line inputs
  • 2 dual stereo channels
  • 19″ rack mountable
  • 4 band EQ with 2 sweepable mids
  • High quality 100mm faders
  • 6 aux sends
  • 2 x newdigital FX engines, 20 studio quality FX presets
Allen & Heath
Categories: , SKU: MX/UNP/A&H420

WZ4 12:2 is your ideal companion for those scenarios where you don’t need masses of channels, but you still need to deliver superb audio quality. The 2 dual stereo channels are perfect for stereo playback or for hooking up keyboards and other stereo instruments.

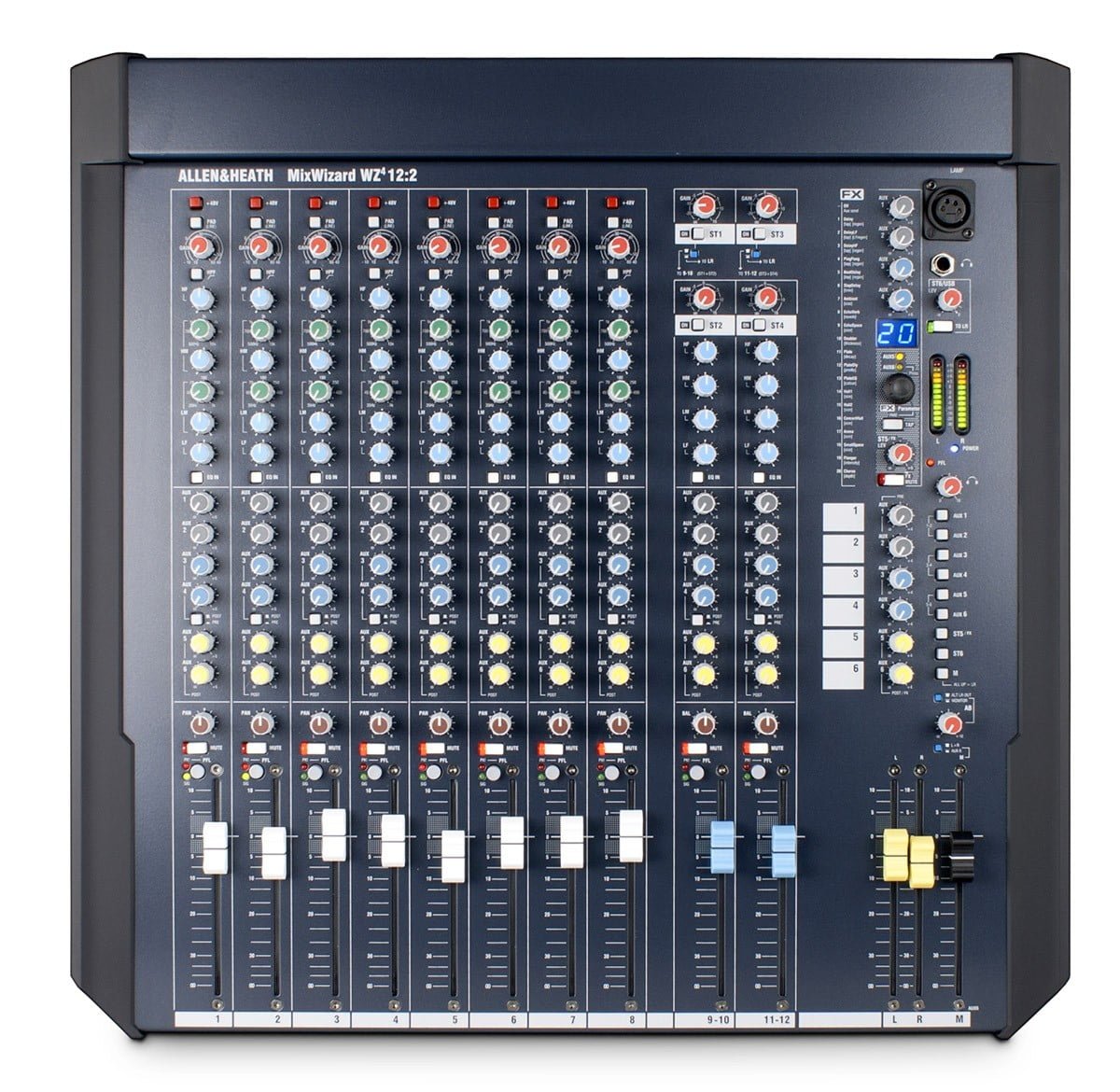

WZ4 12:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

  • 19” Rack mountable
  • 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
  • 4 band EQ with 2 swept mids
  • 6 Aux sends – 2x pre fade / 2x switched / 2x post fade*
  • 2 Stereo returns
  • Dedicated mono output fader – can be switched to provide an L R mono feed for a centre or fill speaker, or sub bass feed
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri-colour, 12 segment bargraph metering
  • Twin FX engines with 20 studio quality FX presets
  • 48V Phantom Power
  • Signal and Peak LEDs
  • Talkback Mic XLR with trim
  • Lamp socket
  • USB multitrack recording option
  • Footswitch connector (mutes/unmutes the ST1 FX Return)

*Can be reconfigured with internal jumpers

Performance

Maximum output level XLR 26dBu into 600 ohms max load
Jack 21dBu into 2k ohm max load
Internal headroom Channels 21dB
Mix 23dB
Meters 3 colour LED, quasi peak response
Sensitivity 0VU = 4dBu at XLR output
Master meters 12 segment -30 to 16dB
Channel meters 2 segment -12, 16dB (5dB before clip)
Frequency response 10Hz to 30kHz /-0.5dB
THD n at 10dBu 1kHz Channel to mix out < 0.004%
Crosstalk at 1kHz Fader shutoff >90dB
Channel mute >90dB
Inter channel >90dB
Noise, rms 22Hz to 22kHz Mic EIN -127dB
Residual output noise < -95dBu (-99dB S/N)
LR unity fader mix noise < -83dBu (-87dB S/N)
Channel HPF 12dB/octave below 80Hz
Mono EQ HF Shelving, /-15dB, 12kHz
HM Peak/dip, /-15dB, 500Hz to 15kHz, Q=1.8
LM Peak/dip, /-15dB, 35Hz to 1kHz, Q=1.8
LF Shelving, /-15dB, 80Hz
Stereo EQ HF Shelving, /-15dB, 12kHz
HM Peak/dip, /-15dB, 2.5kHz, Q=1.8
LM Peak/dip, /-15dB, 250Hz, Q=1.8
LF Shelving, /-15dB, 80Hz
Power supply 100-240V, 50/60Hz auto sensing, IEC input
Power consumption 45W max
Mains fuse T630mA L 20mm
Mechanical
Free standing dimensions W 507 (20”) x D 530 (20.9”) x H 194 (7.7”)
Rack mounted W 483 (19”) x D 122 (4.8”) x H 444 (17.5”) 10U
Underside connectors
Rack mounted W 483 (19”) x D 193 (7.6”) x H 497 (19.6”) 11.2U

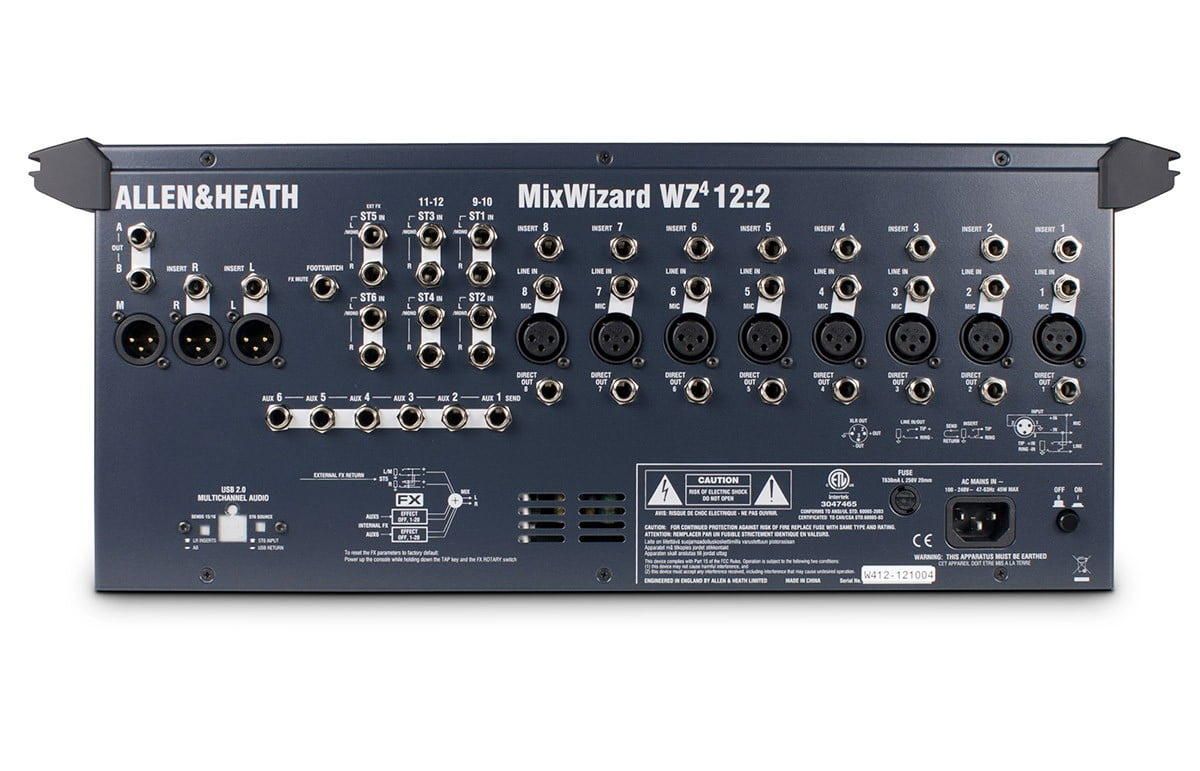

Rear connectors
Weight W4-122 unpacked 11kg (24lbs)
W4-122 packed 14kg (31lbs)
W4-162 unpacked 13kg (28lbs)
W4-162 packed 16kg (35lbs)

Brand

Allen & Heath

Allen & Heath
