AKG CHM99
AKG CHM99
AKG CHM99
AKG CHM99
AKG CHM99
AKG

£155.00 Inc VAT

Hanging condenser microphone

    • Cardioid polar pattern
    • 10 m (33 ft.) cable
    • 125° pickup angle
    • Especially suited for choir recordings
    • Integrated spring steel clamp for optimum alignment
SKU: MI/CON/AKG37 Categories: Hanging Mics, Installed Mics
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

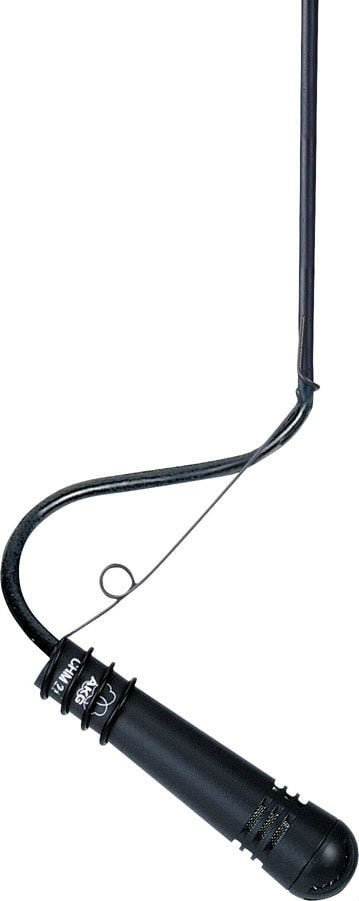

The CHM 99 Condenser Hanging Microphone provides both ease of use and a high level of functionality. There is hardly any more affordable and simpler solution for recording choirs at worship centers. Suspended from the ceiling or a beam, the hanging microphone is aligned and then fixed in the correct position. Now use the spring steel clamp to adjust the correct angle, and off you go!

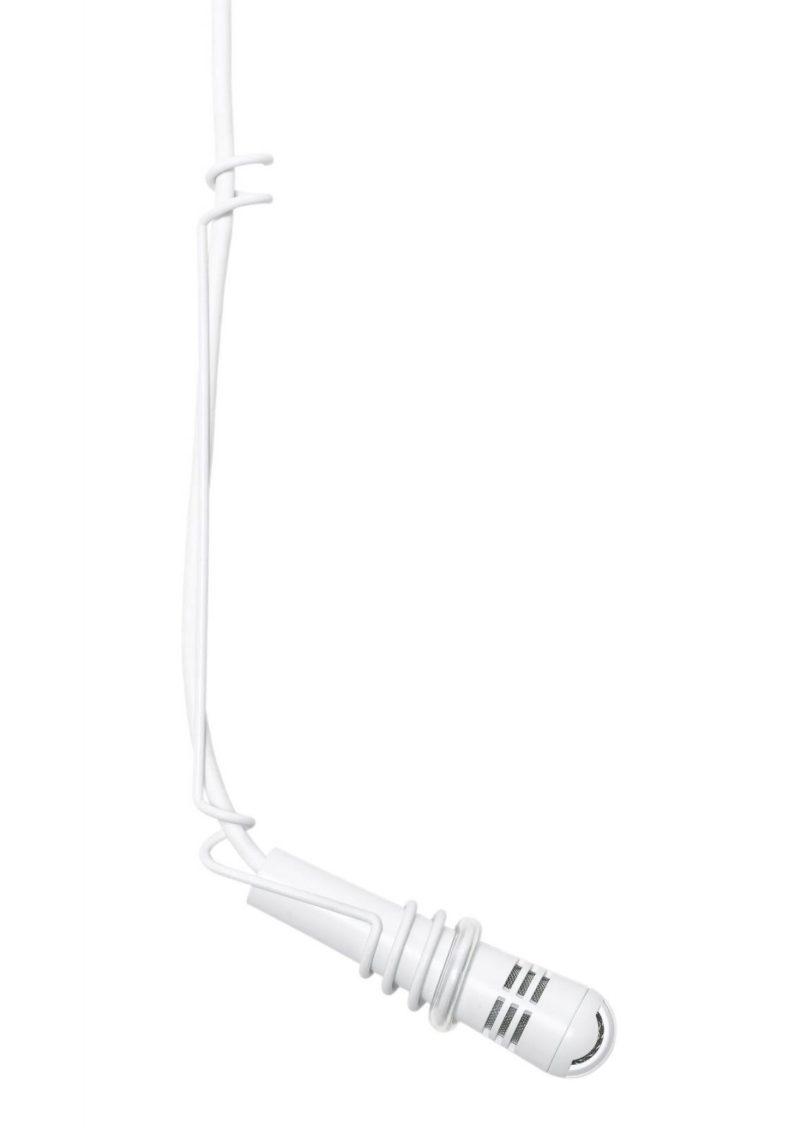

The CHM 99 is available in white or black.

  • Hanging condenser microphone
  • Cardioid polar pattern
  • 10 m (33 ft.) cable
  • 125° pickup angle
  • Especially suited for choir recordings
  • Integrated spring steel clamp for optimum alignment
  • Black or white
  • Requires Phantom Power

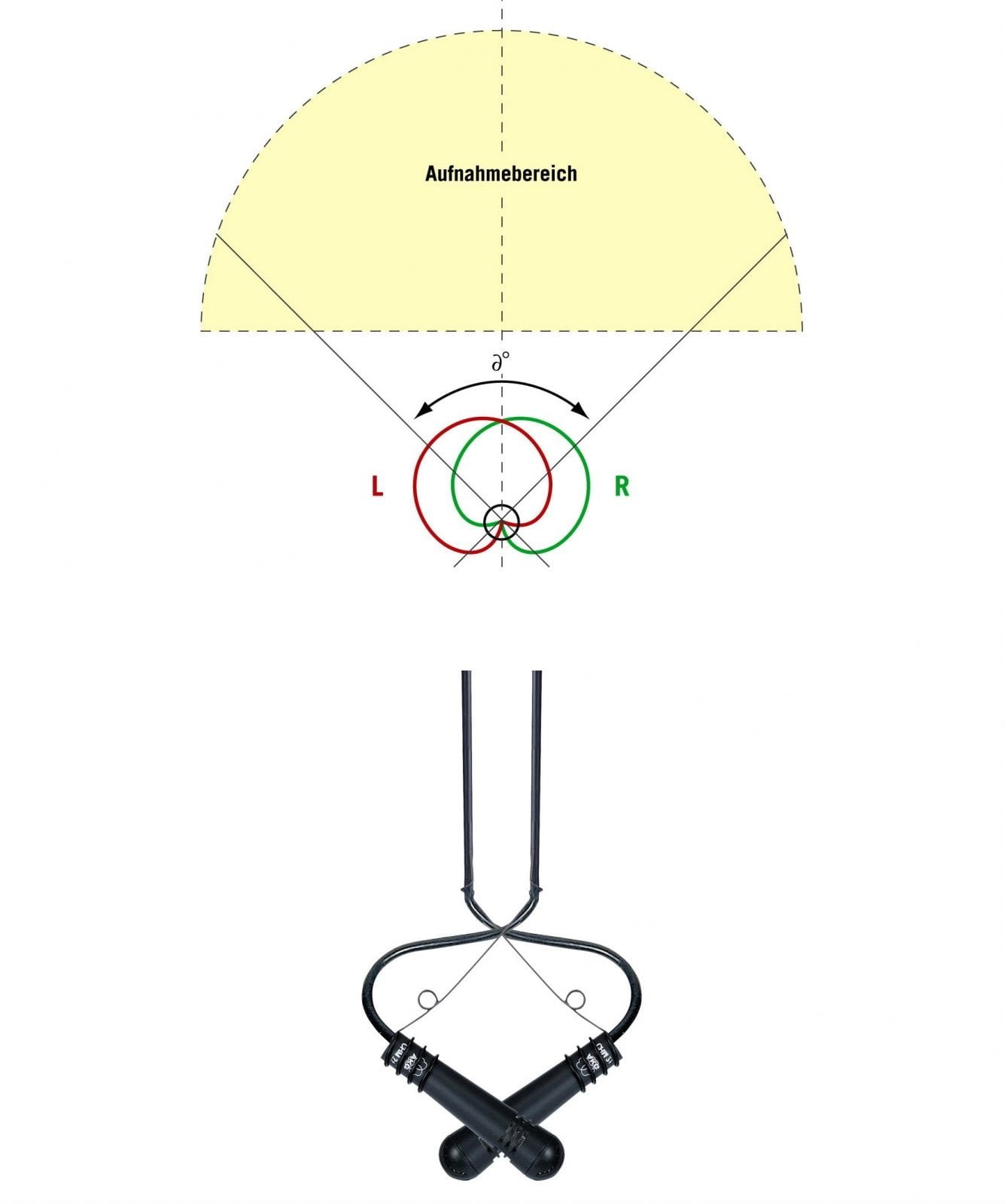

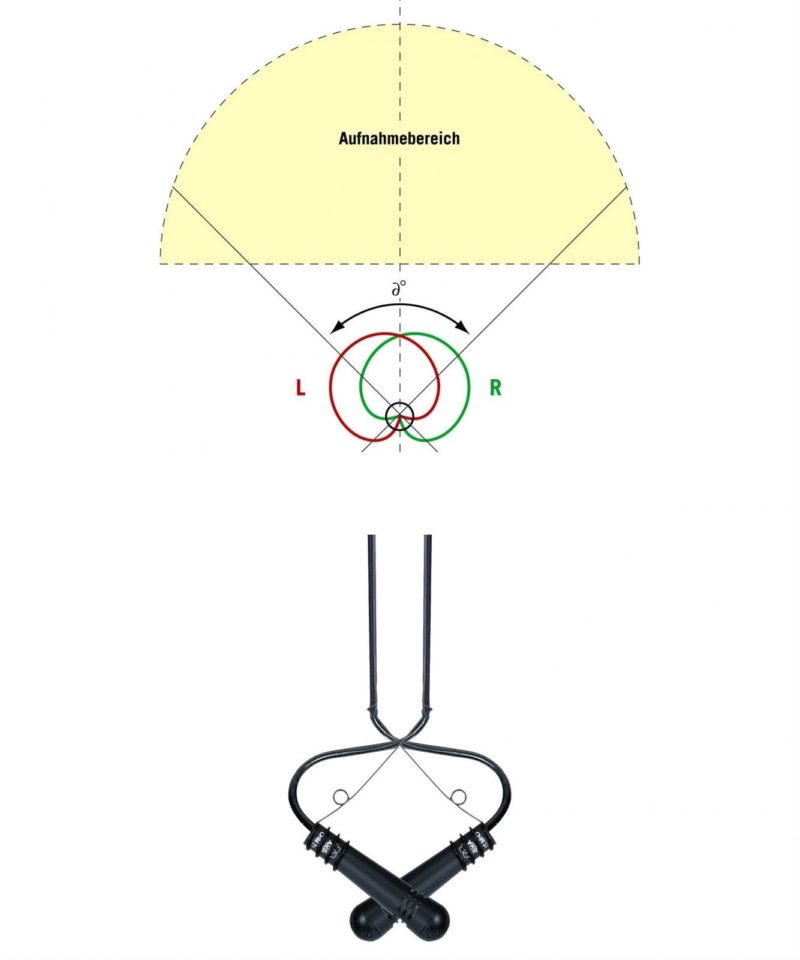

XY stereo recording
Using two CHM 99 hanging microphones in an XY configuration (coincident pair) is a good way to make stereo recordings, particularly of choirs. However, sound source locations are defined only by intensity differences. Adjusting the angle between the microphones determines the width and depth of the stereo image.

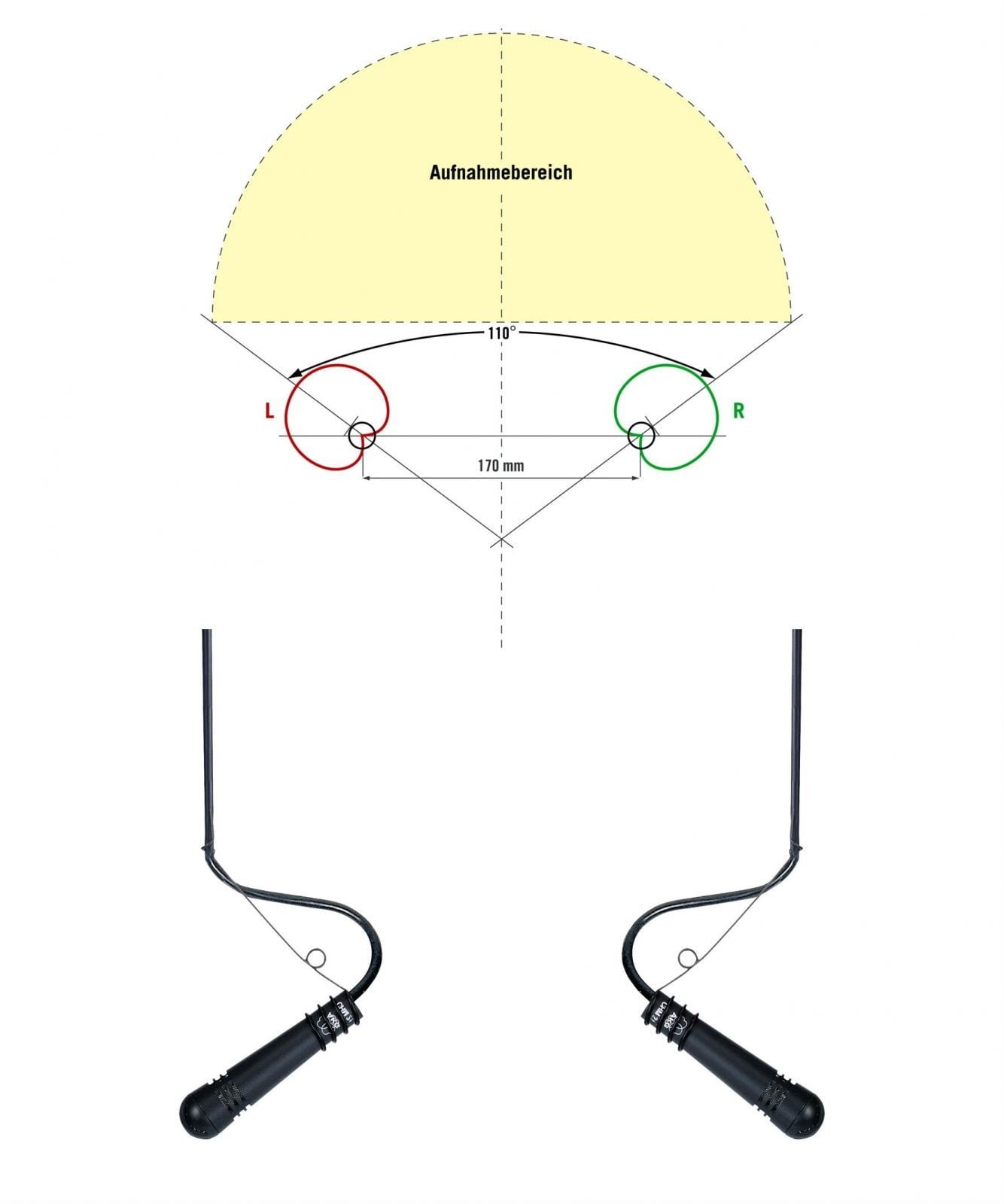

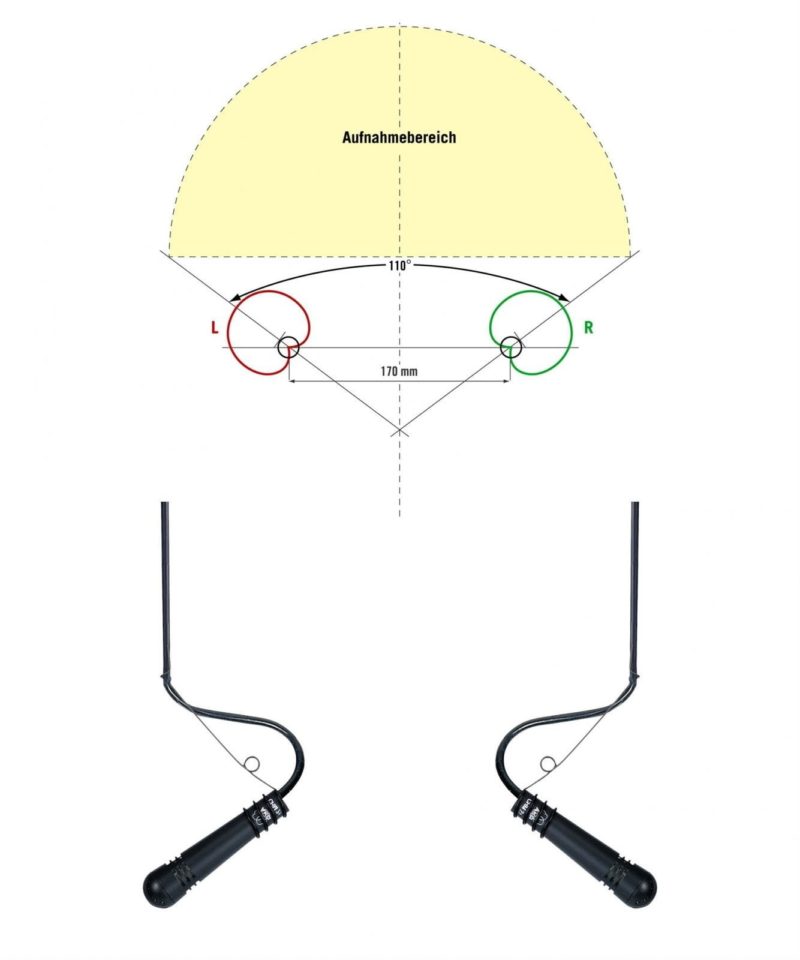

ORTF stereo recording
Developed by the French Broadcasting Authority, this technique differs from the XY technique by recording not only intensity differences, but also delay differences. The capsules are aligned at an angle of precisely 110° and 170 mm / 6.7 in. apart.

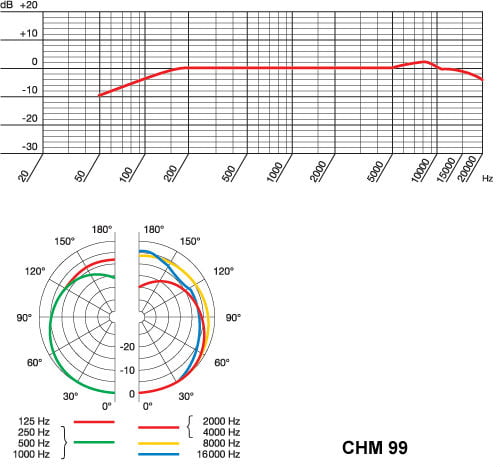

Polar pattern Cardioid
Frequency range 70 to 18,000 Hz
Sensitivity 18 mV/PA = -35 dBV re 1 V/Pa
Max. SPL 125 dB (for 1% THD)
Equivalent noise level (IEC 60268-4, A-weighted) <21 dB-A
Signal/noise ratio (A-weighted) >73 dB
Impedance <=600 ohms
Recommended load impedance >=2,000 ohms
Supply voltage 9 to 52 V phantom power to IEC 61938 (DPA adapter integrated)
Powering <3 mA
Connector 3-pin male XLR
Finish matte black or white
Dimensions 13.5 x 55 mm (0.5 x 2.1 in.)
Net weight 20 g (0.7 in.)
Shipping weight 480 g (17 oz.)
