Super Bright DLP Projector with HDBaseT

  • 11,000 ANSI Lumens (12,000 center Lumens) brightness
  • Native WUXGA (1920 x 1200) resolution with maximum WUXGA (1920 x 1200)@60Hz resolution
  • DLP® and BrilliantColor™ technologies for superb & durable image quality
  • Built-in hardware edge-blending and warping functionality
  • HDBaseT allows for control and digial video signals to travel over a single CAT5/CAT6 network cable up to 100m



Vivitek
Tag: Category: SKU: PR/DLP/VIV029

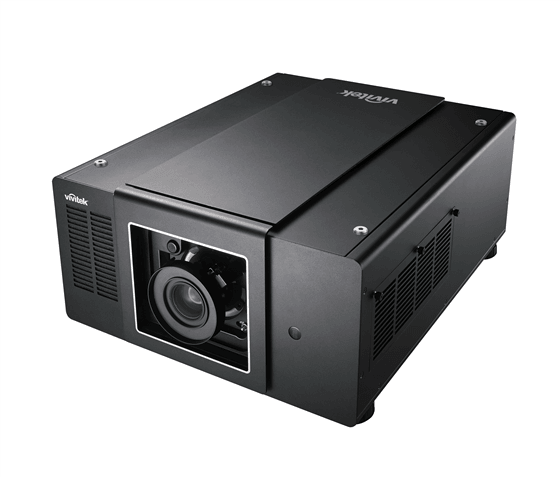

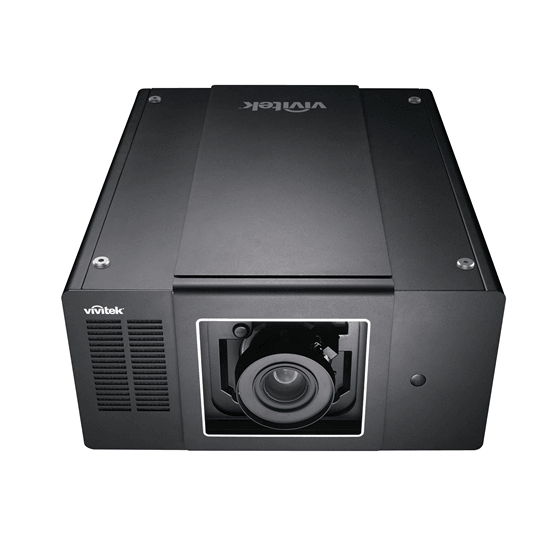

Vivitek DU9000 is Vivitek’s brightest projector and it has the best possible image quality with built-in Edge-Blending and Dual Lamp Technologies.

The DU9000 provides 11,000 ANSI lumens of brightness (12,0000 Center lumens), native WUXGA resolution and built-in edge-blending & warping technology which make the projector versatile for a multitude of different applications like concert or sports arenas as well as auditoriums, rental and staging.

The HDBaseT makes it easy to run both digital image and control signals to the projector with only 1 cable over long distances. 4 interchangeable lens options are available for flexible positioning to accommodate various projection distances and screen sizes. An optional color optimized color wheel can be exchanged to achieve color optimazation (Color wheel available separately). Optional stacking feet helps ease the task of stacking 2 projectors for even higher brigtness when needed. Optional carry handles are available for easier handling in rental or staging applications.

Key features

  • 11,000 ANSI Lumens (12,000 center Lumens) brightness
  • Native WUXGA (1920 x 1200) resolution with maximum WUXGA (1920 x 1200)@60Hz resolution
  • DLP® and BrilliantColor™ technologies for superb & durable image quality
  • Built-in hardware edge-blending and warping functionality
  • HDBaseT allows for control and digial video signals to travel over a single CAT5/CAT6 network cable up to 100m
  • Network ready for integration, control and system administration via RJ45
  • Built-in 12V trigger (2x)
  • Easy lamp replacement design eliminates the need to move the projector for replacement
  • Optional color optimized Color Wheel available (available separately)
  • 4 optional lenses available for throw ratios from 0,84:1 up to 4,0:1
  • 3D Ready and capable of BluRay 3D on HDMI inputs. 3D sync out allows for passive 3D with external emitter

Replaceable dust filters for demanding environment

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from.

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

Dual Lamp

A dual lamp projector is able to display larger/brighter images beyond what a single lamp can produce. Dual lamp technology automatically switches the projector to single lamp mode when one of the lamps goes out, ensuring usage without any interruptions.

HDMI

HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.

Native Resolution WUXGA (1920 x 1200)
Brightness 11000 ANSI Lumens
Contrast Ratio 5000:1 (Dynamic Black Enabled)
Max. Supported Resolution WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio 16:10
Lamp Life and Type 1,500/2,000 Hours (Normal / Eco. Mode)
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.96″ DMD
Throw Ratio 1.85 – 2.4:1
Image Size (Diagonal) 68″-217″
Projection Distance 2.5~9m
Projection Lens F= 2.17 – 2.46, f=39 – 50.7mm
Zoom Ratio 1.3x
Lens Shift ( Based on Full Image Height) Vertical: /- 50%; horizontal: /- 15% , Vertical: /- 12%; horizontal: /- 12% (for 0.84-1.03:1 lens)
Offset ( Based on Full Image Height) Motorized Lens Shift
Keystone Correction Vertical: /-35°, Horizontal: /-20°
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

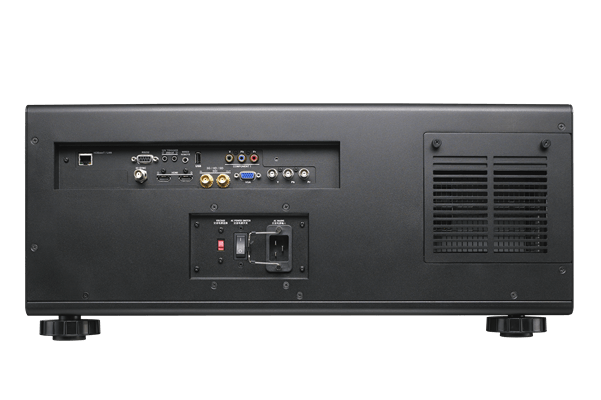

I/O Connection Ports VGA-In (15pin D-Sub), HDMI (2x, optional HDMI to DVI adapter available), Component (YPbPr BNC x 3), Component (YPbPr RCA x 3), RJ45 (1x HDBaseT & LAN), IP Telnet Capable Over RJ-45, 12v Trigger, RS-232, USB A (Service Only)
Dimensions (W x D x H) 500 x 630 x 250mm
Weight 38 kg
Noise Level 45dB/ 40dB (Normal/Eco. Mode)
Power Supply: AC 100-240V Consumption: 1200W (Normal Mode),910 W (Eco)<0.5W (Standby Mode w/o network)
3D Ready(DLP link, PC Video) Yes
Spare Lamp P/N 3797818200-SVK
3D Glasses P/N 3534257700
Remote Control P/N 5041842200
Standard Accessories HDMI Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp P/N: 3797818200-SVK , 3D Glasses P/N: 3534257700 , Remote Control P/N: 5041842200
Warranty Large Venue Warranty: 5 years projector / 1 year on lamp or 1000 hours whichever comes first
UPC Code 813097020017

Brand

Vivitek

Vivitek is a leading manufacturer of visual display and presentation products. The company’s extensive line-up of award-winning digital projection devices incorporates the latest innovations and technologies. The extensive line-up consists of projectors for home cinema, education, large venue and meeting room projectors. Vivitek was the first to launch a full high-definition LED home cinema projector and was among the first to offer the tiny but powerful HD LED Qumi projectors to the mass market consumer, as well as 3D-ready digital projectors featuring DLP link® from Texas Instruments.
