Super Bright Network Centric Large Venue Projector with 3D capabilities
The DU6871 provides 7,300 ANSI lumens of brightness, native WUXGA resolution with built in HDBaseT for video/data, in addition to control signals up to 100m over a single CAT5/6 network cable. Up to ten users defined lens positions for focus, zoom, and lens shift to be set and stored via Lens Position Memory (LPM) ensure easy and flexible use in changing environments.
7 interchangeable lens options are available for flexible positioning in for a varying screen size or projection distance requirements.
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from.
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
|Native Resolution||WUXGA (1920 x 1200)|
|Brightness||7300 ANSI Lumens|
|Max. Supported Resolution||WUXGA (1920 x 1200) @60Hz, Reduced Blanking|
|Native Aspect Ratio||16:10|
|Lamp Life and Type||2,000/2,500 Hours (Normal / Eco. Mode) 350W x2|
|Display Type||Single chip DLP® Technology by Texas Instruments|
|Chip Size||0.67” DMD|
|Throw Ratio||1.73- 2.27:1 (Std lens)|
|Image Size (Diagonal)||40″ – 500″ (Std lens)|
|Projection Lens||F = 1.7 – 1.9 f = 26- 34mm|
|Zoom Ratio||1.3x (Std lens)|
|Lens Shift ( Based on Full Image Height)||Vertical: 0~50%, Horizontal: /- 10%|
|Offset ( Based on Full Image Height)||Motorized Lens Shift|
|Keystone Correction||Vertical /- 30°|
|Video Compatibility||SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p)|

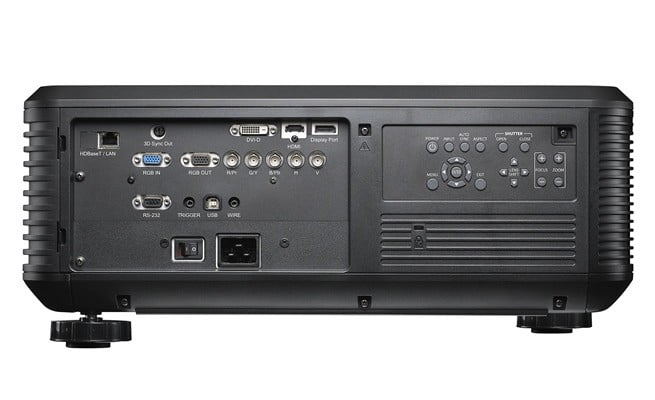

|I/O Connection Ports||VGA-In (15pin D-Sub), HDMI, Display Port, DVI-D, Component (5 BNC) (RGBHV), Component (YPbPr BNC x 3) (1 (Shared with RGBHV)), VGA-Out (15pin D-Sub), RJ45 (1 (HDBaseT & Lan)), 12v Trigger, RS-232, USB B (1 (service Only)), Remote Jack(wire remote)|
|Dimensions (W x D x H)||505 x 520 x 195mm|
|Noise Level||35dB/40dB (Dual-lamp Eco/Standard Mode)|
|Power||Supply: AC 110V – 240V @ 50~60 Hz, Consumption: 660 (Eco. Mode), 870W (Normal Mode), <0.5W (Standby Mode, Lan, RS232 Off)|
|3D Ready(DLP link, PC Video)||Yes|
|Spare Lamp P/N||3797802500-SVK|
|3D Glasses P/N||3534257700|
|Remote Control P/N||5041824900|
|Standard Accessories||VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), R/C Wire 3.5mm Jack, AC Power Cord|
|Optional Accessories||Spare Lamp P/N: 3797802500-SVK , 3D Glasses P/N: 3534257700 , Remote Control P/N: 5041824900|
|Warranty||Large Venue Warranty: 5 years projector / 1 year on lamp or 1000 hours whichever comes first|
|UPC Code||814964 339287|
