Racked ‘n’ Ready system
- 16 selectable frequencies including 4 licence free Channel 70 (UK)
- Up to 8 simultaneous channels
- Available with handheld, lavalier or instrument cable
- Diversity operation with detachable antennae
- Beltpack transmitters with locking 3.5mm jack
- Single 9V transmitter battery life of approx 10 hours
- 19″ professional flight case with built-in antennae distribution and power supply as standard

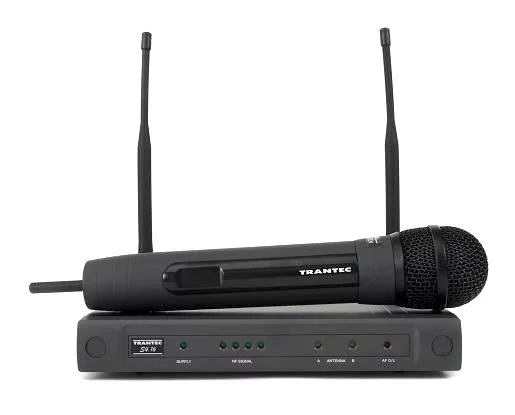

The Trantec S4.16 UHF system boasts a multi-function receiver, 16 selectable frequencies and the latest PLL quartz tuning technology, making it the ultimate choice when looking for a product that will address your demands now, and into the future.
The S4.16, our latest product, is the bigger brother of the successful S4.4 system; it’s a 16-channel system that will enable you to run 12 channels simultaneously at a price you will find hard to match.
This unique, compact, turnkey package will appeal to schools, amateur dramatics, churches, audio-visual and is ideal for your hire stock.
Product overview: * 19” Professional Flight Case * 16 UHF Frequencies * Antenna Distribution * Built In Power Supply * Tested & Ready To Go
Fully assembled package includes: * 6 x 4.16 receivers * 6 x 4.16 transmitters in any combination of handheld or beltpack (includes LP2 lapel microphone) * Antenna distribution unit (ADU), appropriate for attached receivers * Rack mounting kits/trays * 2 x antennae * Power supply included
Technical Specification

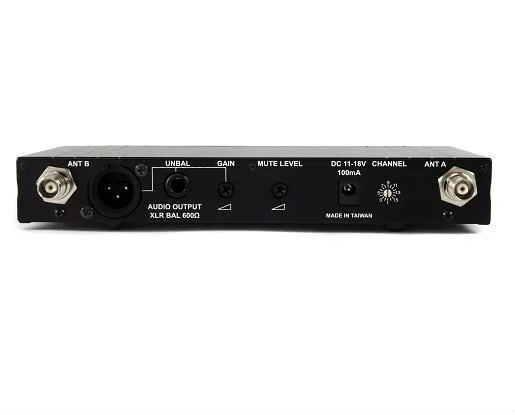

| S4.16RX-EA RECEIVER |
| RF Frequency Range: 606-61MHz (G3), 854-865MHz (EA) |
| 16 Channel Capability |
| Audio Frequency Response: Handheld 80Hz-16kHz ( /-3dB), Belt pack 60Hz-16kHz ( /-3dB) |
| Audio S/N Ratio: >96dBA |
| Audio output: Variable to 10dBu via unbalanced 1/4″ mono jack, 16 dBu via balanced XLR 3F |
| Display: 4 position RF bar graph, AF Peak (Overload), Diversity A/B |
| DC Input: 12V, 100mA |
| Dimensions: 35 x 213 x 98mm |
| Weight: Approx 580g |

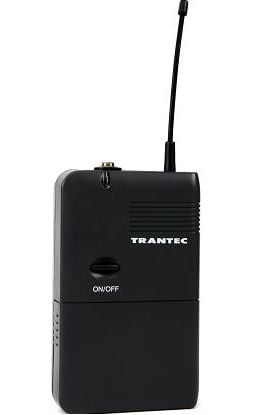

| S4.16LTX-EA TRANSMITTER |
| 16 Channel capability |
| Controls: Frequency select, On/Off switch, Lapel/Instrument select, Gain adjust |
| Indicator: Battery status LED |
| LP2 Lavalier microphone: Omni-directional back electret condenser |
| Operating voltage 9v @ <50mA |
| Operating time approx 10 hours |
| Power Output: Max 10mW |
| Connectors: Audio input via 3.5mm jack socket |
| Dimensions: 60 x 100x 30mm including belt clip |
| Weight: Approx 90g |
| Fully meets with requirements of ETSI 300-422/455, FCC part 74h |

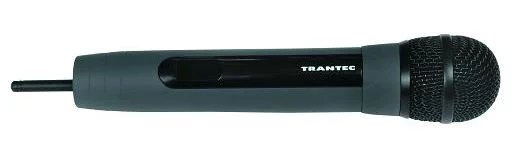

| S4.16HTX-EA TRANSMITTER |
| 16 Channel Capability |
| Controls: Frequency select and On/Off switch |
| Indicator: Battery status LED |
| High quality cardioid dynamic head |
| Operating voltage 9v @ <50mA |
| Operating time approx 10 hours |
| Power Output: Max 10mW |
| Dimensions: 280 x 50 max (including grille) |
| Weight: 210g |
Brand
Trantec
