Beltpack Transmitter
Available in Chan 70 or chan 38

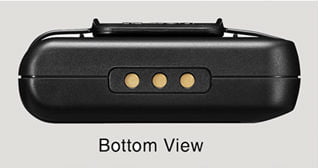

Charging contacts for use with Rechargeable battery option
For use with TOA lapel mics (not included)
Toa WM5325 UHF and electret condenser lapel microphone (not included) is suitable for both Toa’s 16 channel and 64 channel systems.
Requires TOA WT5810/WT5805/WT5800 receiver.
Complete with Cardioid Microphone.
Requires 1 x AA battery
Available in Chan 70 and Chan 38
The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
| Modulation | Frequency modulation |
|---|---|
| Frequency Range | G01 = 606 – 636 MHz G02= 614 – 636 MHz D02 = 842 – 865 MHz D04 = 863 – 865 MHz |
| Channel Selectable | 64 channels (the number of channels may differ from country to country) |
| RF Carrier Power | 50 mW or less |
| Tone Frequency | 32.768 kHz |
| Oscillator | PLL synthesized |
| Maximum Input Level | -14 dB to -29 dB (*1) (Audio level control: Min. to Max.) |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz – 15 kHz |
| Battery | WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery |
| Battery Life | Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used) |
| Indicator | Power/Battery lamps |
| Antenna | Built-in type |
| Connector | φ3.5 mm (φ0.14″) mini plug |
| Operating Temperature | -10 ℃ to 50 ℃ (14 ゜F to 122 ゜F) (except battery) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, coating |
| Dimensions | 62 (W) × 102.5 (H) × 23 (D) mm (2.44″ × 4.04″ × 0.91″) |
| Weight | 90 g (0.2 lb) (with battery) |
| Accessory | Screw driver …1, Storage case …1, Neck strap …1 |
| Option | Unidirectional lavalier microphone: YP-M5300 Omnidirectional lavalier microphone: YP-M5310 Headset microphone: WH-4000A, WH-4000H |
