Name: Tascam SS-R100
SKU: HD/TAS09
Price: 549.00 GBP
Availability: BackOrder

Discontinued

Solid state recoding to any available Media (CF, SD/SDHC, USB Memory)

1U rack-space compact design
Up to 20 tracks of flash start with RC-20 remote control device
PS/2 or USB keyboard connection for file name edit, transport control, edit and flash start
Multiple playback modes for situations requiring continuous, single, programmed and random playback
Playback speed control without pitch change

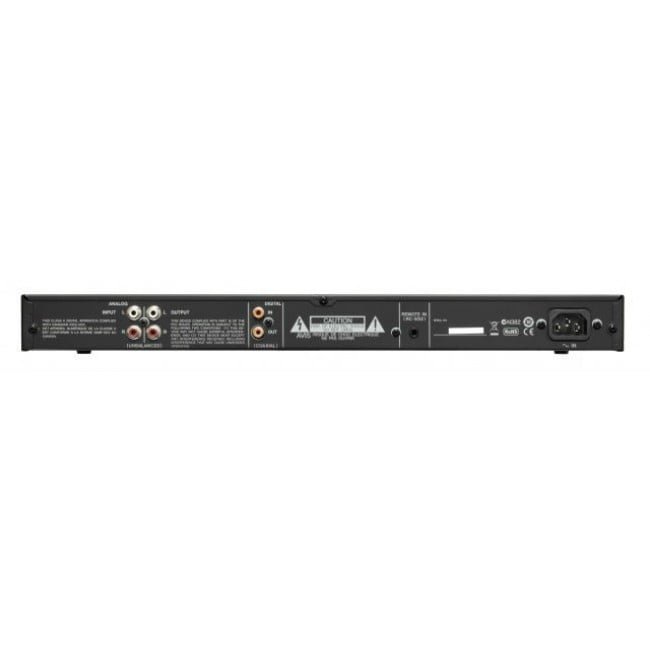

RCA unbalanced I/O

Tag: DiscontinuedCategory: Digital / MP3 RecordersSKU: HD/TAS09

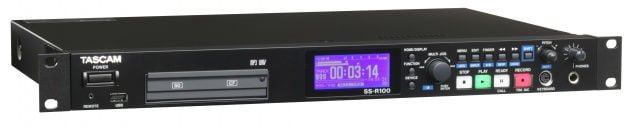

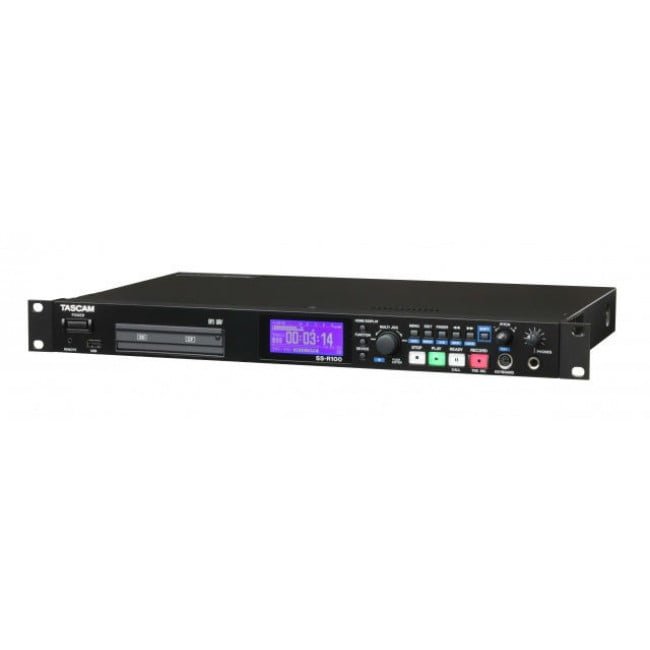

The TASCAM SS-R100 Solid State Recorder – designed for the Broadcast and Contractor markets – record in WAV & MP3 to Compact Flash, SD/SHC, and USB memory. The SS-R100 is down to basics with unbalanced and coaxial digital I/O only. This recorder supports the RC-20 direct play remote for up to 20 tracks of flash start.

Solid state recoding to any available Media (CF, SD/SDHC, USB Memory)
One-rack-space compact design
Up to 20 tracks of flash start with RC-20 remote control device
PS/2 or USB keyboard connection for file name edit, transport control, edit and flash start
Multiple playback modes for situations requiring continuous, single, programmed and random playback
Playback speed control without pitch change
RCA unbalanced I/O
Coaxial S/PDIF digital I/O

Dimensions (W x H x D): 19 x 1.8 x 11.9 (in) 482.6 x 44.5 x 301 (mm)

Weight: 7.50 (lbs) 3.4(kg)

SS-R100 SPECIFICATIONS

	SS-CDR200	SS-R200	SS-R100
Supported media	CompactFlash card(512MB – 64GB, Type 1 only) SD(512MB – 2GB)/SDHC(4GB～32GB)card USB memory(512MB – 64GB)
	CD-R, CD-R-DA, CD-RW, CD-RW-DA	–	–
Recording formats
WAV	Stereo/Mono, 44.1kHz/48kHz, 16bit
MP3	Stereo/Mono, 44.1kHz/48kHz, 64kbps-320kbps
CD-DA	Stereo, 44.1kHz	–	–
Playback formats
WAV	Stereo/Mono, 44.1kHz/48kHz, 16/24-bit
MP3	Stereo/Mono, 44,1kHz/48kHz, 64kbps-320kbps
CD-DA	Stereo, 44.1kHz	–	–
Number of channels	2 mono(or 1 stereo)
ANALOG INPUTS
BALANCED
Connecter	XLR-3-31(1：GND, 2：HOT, 3：COLD)		–
Standard input level	4dBu(1.23Vrms)		–
Maximum input level	20dBu(7.75Vrms)		–
Minimum input level	-10dBu(0.25Vrms) or more		–
Input impedance	22k ohms		–
UNBALANCED
Connecter	RCA pin jacks
Standard input level	-10dBV(0.316Vrms)
Maximum input level	6dBV(2.0Vrms)
Minimum input level	-24dBV(0.06Vrms) or more
Input impedance	22k ohms
ANALOG OUTPUTS
BALANCED
Connecter	XLR-3-32(1：GND, 2：HOT, 3：COLD		–
Standard output level	4dBu(1.23Vrms)		–
Maximum output level	20dBu(7.75Vrms )		–
output impedance	100 ohms		–
BALANCED
Connecter	RCA pin jacks
Standard output level	-10dBV(0.316Vrms)
Maximum output level	6dBV(2.0Vrms)
output impedance	200 ohms
PHONES
Connecter	Standard 6.3mm (1/4′) stereo jack
Maximum output	45mW 45mW (into 32 ohms load, 0.1% distortion)
DIGITAL INPUT
Connecter	RCA pin jack
Format	IEC60958-3(S/PDIF)
Input frequency	32kHz-48kHz
DIGITAL OUTPUT
Connecter	RCA pin jack
Format	IEC60958-3(S/PDIF)
CONTROL I/O
RS-232C
Connecter	D-sub 9pin		–
Protocol	RS-232C		–
PARALLEL
Connecter	D-sub 25pin		–
Maximum input voltage	5.5V		–
High level minimum input voltage	3.75V		–
Low level maximum input voltage	1.25V		–
Output format	Open drain(withstand voltage 50 V, maximum 50 mA)		–
Low level maximum output voltage	0.5V		–
5V power maximum supplied curent	100mA		–
REMOTE IN (RC-SS2)
Connecter	3.5mm TRS jack
REMOTE (for RC-20 and RC-3F)
Connecter	2.5mm TRS jack
KEYBOARD
Connecter	mini-DIN (PS/2)
USB
Connecter	USB A-type 4pin
Protocol	USB2.0 HIGH SPEED(480Mbps)
Power	AC100-240V, 50/60Hz
Power consumption	100V：20W, 110V-240V：23W	100V：16W, 110V-240V：20W
Dimensions	482.6(W)mm×44.5(H)mm×301(D)mm
Weight	3,7kg	3,4kg	3.4kg
Operating temperature range	5-35˚C

Audio performance
Frequency response	20Hz-20kHz： /-0.5dB(JEITA)
S/Nratio	95dB or more(JEITA)
Dynamic range	95dB(JEITA)
Distortion	0.005% or less( JEITA)
Channel crosstalk	95dB(JEITA)
