Signet PDA DL50/K – Domestic Loop Amp Kit

£135.00 Inc VAT

Ideal for small rooms etc
Simple to adjust, tamper-resistant controls
Connections for two 3.5mm electret microphones
Alert tone input for doorbells,
fire alarms, security systems, etc.
Coverage up to 50m sq
Min 4 year manufacturer warranty*

Signet
Category: SKU: AM/LOO/SIG01

Ideal for small rooms etc
Simple to adjust, tamper-resistant controls
Connections for two 3.5mm electret microphones
Alert tone input for doorbells,
fire alarms, security systems, etc.
Coverage up to 50m sq
Min 4 year manufacturer warranty*

SigNET’s new DL50/K domestic loop amplifier kit includes everything you need to create a high quality stand-alone induction loop system for a bedroom, living room, TV lounge or study.
Carefully designed to sit discreetly alongside all types of audio-visual equipment, the amplifier features one set of phono inputs (for direct connection to television sets, etc), two icrophone inputs and an alert input (for connection to fire alarms, doorbells, etc).

Screwdriver-adjustable drive, level, mix and tone controls are provided, allowing the system to be tailored to suit the exact requirements of any room, with installation further aided by the provision of a headphone socket, output current meter, input peak LED and an easy-to-follow installation guide.

Ideal for bedrooms, living rooms,
TV lounges, studies and other domestic applications

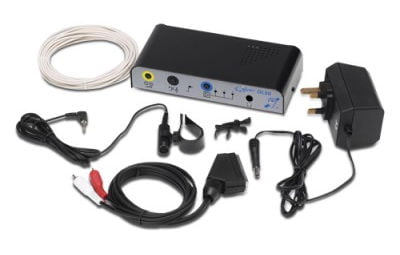

Kit includes:-
1 x DL50 induction loop amplifier
1 x Plug-top power supply
1 x 33m reel of induction loop cable
1 x SCART-to-double-phono audio lead
1 x Microphone c/w mounting attachments
1 x Easy-to-follow installation manual

Attractively-designed amplifier provides max. square room coverage of 50m2 (7m x 7m) or max. rectangular room coverage of up to 100m2 (5m x 20m)*
Connections provided for two 3.5mm electret microphones (one mic. is provided in the DL50/K kit) and one SCART-todouble-phono audio lead (other leads are available for purchase if required)
Simple to adjust, tamper-resistant drive, level, tone and mic. priority controls
Input peak, output current, signal present and power on LEDs
Headphone socket aids system set-up
Alert tone input for doorbells, fire alarms, security systems, etc.
Automatic compressor limiter
Full 2? drive current capability for increased coverage at higher frequencies
Fully compliant with EN60118-4 (formerly BS6083) and BS7594:1993

*Manufacturer warranty – Signet offer a 5 year product warranty from the date of manufacture so generally this will offer a minimum of 4 years warranty to customer.

Width x Height x Depth 185 mm x 40 mm x 85 mm
Weight 550g (amplifier only)
Finish Satin black
