Express yourself hands free: cover the whole stage and focus on your performance rather than on holding your microphone. The included cardioid condenser headset microphone is easy to wear, has great pop protection and produces powerful sound. Also included in this system is a stage-tested true diversity receiver and a bodypack transmitter with charging contacts for the optional BA2015 rechargeable battery.

If you do intend to run on Channel 38 you will require a licence from Ofcom. Operating on Channel 70 will not require a licence.

Features:

• Sturdy metal housing (transmitter and receiver)
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indicatation in 4 steps, also shown on receiver display
• Programmable Mute function
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

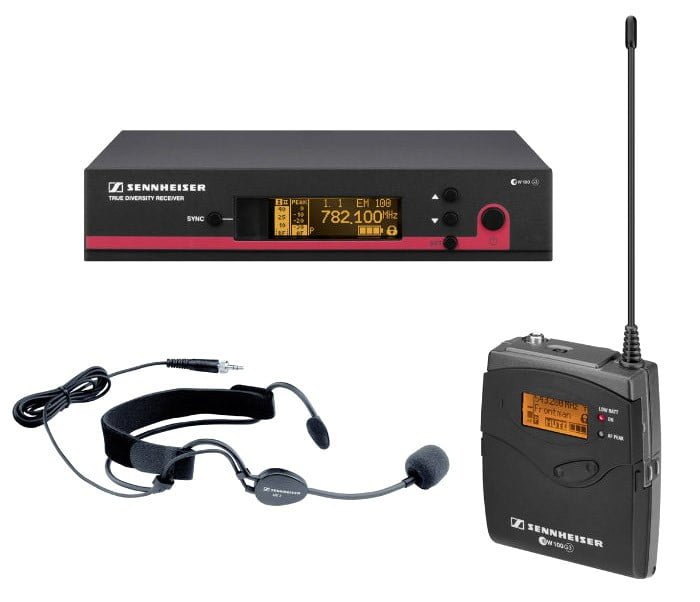

Delivery Includes:

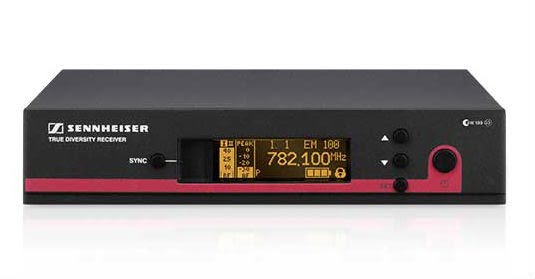

1 EM 100 G3 rack-mount receiver

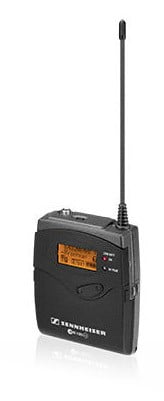

1 SK 100 G3 bodypack transmitter
1 ME 3-ew headset (cardioid)
1 NT 2 power supply unit
2 antennas
2 stacking elements
2 AA batteries
Operating instructions

Technical Data – system
RF frequency range 516….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: 18 dBu max
Audio output level (unbalanced) Jack: 12 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 900 g
RF output power 30 mW
Operating time (transmitter) typ. 8 h
Input voltage range 1,8 V line
Input voltage range 2,4 V line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g

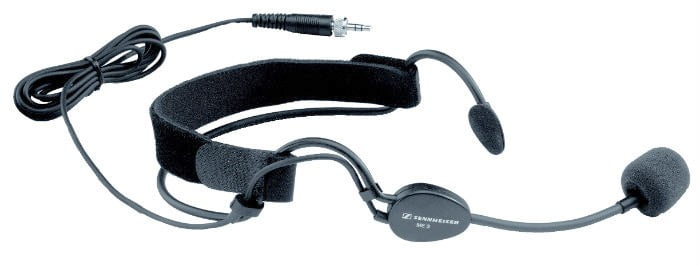

ME-3 N headset mic
Transducer; Microphone type elektret
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 150 dB(SPL) max.
Pick-up pattern super-cardioid

Brand

Sennheiser

DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
