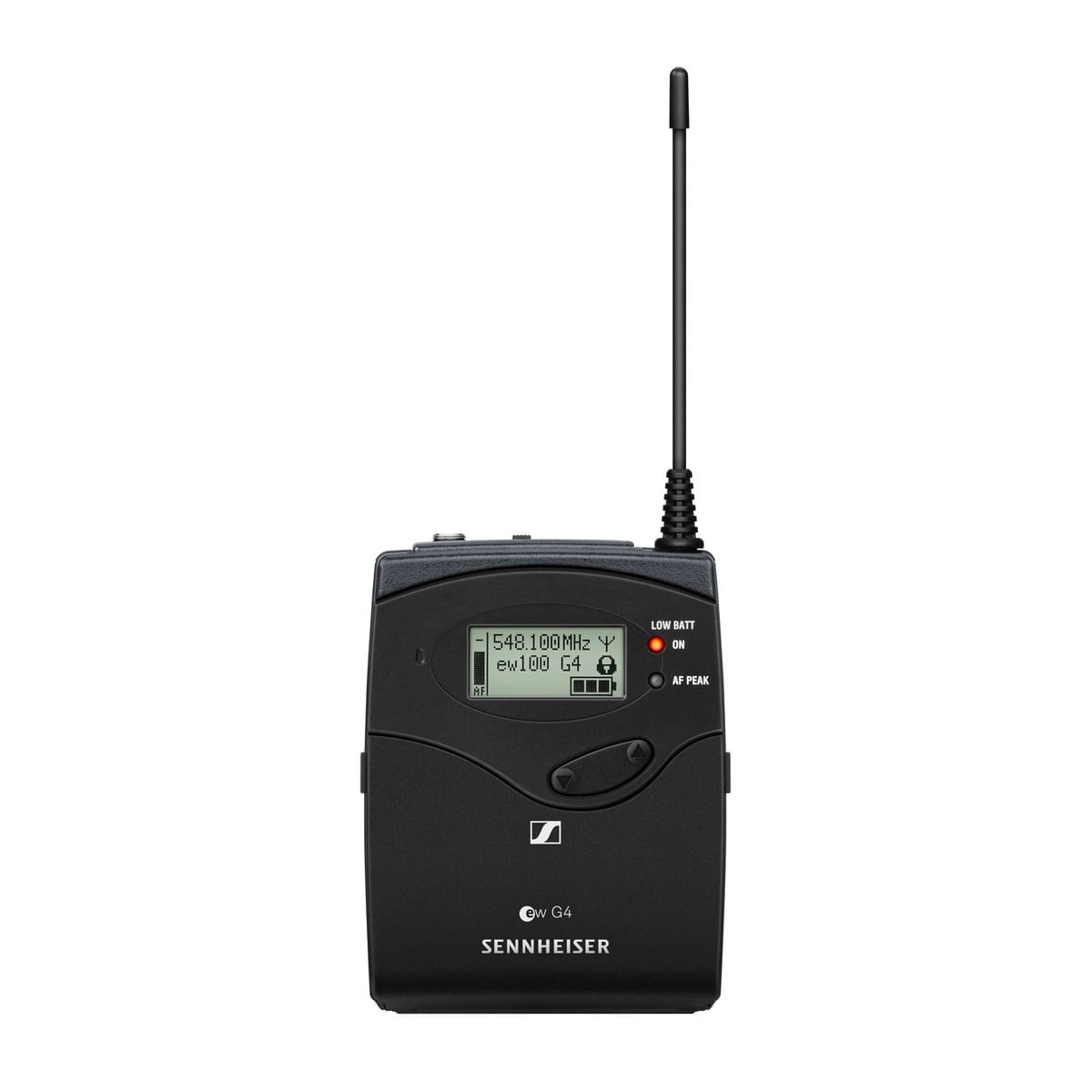

Sennheiser EW100-G4 – SK100 Body Pack Transmitter

Discontinued - Limited stock still available.

Please see the replacement EW-D SK Bodypack

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels

Sennheiser
Categories: , SKU: RM/TX/BP/SEN07

Please see the replacement EW-D SK Bodypack

FEATURES

  • Robust bodypack transmitter for daily use on stage.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
    transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

DELIVERY INCLUDES

  • SK 100 G4 bodypack transmitter
  • 2 AA batteries
  • quick guide
  • safety guide
  • manufacturer declaration sheet

SK 100 G4
RF characteristics Modulation Wideband FM
Frequency ranges A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
1G8: 1785 – 1800 MHz
Transmission frequencies Max. 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω Max. 30 mW
Pilot tone squelch Can be switched off
AF characteristics Compander system Sennheiser HDX
AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dBA
Total harmonic distortion (THD) ≤ 0.9 %
Max. microphone/line input voltage 3 Veff
Microphone/line input impedance 40 kΩ, unbalanced / 1 MΩ
Input capacitance Switchable
Setting range for input sensitivity 60 dB, adjustable in 3 dB steps

Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 160 g
