Sennheiser ew100 G3 & Audio Technica BP892cLM3

Please choose a frequency range
Discontinued

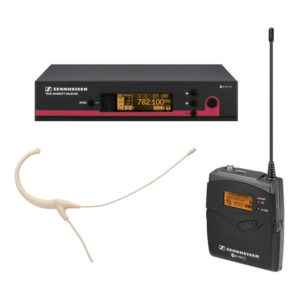

  • Sennheiser ew100 G3 radio system & Audio Technica BP892cLM3 headset
  • True diversity rack mount radio system
  • High quality, discreet headset condenser mic
  • Excellent radio reception and sound quality
  • Special package price
Audio TechnicaSennheiser
Tag: Categories: , SKU: RM/OTH/SENN/BP893

Product Details:
Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

Features:

  • Sturdy metal housing (transmitter and receiver
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Delivery Includes

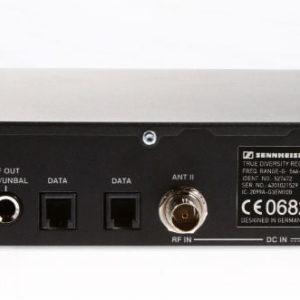

1 EM 100 G3 rack-mount receiver
1 SK 100 G3 bodypack transmitter
1 NT 2 power supply unit
2 antennas
2 stacking elements
2 AA batteries
Operating instructions

NOTE: If using rechargeable batteries we recommend Nickel Metal Hydride (NiMH) type.

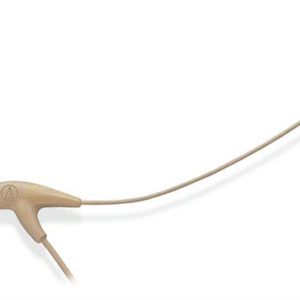

BP892cLM3 MicroSet’ Omnidirectional Condenser Headworn Microphone

Introducing a giant stride in the technology of inconspicuous sound. With a capsule diameter of just 2.6 mm, the new MicroSet provides the ultimate in low-profile, high-performance audio. This innovative omnidirectional condenser headworn mic offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind either ear for an ultra-secure, comfortable fit with or without glasses.

Audio-Technica’s high-SPL BP892 MicroSet’ offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892 hooks securely behind either ear and can be worn for hours without fatigue.

The microphone features a flat, extended frequency response and other outstanding performance specifications, resulting in extremely intelligible, natural audio for stage and television talent, lecturers and houses of worship. Protected by a highly durable Parylene coating, the new headworn mic is built to stand up to the rigors of day-to-day use.

Key points:
• Handles high sound pressure levels with ease
• Extremely intelligible natural audio
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
• Ergonomic under-ear design¤flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses
• High-pass filter on power module provides a steep low-frequency attenuation to improve sound pickup without effecting voice quality

Specifications – Sennheiser ew100 G3 system
RF frequency range 516….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: 18 dBu max
Audio output level (unbalanced) Jack: 12 dBu max
Battery Specification 10,5 – 16 V DC battery AA (Mignon)
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 900 g
RF output power 30 mW
Battery Specification 2x 1.5 V battery AA (Mignon)
Operating time (transmitter) typ. 8 h
Input voltage range 1,8 V line
Input voltage range 3,0 V eff line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
Transducer; Microphone type elektret
AF sensitivity 40 mV/Pa
Sound pressure level (SPL) 120 dB(SPL) max.
Pick-up pattern cardioid

Specifications – BP892 headset mic
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave (wired only)
OPEN CIRCUIT SENSITIVITY ¤ 49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms (wired only)
MAXIMUM INPUT SOUND LEVEL 135 dB SPL, 1 kHz at 3% T.H.D.
DYNAMIC RANGE (typical) 104 dB, 1 kHz at Max SPL (wired only)
SIGNAL-TO-NOISE RATIO 63 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical (wired only)
SWITCH Flat, roll-off (wired only)
CURRENT CONSUMPTION 0.1 mA typical at 5V (wireless only)
VOLTAGE RANGE 2.5-11V (wireless only)
WEIGHT (MICROPHONE) 2.6 g (0.09 oz)
WEIGHT (POWER MODULE) 85 g (3.0 oz) (wired only)
DIMENSIONS (MICROPHONE) 8.1 mm (0.43″) long, 2.6 mm (0.10″) diameter – Boom: 98.4 mm (3.87″) long, 1.07 mm (0.04″) diameter
DIMENSIONS (POWER MODULE) 97.6 mm (3.84″) long, 18.9 mm (0.74″) diameter (wired only)
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 1.4 m long (permanently attached to microphone),
1.6 mm diameter, 2-conductor shielded cable with locking 3.5mm jack connector for Sennheiser radio systems (wired only)

ACCESSORIES FURNISHED BP892: AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens; two AT8156 element
covers; moisture guard; belt clip (wired only); carrying case
BP892-TH: AT8539 power module (wired only); AT8440 cable clip; two AT8157-TH windscreens; two AT8156-TH
element covers; moisture guard; belt clip (wired only); carrying case
