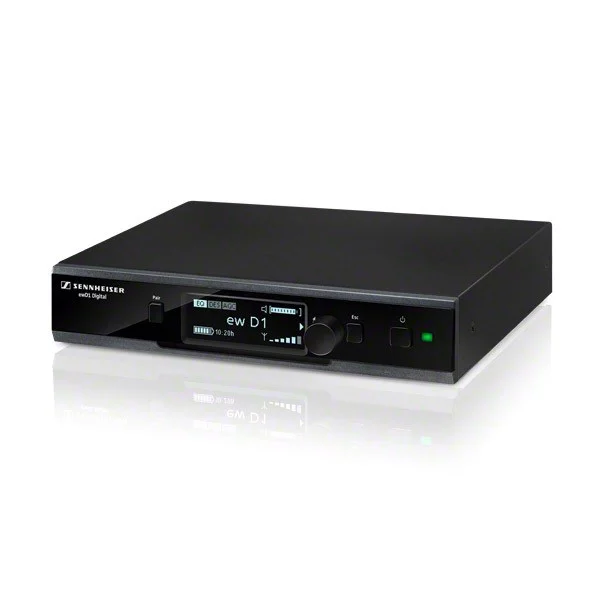

Evolution wireless D1 stationary receiver to use with SK D1 bodypack transmitter or SKM D1 handheld transmitter for live stage use.
Evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.
RF sensitivity <-90 dBm
RF output power back channel 10 mW/100 mW (country-specific)
Audio output Mic/line level switch –24 dB/0 dB, XLR, balanced max 18 dBu, Jack, unbalanced/balanced max 12 dBu/max 18 dBu
Low-cut filter –3 dB at 120 Hz
Equalizer 7-band graphic equalizer
Latency multi-frequency targets
Automatic gain control (AGC) compression/expansion with automatic make-up gain function
Connection XLR/¼” (6.3 mm) jack
Antenna connector 2 x Rev-SMA
Network socket RJ45
Network protocol Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
Power supply 12 V DC hollow jack
Current consumption 350 mA
Weight approx. 824 g
