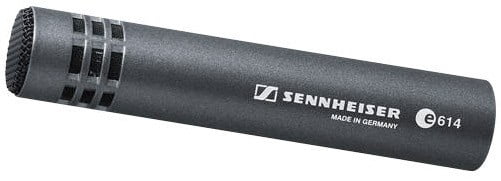

The super-cardioid e 614 is a permantly polarized condenser microphone designed for demanding applications which require a wide frequency response, high SPL, fast transient response and a compact design. With its frequency response of 40 Hz to 20 kHz, the e 614 is able to capture the full sound of the instrument, while its super-cardioid pick-up pattern isolates the microphone from other on-stage signals.
An excellent microphone for percussion instruments, the e 614 is also an ideal choice for woodwind and string instruments. Its excellent acoustic properties also make it a valuable tool for home recording.
Effective rejection of incidental rear noise
Excellent directivity across the whole frequency range
Full, natural sound
High maximum sound pressure level
Wide frequency response
Delivery Includes Microphone pouch Microphone clip MZQ 100
Transducer principle pre-polarised condenser microphone Pick-up pattern super-cardioid Frequency response 40 Hz … 20 kHz Sensitivity in free field, no load (1kHz) 3 mV/Pa = – 50dB (0 dB = 1 V/Pa) Nominal impedance 50 Ohm Min. terminating impedance 1000 Ohm Maximum sound pressure level (passiv) 139 dB/SPL Equivalent noise level 24 dB(A) Equivalent noise level weighted as per CCIR 468-3 35 dB Phantom powering 12 ¤ 52 V / 3 mA Connector XLR-3 Dimensions ˜ 20mm, L = 100mm Weight w/o cable 93 g
