RCF EVOX JMIX8

  • Home
  • DM Shop
  • Sound / PA
  • Portable PA
  • Mains Powered
  • RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF EVOX JMIX8
RCF

£875.00 Inc VAT

Active Two Way Array Music System

  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 12″ woofer, high power 2.5″ voice coil

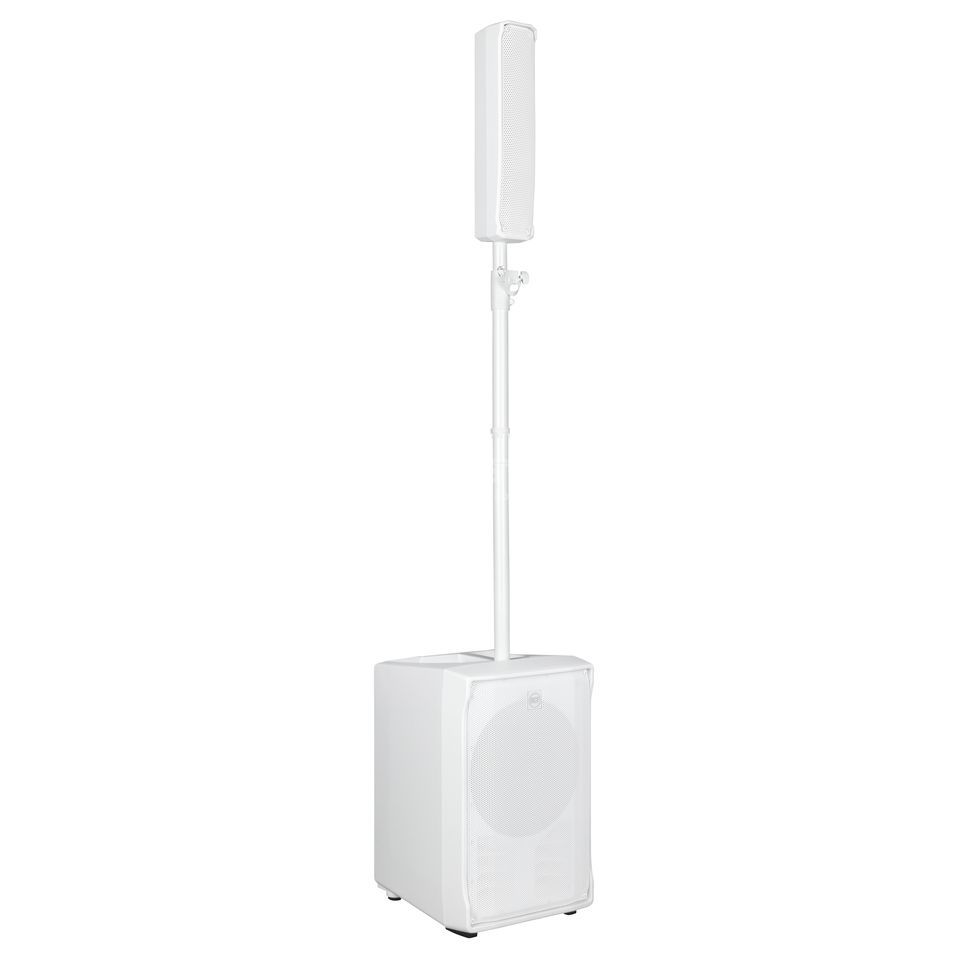

  • Available in Black or White Finish

SKU: MX/POW/RCF01 Categories: Mains Powered, Portable PA
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

Active Two Way Array Music System

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

    • 128 dB Max SPL
    • 1400 Watt 2-way peak power
    • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
    • DSP Processing with FiRPHASE
    • 12″ woofer, high power 2.5″ voice coil
    • 8 x 2″ ultra compact fullrange 1.0″ voice coil
    • 2350x350x450 mm 92.5×13.77×17.71 in (HxWxD)
    • 24,4/53.8 kg/lbs

JMIX IT!

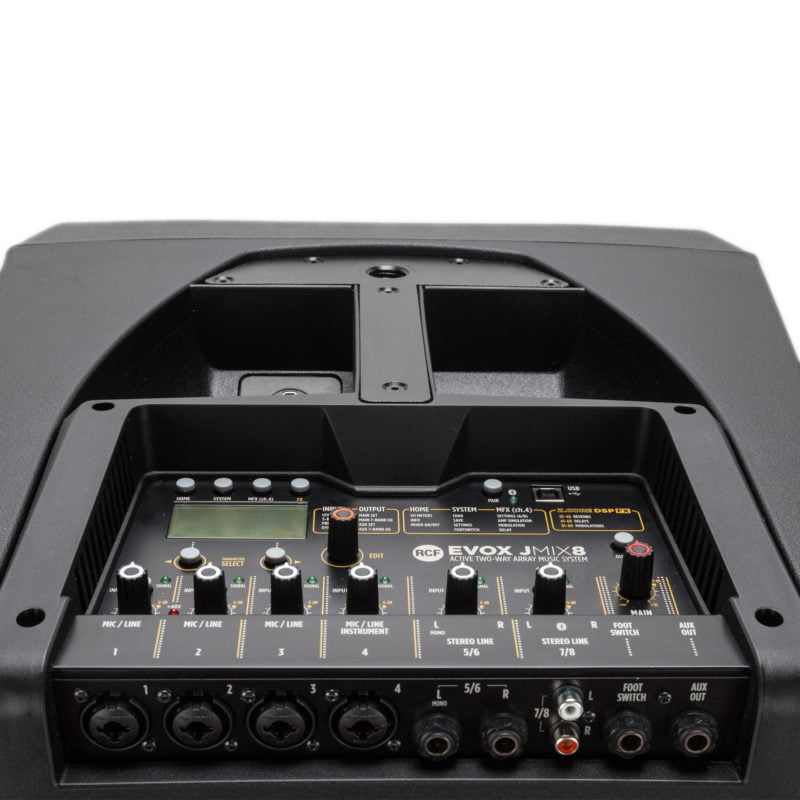

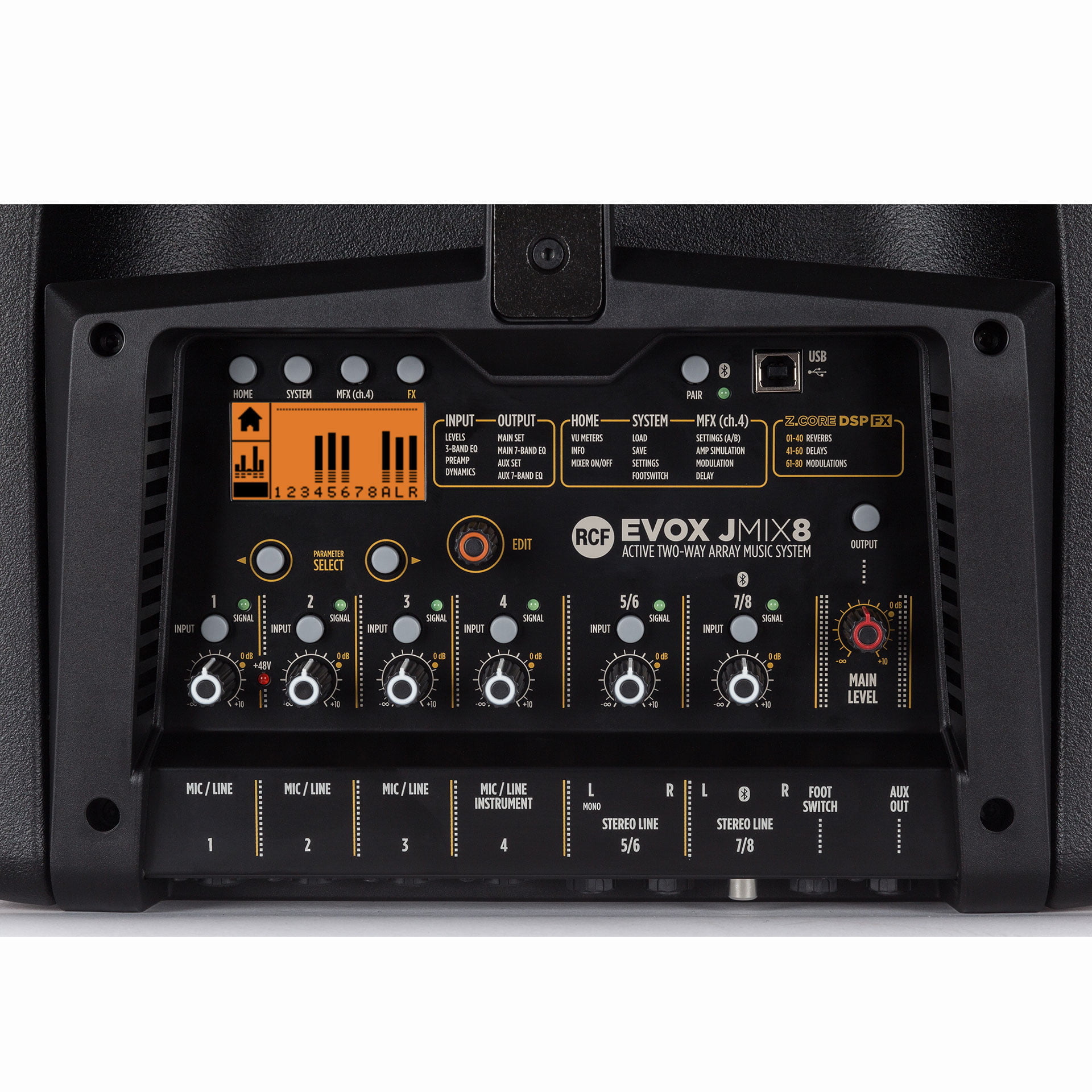

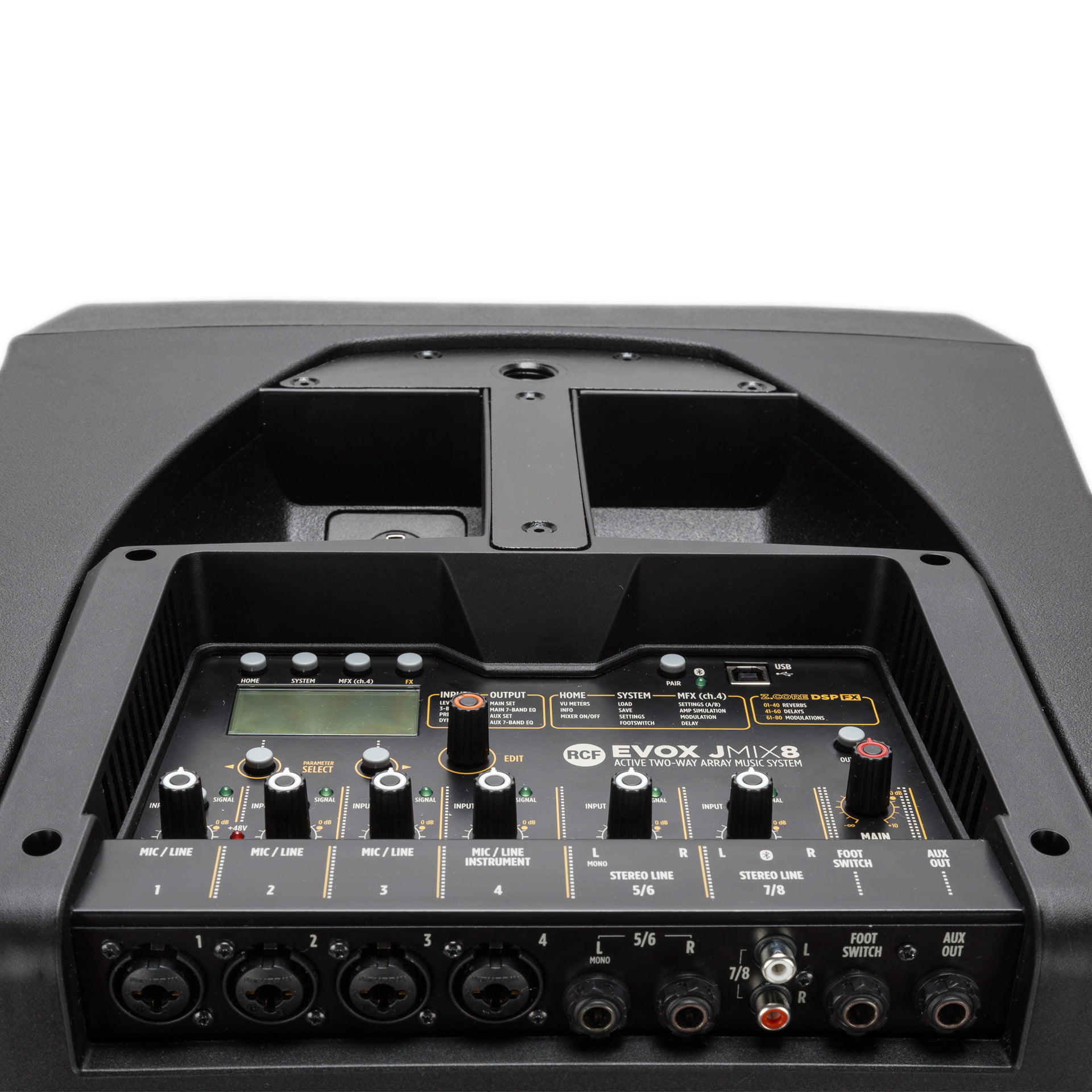

The mixer section features a high quality professional preamplifier with remote digital gain control, selectable high pass filter, pan control and polarity reversal switch. Phantom power for condenser/electret microphones (+48V) available for channel 1 and 2. Each input channel is provided with a three band EQ: ±12dB gain shelving equaliser for lows and highs and a semiparametric EQ from 50Hz to 12kHz and ±12dB gain for the mid band. The EQ can be switched OFF with the touch of a button. Each channel can send audio to the FX chain and to the AUXiliary output for monitoring or other creative uses.

POWERFUL CLASS D AMPLIFIER

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS

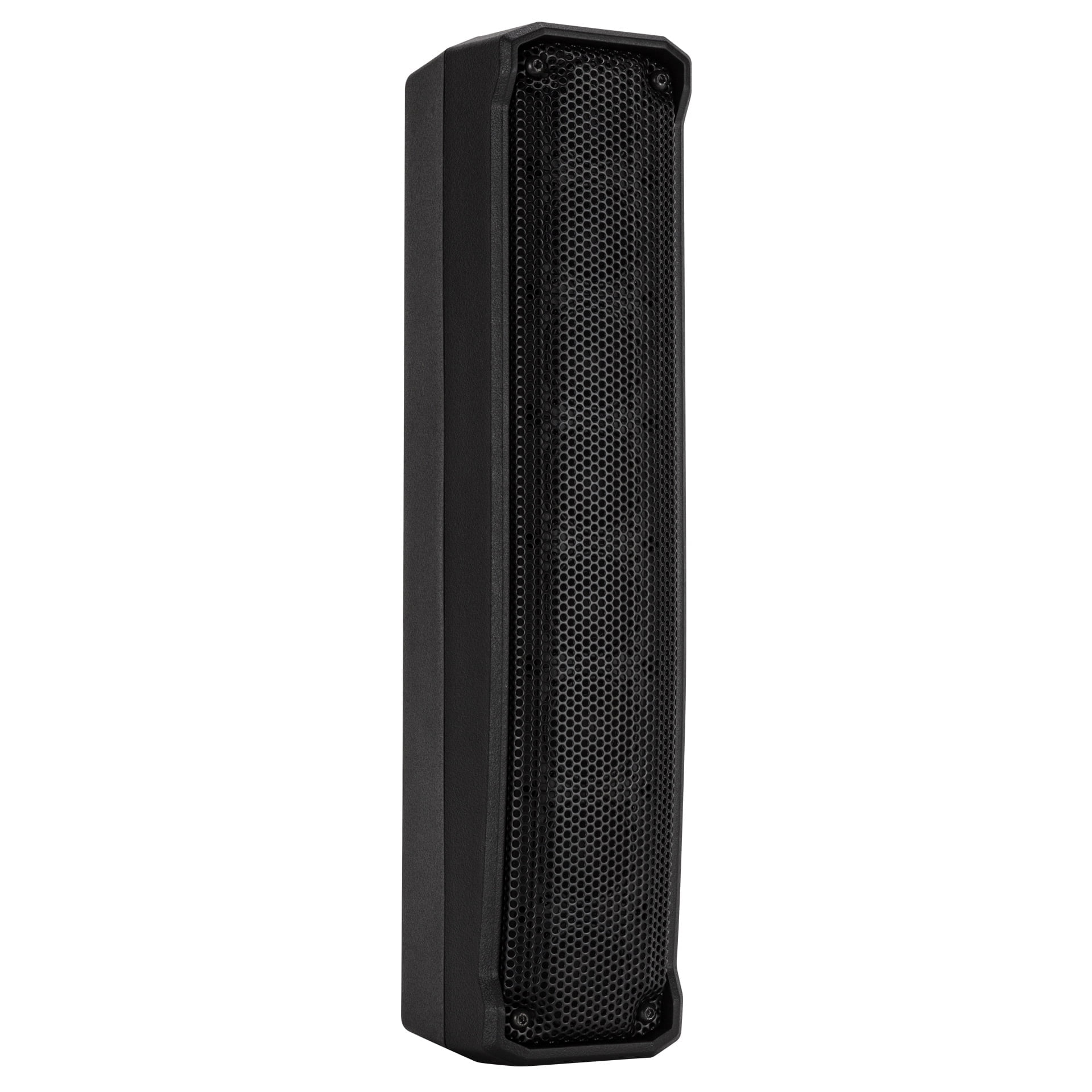

HIGH FREQUENCIES – The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

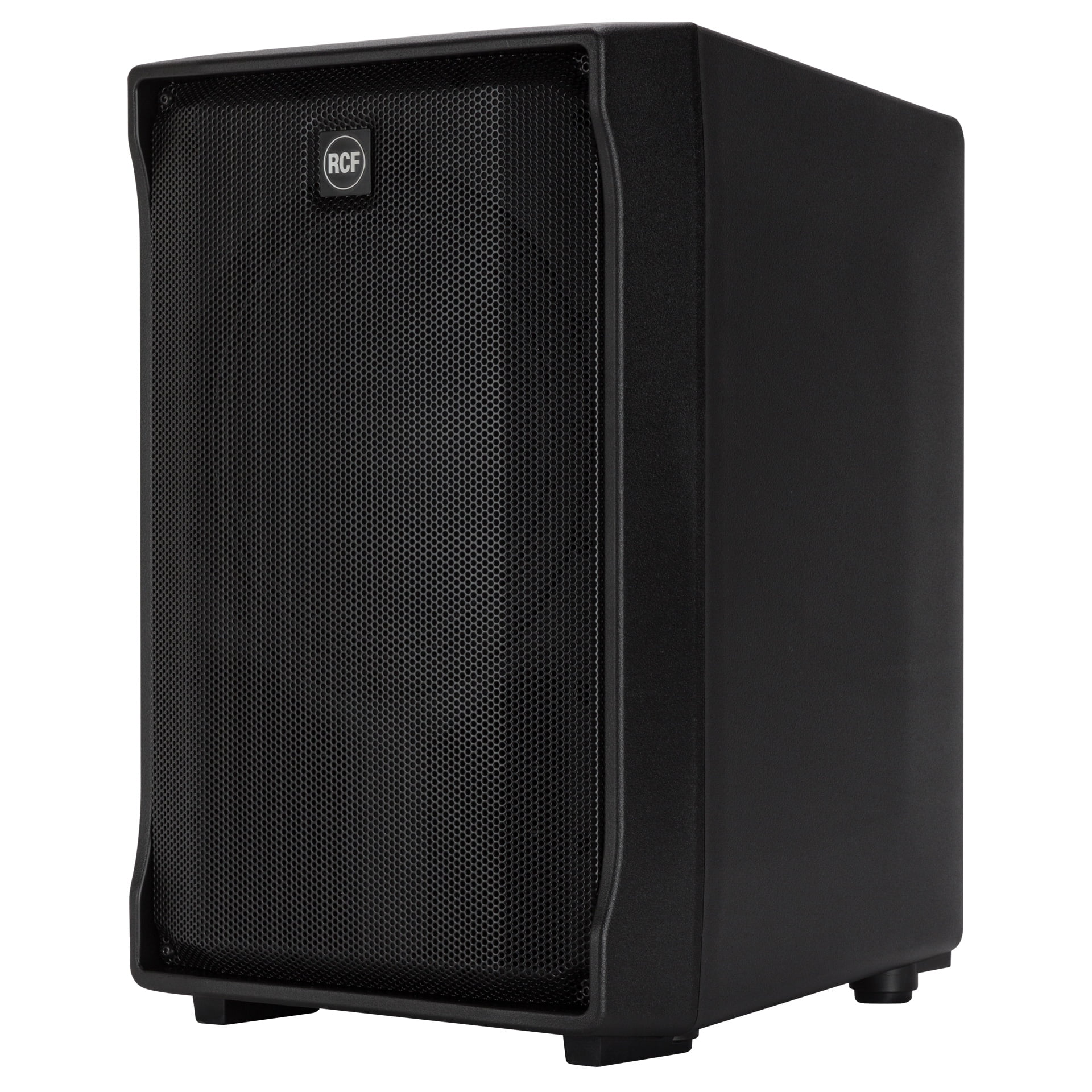

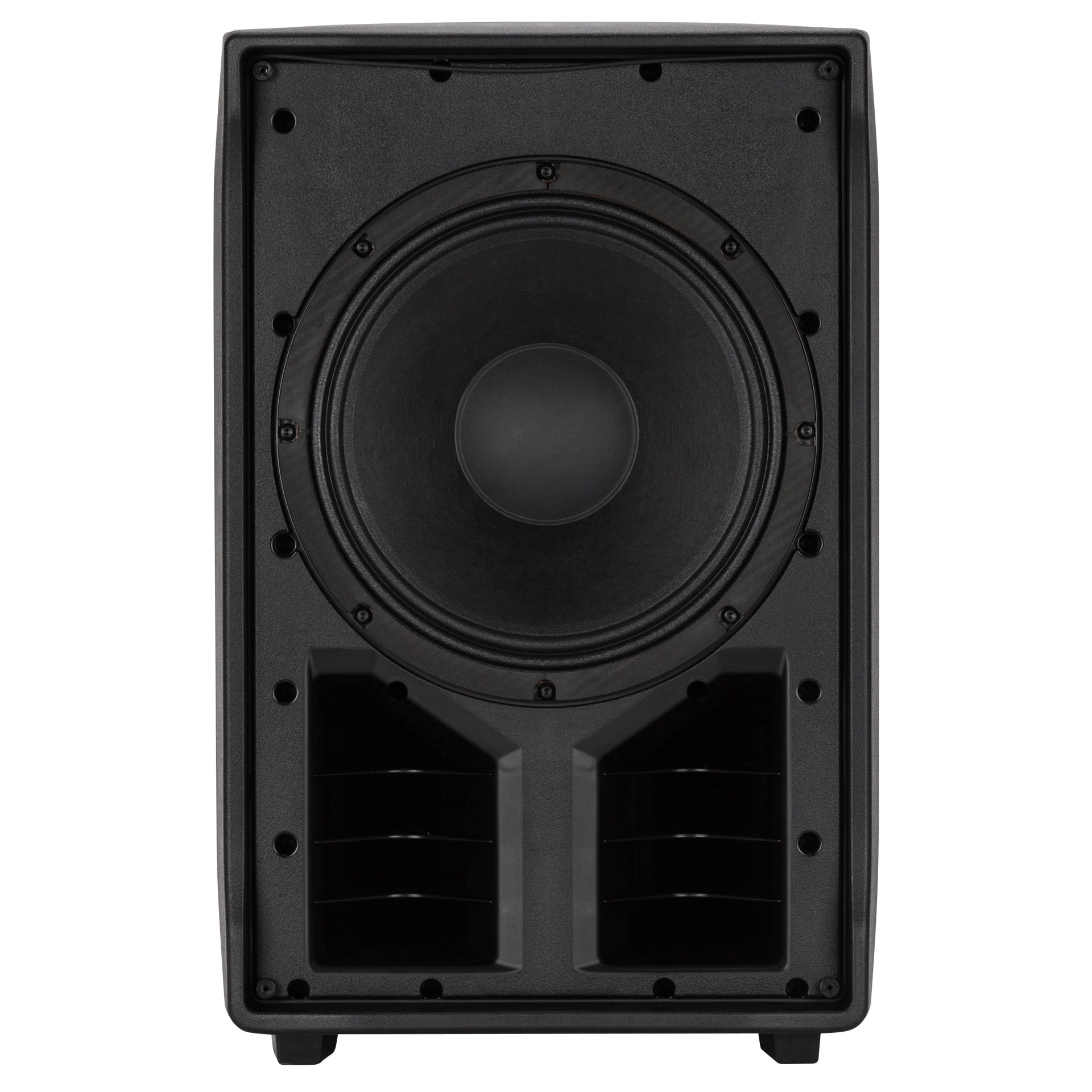

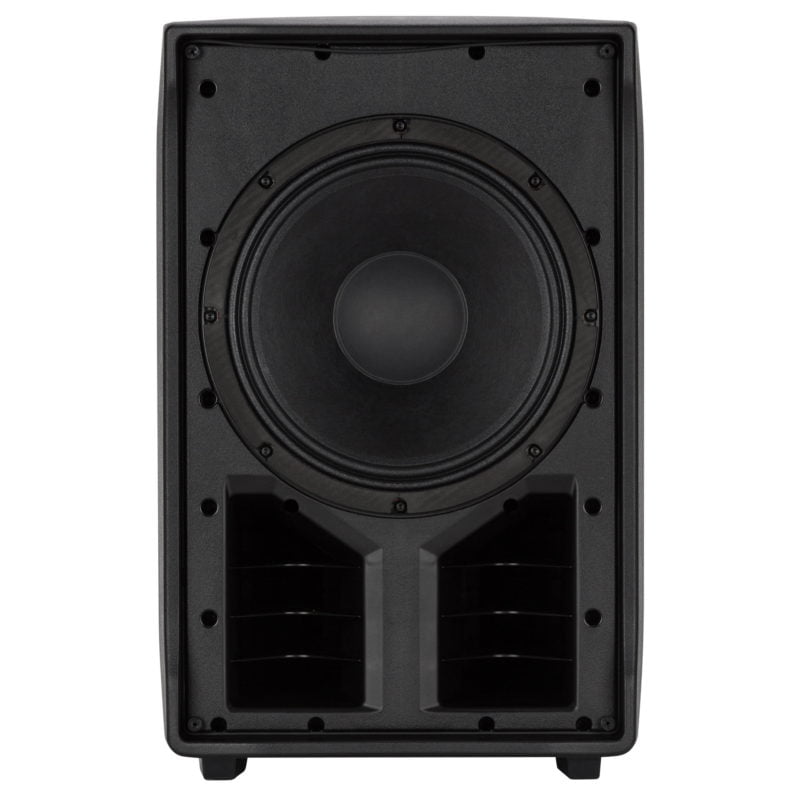

LOW FREQUENCIES – The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

READY TO PLAY IN A FEW SIMPLE STEPS

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

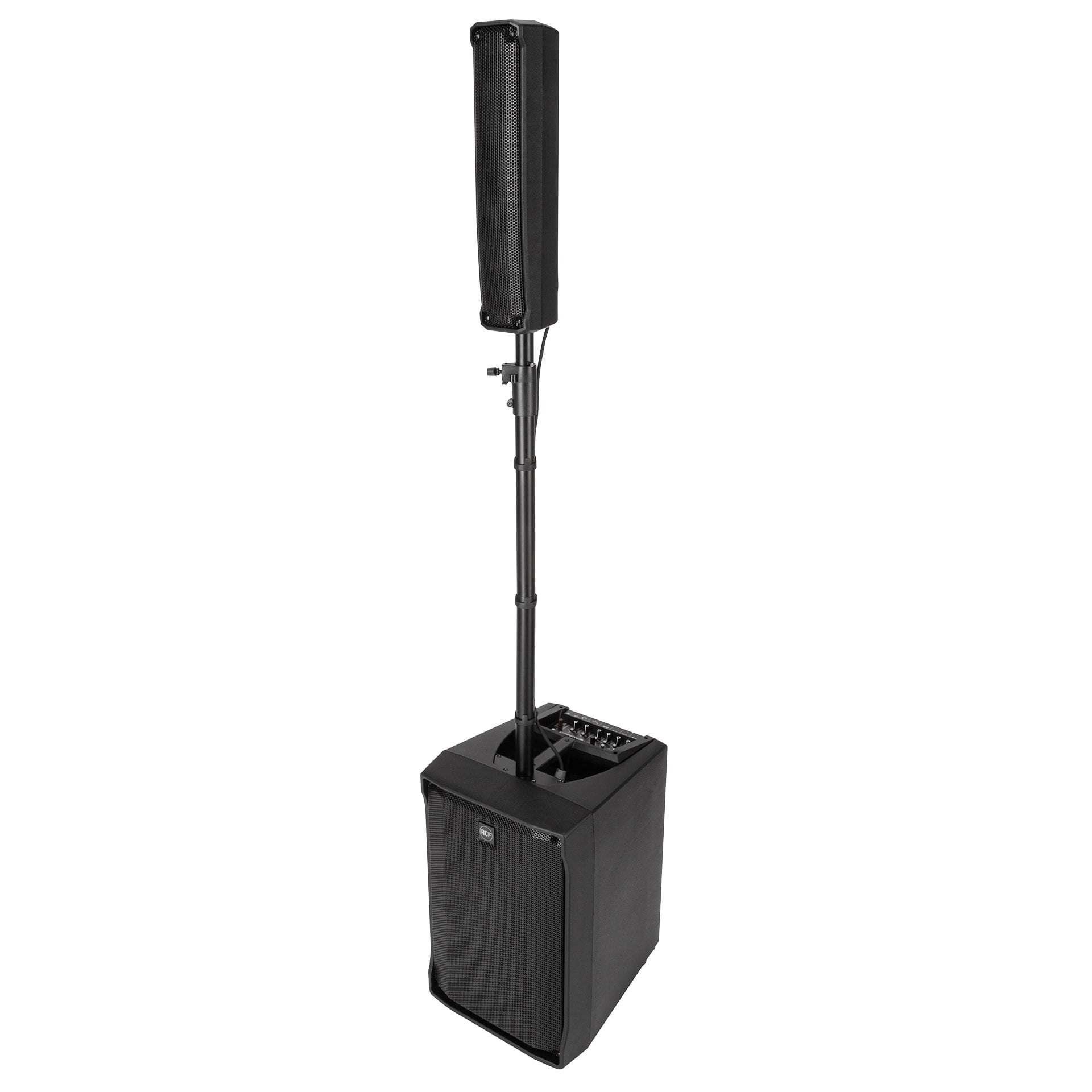

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

J SYSTEM CONFIGURATIONS

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

PLAY! Carrying and mounting your audio system has never been so quick.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

DYNAMIC COMPRESSOR

MIC/LINE inputs 1 to 4 are provided with a single control dynamic compressor. The control slider acts on the amount of compressor intervention. A dedicated button toggles the compressor ON and OFF. Up to 6 different presets can be selected from the Compressor Model list: Light, Heavy, Vocal, Bass, Acoustic, and Drum.

MAIN CHANNEL

A 7-band graphic EQ on the Main Channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more RCF EVOX J harmonics, four mastering processing presets can be selected: MASTERING, MASTER BOOST, LOUD & PROUD, and HI-FI.

GUITAR AMPS AND CABINETS INCLUDED

The line input 4 can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for the maximum reality: Darkface ’65, Jazz C, Rock’64, Rock 800 Crunch, Rock 900 Lead, Top30, Modern, Bassamp, Bassmate, Markbass 1, Markbass 2, Slo 88 Crunch, Slo 88 Lead, Overange 120, Heavy 51 and others. Shape the sound of each amp via 4 different parameters, store it in the Preset memory and recall via EVOX App, Panel, or Footswitch. A wide range of integrated sound options at your fingertips.

TONS OF EFFECTS

80 High Quality effects presets from the premium RCF Z.CORE.DSP, each with three parameter controls: 40 different reverbs, providing a realistic simulation of large spaces, such as halls, rooms or hardware reverbs; 20 different delay types; 20 modulation effects to shape any nuance of your music.

MFX

A whole range of easy-to-use effects helps the musician to find the right sound in any song: chorus, tremolo and flanger on the modulation effects unit, plus a useful delay for musical instruments.

EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

Acoustical specifications

FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz

HORIZONTAL COVERAGE ANGLE:
120°

MAX SPL @ 1M:
128 dB

VERTICAL COVERAGE ANGLE:
30°

Transducers

FULLRANGE:
8 x 2.0”, 1.0” v.c

WOOFER:
12”, 2.5” v.c

Input/Output section

INPUT CONNECTORS:
XLR, Jack

INPUT SENSITIVITY:
-2 dBu/+4 dBu

INPUT SIGNAL:
bal/unbal

OUTPUT CONNECTORS:
XLR

Processor section

CONTROLS:
Volume, Boost, Mic/Line

CROSSOVER FREQUENCIES:
220 Hz

LIMITER:
Soft Limiter

PROTECTIONS:
Thermal, RMS

Power section



CONNECTIONS:

VDE

COOLING:
Convection

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

TOTAL POWER:
1400 W Peak, 700 W RMS
Electronic specifications

FREQUENCY RESPONSE:
20 Hz ÷ 20 Hz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
0.004% A-Weighted

Processing

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

DYNAMIC RANGE:
108

PROCESSING CHANNELS
8

SIGNAL PROCESSING:
32 Bit Floating Point

Inputs

A/D DYNAMIC RANGE (DB):
108 dB

GAIN RANGE:
0 dB ÷ 45 dB

GAIN SELECTION:
0 dB ÷ 45 dB

STEREO LINE GAIN SELECTION:
0 dB ÷ 45 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-114 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
3 kohm

LINE:
4

LINE INPUT IMPEDANCE (KOHM):
11 kohm

LOW CUT:
20 Hz ÷ 1000 dB

MIC:
4

PHANTOM POWER +48V:
Yes

REMOTE CONTROLLED STORABLE GAIN:
Yes

STEREO LINE:
2

STEREO LINE INPUT IMPEDENCE (KOHM):
11 kohm

Outputs

AUX OUTPUT:
1

AUX SEND:
1

Outputs specifications

AUX OUT IMPEDANCE (OHM):
150 ohm

AUX OUT LEVEL (DBU):
19 dBu

D/A DYNAMIC RANGE (DB):
108 dB

MAIN OUT IMPEDANCE (OHM):
150 ohm

MAIN OUT LEVEL (DBU):
19 dBu

Compressors

RCF COMPRESSORS:
4 mono (6 preset)

EQ

DESCRIPTION:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.

INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving

Auxiliary sends

AUX:
1 PRE/POST

FX POST:
1

Internal Effects

MULTIFX INSERT EFFECTS:
1

SEND EFFECTS:
1

Mastering processors

MAIN OUT PROCESSORS:
1

USB audio

PLAY TRK:
2

Other features

FOOTSWITCH:
Yes

Electrical specifications

POWER SUPPLY:
Internal

Standard compliance

CE MARKING:
Yes

Physical specifications

CABINET/CASE MATERIAL:
PP Composite

COLOR:
Black or White

GRILLE:
Steel

HANDLES:
1 Top

Size

DEPTH:
460 mm / 18.11 inches

HEIGHT:
623 mm / 24.53 inches

WEIGHT:
22.2 kg / 48.94 lbs

WIDTH:
400 mm / 15.75 inches

Shipping informations

PACKAGE DEPTH:
581 mm / 22.87 inches

PACKAGE HEIGHT:
676 mm / 26.61 inches

PACKAGE WEIGHT:
29 kg / 63.93 lbs

PACKAGE WIDTH:
451 mm / 17.76 inches

Brand

RCF

RCF

Reviews

There are no reviews yet.

Be the first to review “RCF EVOX JMIX8” Cancel reply

You must be logged in to post a review.

Related products

  • Yamaha EMX2Yamaha EMX2

    Yamaha EMX2

    £390.00 Inc VAT
  • Yamaha EMX5Yamaha EMX5

    Yamaha EMX5

    £585.00 Inc VAT
  • Peavey Escort 6000Peavey Escort 6000

    Peavey Escort 6000

    £899.00 Inc VAT

Need professional advice or a bespoke solution for your requirement? Click Here

Contact us today for your church's audio visual solution!
DM Music Logo

We are the leading supplier and installer of Sound and Audio Visual systems to UK Churches. Since 1992 we have completed over 3,000 church installations. ...read more


Heritaqe AV

A division of DM facilitating non-Church related installation work. ...read more

We're here to help, call us for free support and advice: 01582 761122

Email us: support@dmmusic.com

Need it installed? We are an installation company!

Buy securely online with confidence

We offer training at your Church

Subscribe to our newsletter here

Busy day finishing up this bespoke stage 🔨📏 Busy day finishing up this bespoke stage 🔨📏 Trimmed in solid oak with built-in storage and floor boxes with angled socket plates - CNC machined in house 😍 #dmmusic #avinstaller #soundsystems #carpentry #stage #church #bespoke #custom #installation #churchav
Did you know? ❓ We work with expert carpenters t Did you know? ❓ We work with expert carpenters to design and build totally bespoke consoles to suit every PA, AV or streaming requirement 📝🔨

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #lumens #magewell #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral #console #rack #equipment #yamaha #carpenter #blackmagic #blackmagicdesign
Whatever your live-streaming requirement is, our p Whatever your live-streaming requirement is, our project managers will work with you to find the perfect solution!

Pictured is a portable multi-camera system which we installed in Wilton, Wiltshire towards the end of 2020.

Cameras - @bolintechnology
Vision mixer - @roland_uk
Camera controller - @marshall_usa
Streaming encoder - #magewell

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #bolin #marshall #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral
We recently installed PA, AV and streaming systems We recently installed PA, AV and streaming systems as part of a major refurbishment project for a church in Guildford.

This included professional products from @allenandheath @roland_uk @zero88 @birddog_gear @kramerelectronicsltd @yamaha_proaudio_official @lgcommdisplays @surgexav and many more!

Bespoke operator consoles designed and built in-house by @dmmusicltd

#proav #installation #audiovisual #bespoke #consultants #guildford #dmmusic
Recently installed acoustic wall and ceiling panel Recently installed acoustic wall and ceiling panels.

#churchinstallation #churchinstall #acousticpanels #acoustictreatment #artnovion #soundsbetter
Recently installed discreet PTZ camera with custom Recently installed discreet PTZ camera with custom bracket.

#churchstreaming #churchinstall #churchinstallation #churchav #ptzcamera
More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT. More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT.
It’s great to be installing so many more PTZ cameras to help churches live stream their services.

#livestreaming #churchonline #churchlivestream #churchav #ptzcamera #churchavinstallation
If you’re thinking about streaming your church s If you’re thinking about streaming your church services take a look at our ‘Before You Start Streaming’ Guide for some advice on how to approach it. Link in bio.
#Churchstreaming #livestreamingchurch #livestreamingchurchservice #churchlivestream #churchlivestreaming #churchaudiovisual
Another successful DM audio-visual installation in Another successful DM audio-visual installation in a new build London Church. The @martinaudio CDD range helped us overcome the audio challenges.  #churchsoundsystem #churchsound #churchav #martinaudio #martinaudiocdd
Follow on Instagram

Support Links

About Us

Contact Us

Privacy Policy & Cookies

Terms & Conditions

Delivery & Returns Info

Job Opportunities

© 2021 DM Music Ltd
DM Music Ltd, Unit 4, Riverside Estate, Coldharbour Lane, Harpenden, Hertfordshire, AL5 4UN | Registered in England & Wales No.06747770
0
