£550.00 Inc VAT

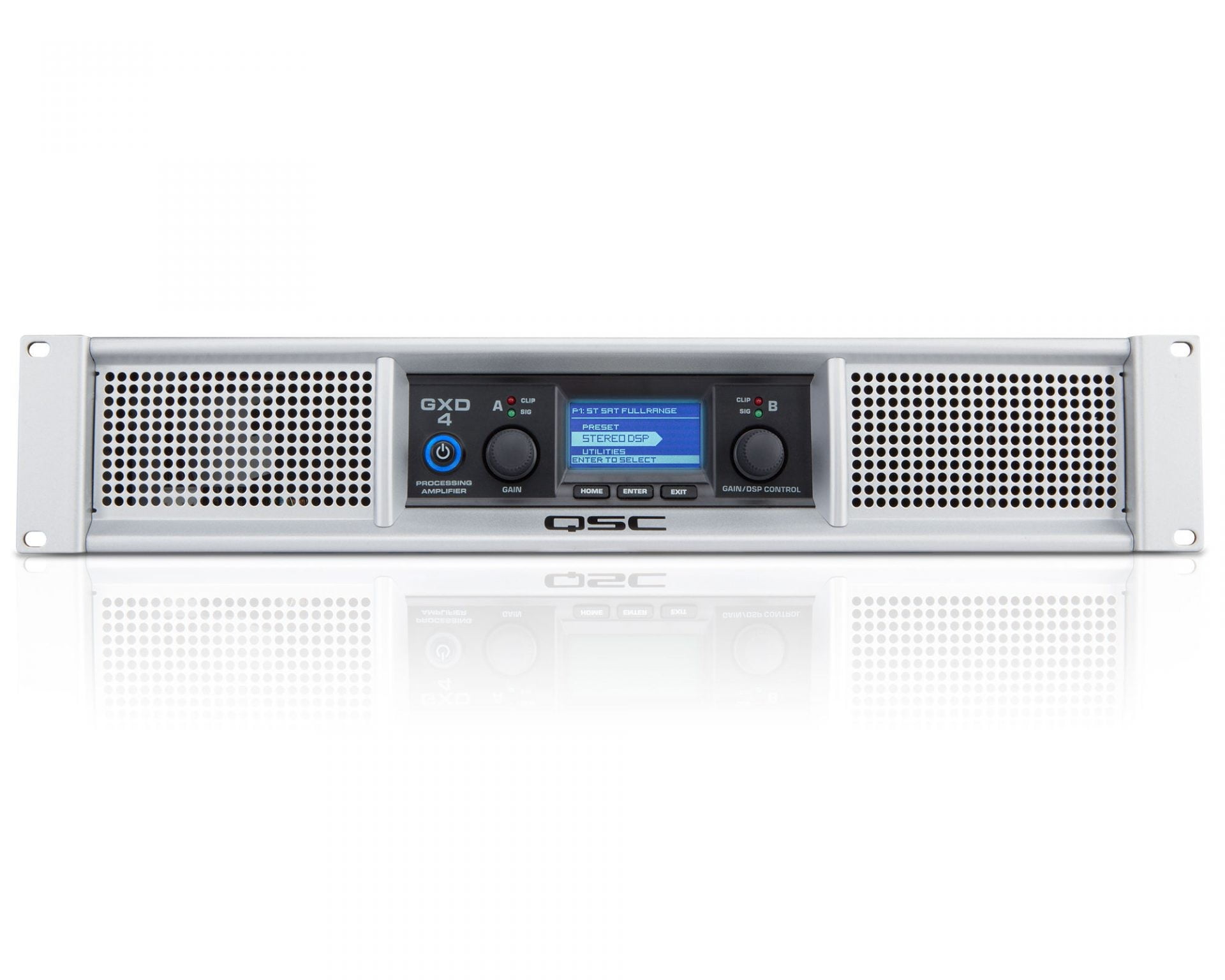

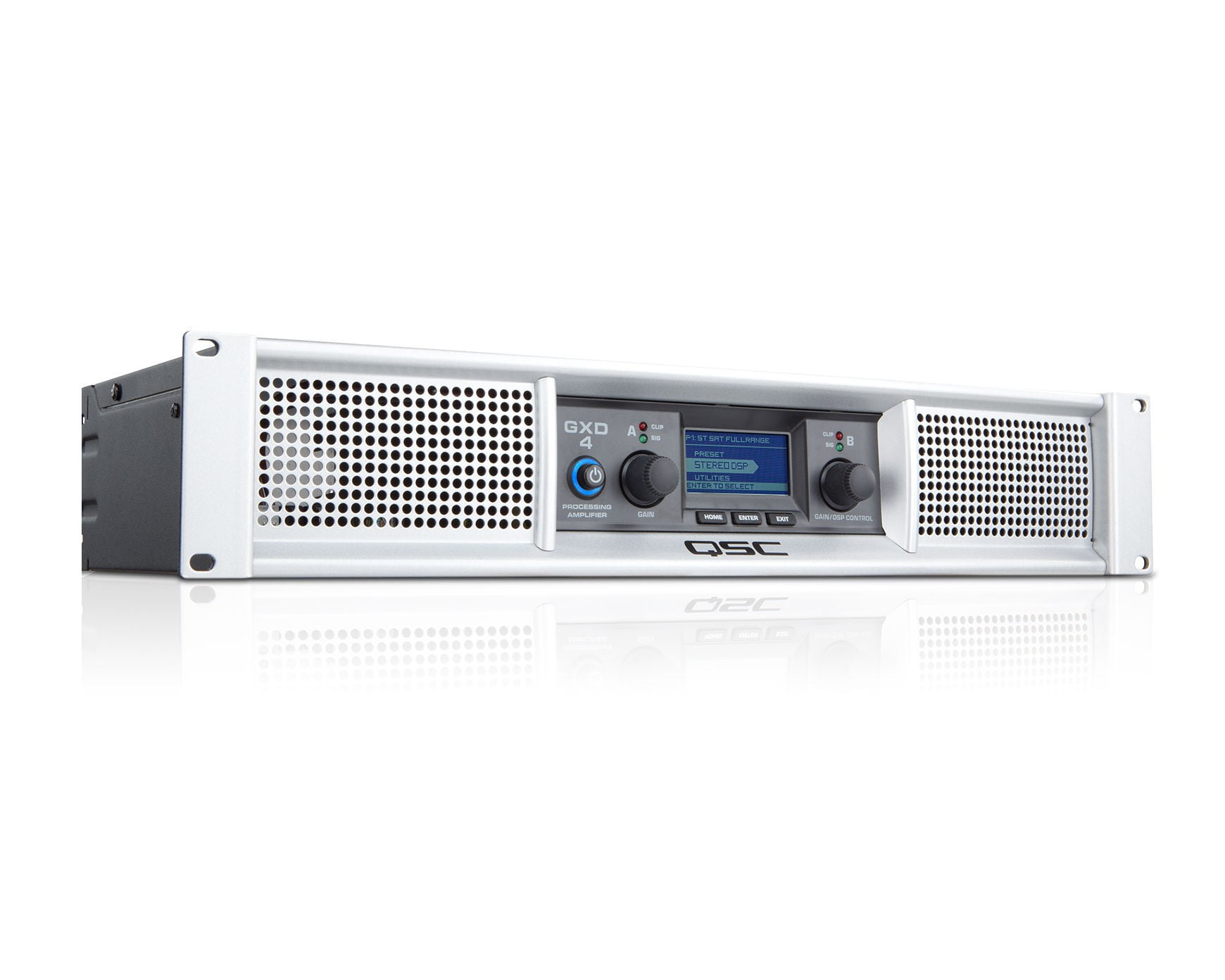

Power Amplifier with On-board DSP 2 x 600w @ 4ohms (2U)
GXD Series amplifiers are ideal for entertainment and production applications requiring performance and the convenience of integral signal processing. The hallmarks of the QSC brand – professional audio quality, engineering and manufacturing focused on long-term reliability – are all intrinsic to GXD. Add contemporary styling, multiple routing options, light weight, digital signal processing and advanced protection circuitry, and the GXD Series clearly represents real value – something everyone can use.
The GXD series is optimized for use with 8 and 4 ohm loudspeaker loads. GXD amplifiers deliver just the right amount of power to the most popular speakers used by entertainers and production professionals.
The GXD amplifiers are unlike other amps in this category that provide little more than a front panel screen to control the same functions that have been under rear-panel, DIP switch control for decades. The GXD amps bring full-function loudspeaker processing capability to a new price point with all the processing necessary to get the most from a loudspeaker system. The DSP section includes High and Low-Pass filters (24dB LR), 4-band parametric equalizer, signal alignment delay, and RMS/Peak speaker protection limiting. Twenty presets for selected typical systems are provided as generic “starting points” are included.
The most common cause of loudspeaker failure is amplifier clipping. The digital limiter used in the GXD amplifiers is set to prevent the amplifier from being driven into clipping while delivering the maximum usable output. In addition to amplifier limiting it also provides smart speaker protection by simply setting the loudspeaker’s continuous power and impedance (4Ω and 8Ω), and selecting whether Mild, Medium or Agressive protection is desired.
8Ω dynamic, both channels driven: 600 Watts
4Ω dynamic, both channels driven: 800 Watts
8Ω continuous, both channels driven: 400 Watts
4Ω continuous, both channels driven: 600 Watts
Distortion (typical) 1 kHz at full rated power: < 1% THD
Signal to Noise (A-weighted, 20 Hz – 20 kHz): 100 dB
Input Sensitivity: 1.2 Vrms, 3.9 Vrms
Voltage Gain (8Ω): 33.5 dB
Output Circuitry: Class D
Frequency Response (20 Hz – 20 kHz): 0.7 dB, -0.8 dB
Dynamic Headroom (4Ω): 1.25 dB
Damping Factor: 100
Input Impedance (Ω): 20k (balanced), 10k (unbalanced)
Maximum Input Level: 23.5 dBu

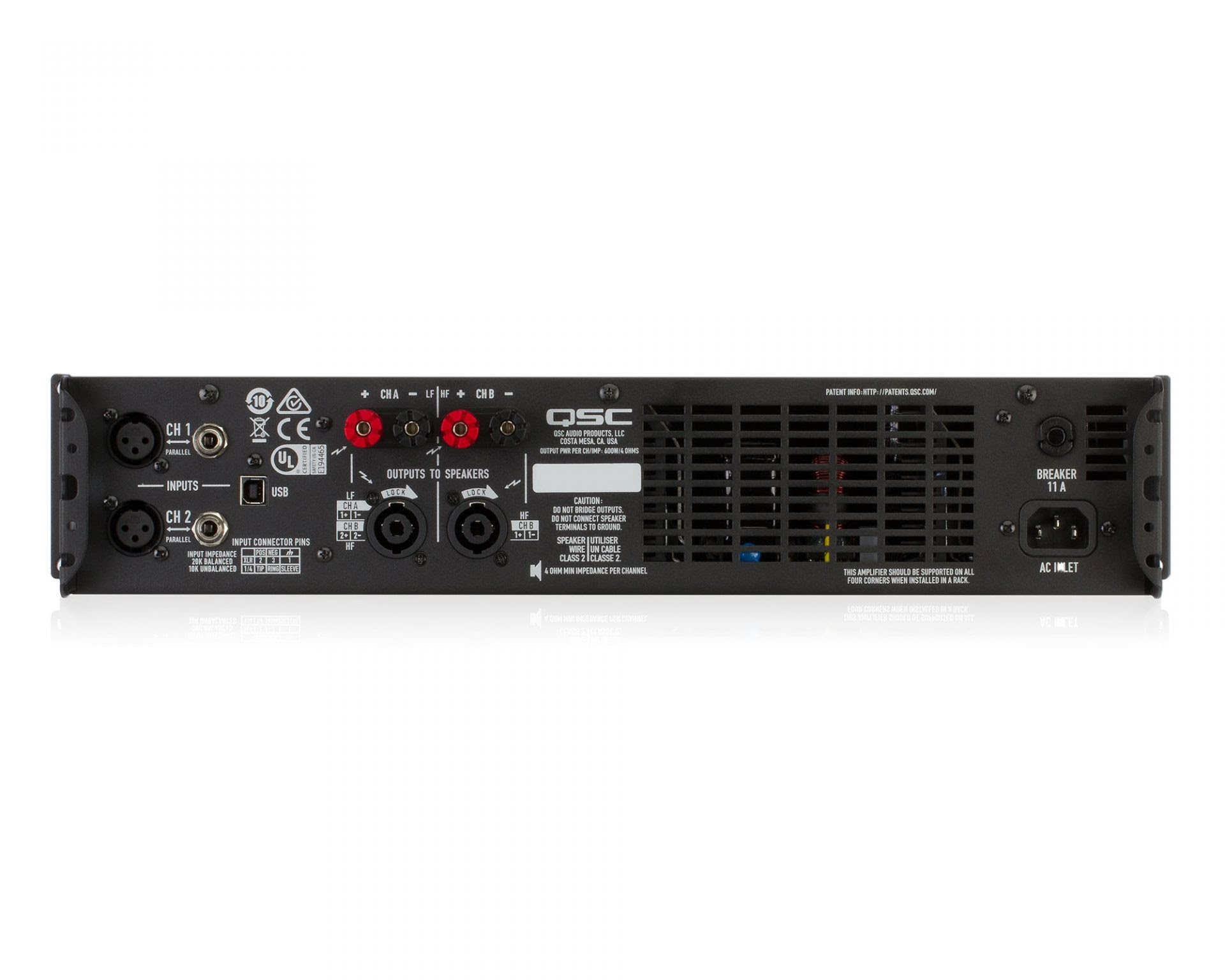

Input Connectors (each channel): 3-pin XLR/F / 1/4″ TRS, balanced
Output Connectors (each channel): NL4 (Channel 1 – 1 /-, Channel 2 – 2 /-), binding posts
Amplifier and Load Protection: Short circuit, open circuit, thermal, RF protection, Load protected against DC faults
Dimensions (HWD): 3.5″ (2 RU) x 19″ x 10.2″ (89 mm x 483 mm x 259 mm)
Weight (Net): 11.3 lb (5.1 kg)
Weight – Shipping: 15.4 lb (7.0 kg)
Agency Approvals: UL, CE, RoHS/WEEE compliant
Carton and Contents: Power cable, and quick start guide
