Martin Audio IKON iK81

Call For Price

High Power, Eight-Channel Class D Amplifier

• Eight channels of efficient Class D amplification
• Very high power density in 2U rack height
• 10,000 Watts total power output
• High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
• Switch mode power supply

Martin Audio
Category: SKU: AM/POW/MAR06

The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions. Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features.

Dante digital audio network inputs are also provided for digital audio distribution and control. Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in the WPM line array.

The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.

FEATURES

• Eight channels of efficient Class D amplification
• Very high power density in 2U rack height
• 10,000 Watts total power output
• High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
• Switch mode power supply
• Global mains operation, 85V to 240V auto-sensing
• Intuitive, user-friendly, front panel interface
• Analogue, AES3 and Dante™ digital audio network inputs
• Ethernet network for system control and monitoring via Martin Audio VU-NET™ software application
• Comprehensive protection and monitoring functions

APPLICATIONS

• Dedicated system amplifier for the Wavefront Precision Series
• Versatile multi-channel amplification for Martin Audio loudspeaker systems

GENERAL
TYPE Eight-channel Class D amplifier
POWER OUTPUT (*)
  • 1250W into 2Ω
  • 1250W into 4Ω
  • 1250W into 8Ω
  • 2500W bridged per channel pair, 4Ω or 8Ω
CV LINE OUTPUT (*)
  • 625W, 25V line
  • 1250W, 70V line
  • 1250W, 100V line
DIGITAL SIGNAL PROCESSING 96kHz/48kHz DSP on all inputs and outputs
COOLING Dual vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F)

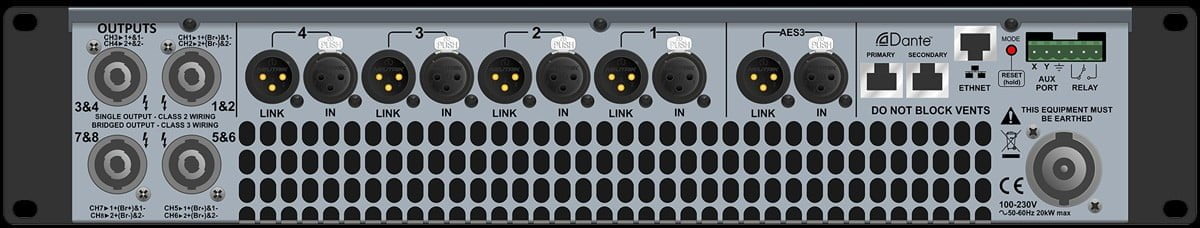

AUDIO INPUTS/OUTPUTS
ANALOGUE IN/LINK (4 CHANNELS)
  • 4 x female
  • 4 x male Neutrik™ XLR
ANALOGUE INPUT IMPEDANCE 20kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL +20dBu
AES3 IN/LINK (2 CHANNELS) 1 x female, 1 x male Neutrik™ XLR, balanced
DANTE™ (4 CHANNELS) 2 x shielded RJ45, primary and secondary
AMPLIFIER OUTPUTS 4 x Neutrik Speakon™ NL4
AUDIO PERFORMANCE
DYNAMIC RANGE
  • >113dBA, analogue input
  • >114dBA AES/Dante™ input
FREQUENCY RESPONSE 7Hz-30kHz (‐2.5dB points, 4Ω load)
TOTAL HARMONIC DISTORTION <0.05% typical @ 1kHz, 4Ω load
SLEW RATE >60V per microsecond
DAMPING FACTOR >800 at amplifier output, ref 8Ω
CONTROL AND MONITORING NETWORK
PROTOCOL Ethernet
CONTROL APPLICATION Martin Audio VU-NET™
DIGITAL SIGNAL PROCESSING
SAMPLE RATE 96kHz (48kHz for FIR filter implementation)
PHYSICAL INPUTS
  • 4 x analogue
  • 2 x AES
  • 4 x Dante™ inputs routable to four DSP drive modules
DRIVE MODULE INPUT DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters
DRIVE MODULE OUTPUT DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters
POWER SUPPLY
TYPE High performance Series Resonant
AC INPUT OPERATING RANGE 85 – 240V ~ AC, 47 – 63Hz
MAINS INRUSH CURRENT 6A at 115V, 12A at 230V (max for <10ms)
MAINS CONNECTOR Neutrik 32A Powercon™
PHYSICAL
DIMENSIONS (W) 482 x (H) 2U/88mm x (D) 441mm
(W) 18.98in x (H) 2U/3.46in x (D) 17.35in
(incl handles and optional rear support)
WEIGHT 12.5kg (27.5lbs)
